| Price: | US $ 5/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | Medium Pressure |
Power: | manual,pneumatic,electric,actua | Material: | Stainless Steel | Temperature of Media: | Medium Temperature |
Media: | Gas,oil,water,acid,caustic | Port Size: | dn10 | Place of Origin: | China (Mainland), |

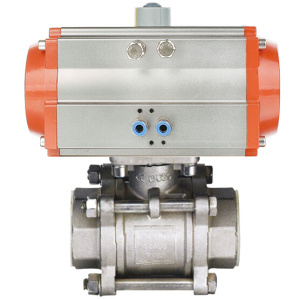

Model Number: | Q41F | Brand Name: | WeiQiu / OEM | name: | stainless steel pneumatic 2PC flange ball valve made in China |
certification: | CE ISO9001 | Connection: | Thread End | Package: | as your request |
Delivery time: | 10 days | OEM: | available | MOQ: | 2 pcs |
Size: | DN6-DN100 |
MATERIAL LIST | ||||||
| No | Part Name | Material | Q'TY | |||
| 1 | Body | CF8M | 1 | |||
| 2 | Bonnet | CF8M | 1 | |||
| 3 | Ball | SS316 | 1 | |||
| 4 | Seat | PTFE/RPTFE | 2 | |||
| 5 | Gasket | PTFE | 2 | |||
| 6 | Stem Seal | PTFE/RPTFE | 1 | |||
| 7 | Stem | SS316 | 1 | |||
| 8 | Packing | PTFE | 1 | |||
| 9 | Packing Gland | SS304 | 1 | |||
| 10 | Bellevile Washer | SS301 | 2 | |||
| 11 | Spring Washer | SS301 | 1 | |||
| 12 | Pin Nut | SS304 | 2 | |||
| 13 | Handle Sleeve | SS304 | 1 | |||
| 14 | Spring Washer | SS301 | 1 | |||
| 15 | Handle | SS304 | 1 | |||
| 16 | Stop Pin | SS304 | 1 | |||
| 17 | Nut | SS304 | 1 | |||
| 18 | Locking Device | SS304 | 1 | |||
DIMENSION LIST | ||||||||||||
| NPS | d | E | d1 | d2 | F | G | H | H1 | H2 | L | W | ISO5211(K/1) |
| 1/4 | 11.5 | 139 | 6 | 6 | 9 | 1/4"NPT or BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | FO3/FO4 |
| 3/8 | 12.5 | 139 | 6 | 6 | 9 | 3/8"NPT or BSP | 38.6 | 6.6 | 73.6 | 65 | 15 | FO3/FO4 |
| 1/2 | 15 | 139 | 6 | 6 | 9 | 1/2"NPT or BSP | 38.6 | 6.6 | 73.6 | 65 | 16 | FO3/FO4 |
| 3/4 | 20 | 139 | 6 | 6 | 9 | 3/4"NPT or BSP | 46.15 | 7.1 | 80.15 | 74.6 | 17 | FO3/FO4 |
| 1 | 25 | 165 | 6 | 7 | 11 | 1"NPT or BSP | 56.6 | 10.9 | 95.4 | 88.5 | 21 | FO4/FO5 |
| 1-1/4 | 32 | 165 | 6 | 7 | 11 | 1-1/4"NPT or BSP | 61 | 10.9 | 99.8 | 102 | 22 | FO4/FO5 |
| 1-1/2 | 38 | 215 | 7 | 9 | 14 | 1-1/2"NPT or BSP | 77.5 | 13.9 | 126.3 | 110 | 22.5 | FO5/FO7 |
| 2 | 49 | 215 | 7 | 9 | 14 | 2"NPT or BSP | 85.2 | 13.9 | 134 | 125 | 24 | FO5/FO7 |
| 2-1/2 | 65 | 263 | 10 | 12 | 17 | 2-1/2"NPT or BSP | 108.7 | 16.8 | 166.7 | 160.7 | 31 | FO7/FO10 |
| 3 | 80 | 263 | 10 | 12 | 17 | 3"NPT or BSP | 117.4 | 18.1 | 175.4 | 175.4 | 34 | FO7/FO10 |
| Packaging Details: | stainless steel pneumatic 2PC flange ball valve made in China seaworthy package or as customer's requirement |
| Delivery Detail: | within 15days after client's payment, or as customer's request |
| Prod Model: | ACE-71517 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Stainless Steel |
| Connection Form: | Thread |
| Channel: | Straight Through Type |
| Application: | Household Usage |
