Home Valve Products 2PCS Pn16 316 Material Screwed End Pneumatic Ball Valve

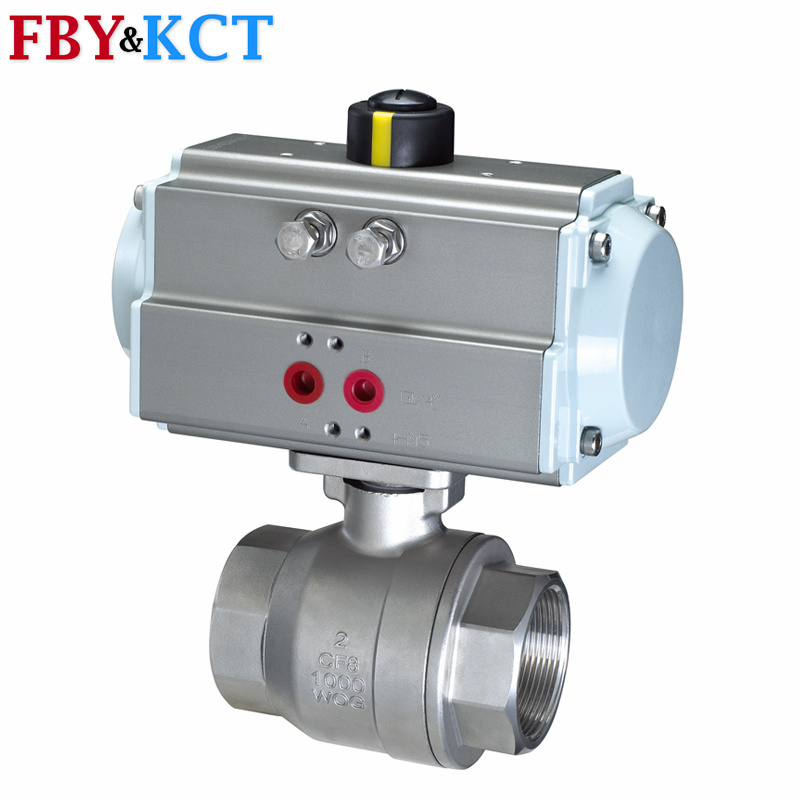

2PCS Pn16 316 Material Screwed End Pneumatic Ball Valve

2PCS Pn16 316 Material Screwed End Pneumatic Ball Valve
Price: US $ 20-400/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Product Explanation:

Pneumatic screwed Ball Valve

Applicable Standards

Working Pressure: 1000WOG

Temperature Range: -20~250° C

Suitable medium: Water, Oil, air and some Corrosive liqid

Thread type: G. NPT. BSPT. BSP. DIN259/2999
DN(inch) ΦD L H H1 A W T ΦE1 ΦE2 P ΦU1 ΦU2
1/4" 10.6 64 42 72 9 135 32 36 42 9 6 6
3/8" 12.7 64 42 72 9 135 32 36 42 9 6 6
1/2" 15 68 42 72 9 135 32 36 42 9 6 6
3/4" 20 73 49 80 9 135 35 36 42 9 6 6
1" 25 85 58 90 11 170 42.5 42 50 11 6 7
1-1/4" 32 94 63 95 11 170 47.5 42 50 11 6 7
1-1/2" 38 105 71 106 14 200 52.5 50 70 14 7 9
2" 50 125 78 113 14 200 62.5 50 70 14 7 9
2-1/2" 65 155 101.5 150 17 300 77.5 70 102 17 9 11
3" 76 173 109 159 17 300 86.5 70 102 17 9 11

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage
Function: Pneumatic Ball Valve
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.

In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.

KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.

According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.

Welcome Friends to contact us from all over the world to establish business with us.
