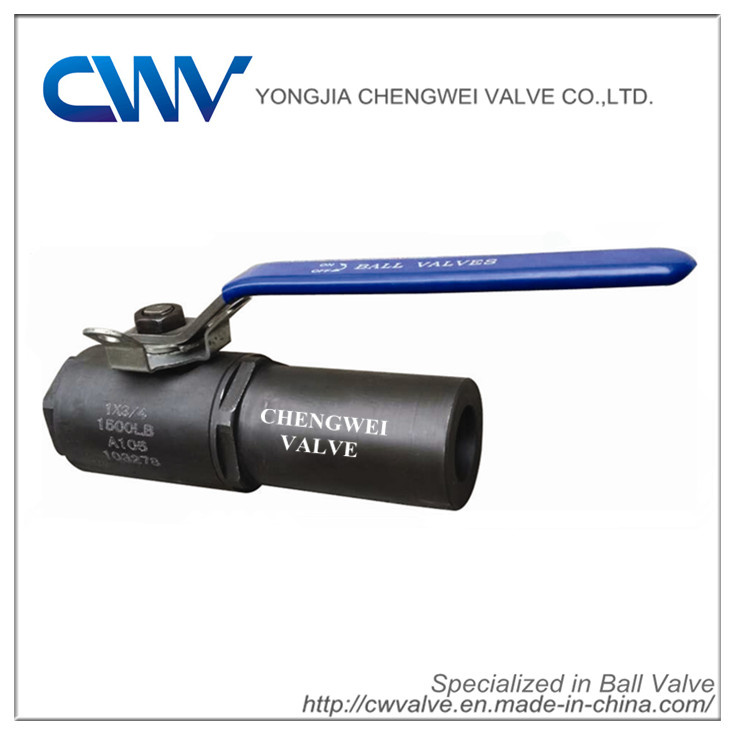

2PCS Sw/NPT Reduce Bore Forged Steel Ball Valve

2PCS Sw/NPT Reduce Bore Forged Steel Ball Valve
Price: US $ 100-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P
ONE SIDE WITH EXTENDED PIPE END 2PCS FORGED STEEL BALL VALVES (NPTXSW)

Size
: 1/
4~4"(DN8~DN100)

Rating : 150LB~2500LB (PN16 ~ PN420)

Connection:NPT, SW, PE

Working Temperature:-46~425ºC

Seat:PTFE,RPTFE,NYLON,MOLON,PEEK,DEVLON,POM,PCTFE,PPL,
STL NI60,STL NI55,STL20#,STL6,WC,TCC

Material:
A105,LF2,F304,F316,F316L,F304L,F321,F51,F53,F55,F60,F6a, 20 Alloy,
C61900,C63200,C83600,C37700,Inconel625,Inconel825,Monel400,Monel500,H.C-276ect.


Application Specifications:
1.Design and manufacture conform to BS5351;MSS SP-118
2.Socket welded ends conform to ANSIB16.11;JB/T1715
3.Screw ends conform to ANSI B1.12.1;JB/T7306
4.Butt-welded ends conform to ANSI B16.25;JB/T12224
5.Test and inspection conform to API598;GB/T13927;JB/T9092
6.Material conform to ANSI/ASTM

Features:
1.Three, Two-Pieces Forged Body
2.Floating Type
3.Blow-out Proof Stem
4.Fire Safe Design
5.Anti-Static Device
6.Interlocking Device



In order to meet different needs of customers,we provide two series of ball valves,full bore and reduced bore ball valves.The channel inner diameter of full bore ball valves is consistent with the inner diameter of pipeline,which can not only minimize the fluid resistance but also facilitate pipeline cleaning.The fluid resistance of necked bore ball valves is much less than that of the globe valve with the same caliber while its weight is 30% lighter than ball valves with the same caliber.As a result,it can effectively reduce both the production cost and price,and is relatively widely used.





We welcome all the world customers to contact us for more cooperation.

   CHENGWEI VALVE will be one of your best parters in China.
Prod Model: Q6/11-F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Welding
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Household Usage
Material: A105
Chengwei valve is located in the Anfeng Industrial Zone, Oubei Town, Wenzhou City, Which is "Hometown of Pump and Valve in China". It's a professional valve manufacturing enterprise, combined with scientific research, manufacturing and sales. Our company, adhering to business concept of "Taking quality as the life, and meeting customer's requirements as the priority", provides customer's with outstanding quality, ideal price, complete varieties and timely delivery and excellent after-sales service. As a result, our products have been well-received by customers, and sold to domestic and foreign markets.

Our company with excellent equipment, strong technical force, complete testing facilities, widely applies GB, API, ANSI, DIN, BS and JB manufacturing standard for its products. Main products: API forged steel valve series, forged steel ball valves, Y-strainer, gate valves, globe valves, check valves and other products, which are widely used in petroleum, metallurgy, chemical, electric power, mining, food, pharmacy, construction, environmental protection, paper manufacturing and other industries.

Our company will continue to actively develop new products through new technologies, new processes, and new materials, to provide quality valve products with first-class quality and perfect price to customer. Valve Materials: A105, LF2, F304, F304L, F316, F316L, F51, F53, F55 etc.

We welcome clients both from home and abroad visiting, guiding and business talking. We sincerely hope a long term cooperation with you. CHENGWEI VALVE will be one of your best parters in China.
