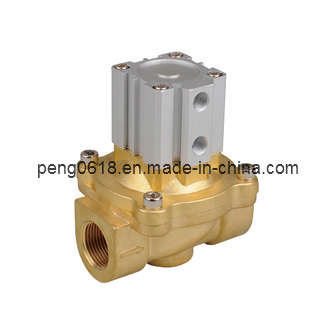

2Q Series Air Control Two-Way Valve
Model 2Q200-20 2Q200-25 2Q350-40 2Q500-50
Working Medium Air, Water, Oil, Gas
Motion Pattern Direct Drive Type
Aperture of Flow Rate 22 22 35 50
CV Value 12 12 24 48
Joint Pipe Bore G3/4" G1" G11/2" G2"
Operation Fluid Viscosity 50 CST (Below)
Working Pressure Rang 0~0.7MPa
Max. Pressure Resistance 1.05MPa
Control Pressure Rang 0.3~0.6MPa
Operating Temperature Rang -5~+100
Material of Body Brass
Material of Oil Seal PTFE
Control Joint Pipe Bore 2-G1/8" 2-G1/8" 2-G1/4" 2-G1/4"
2Q Series Air Control Two-Way Valve
|
Model |
2Q200-20 |
2Q200-25 |
2Q350-40 |
2Q500-50 |
|
Working Medium |
Air, Water, Oil, Gas |
|
Motion Pattern |
Direct Drive Type |
|
Aperture of Flow Rate |
22 |
22 |
35 |
50 |
|
CV Value |
12 |
12 |
24 |
48 |
|
Joint Pipe Bore |
G3/4" |
G1" |
G1 1 /2" |
G2" |
|
Operation Fluid Viscosity |
50 CST (Below) |
|
Working Pressure Rang |
0~0.7MPa |
|
Max. Pressure Resistance |
1.05MPa |
|
Control Pressure Rang |
0.3~0.6MPa |
|
Operating Temperature Rang |
-5~+100 |
|
Material of Body |
Brass |
|
Material of Oil Seal |
PTFE |
|
Control Joint Pipe Bore |
2-G1/8" |
2-G1/8" |
2-G1/4" |
2-G1/4" |
Our company Puremix Electro-Mechanical co ltd is a factory specialized in Pneumatic products and Hydraulic products like, Pneumatic fittings, Pneumatic valves, Solenoid valves, FESTO( SMC, AIRTAC, FESTO), Pneumatic cylinders and some Hydraulic quick couplings etc with good reputation in China for many years.
Our company imported CNC machines from Taiwan and Japan for machining the valve body, cylinder end covers, pistons, spools etc. And imported Gemany Siemens
System, with complete setof advanced computer testing equipment ande all keys seals are from Parker and Japan, Making a good definition for excellent quality. And devotes to continually developing new products, deeply improving current products, and obtaining reasonable margin to extend the market share. We are sure we are the right cooperator you are looking for in China.
