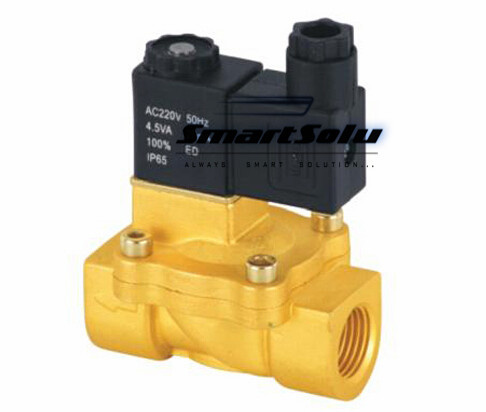

2V Series Solenoid Valve 2V130-15

2V Series Solenoid Valve 2V130-15
Price: US $ 0.3/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C

2V130-15

Working medium : air,water,oil
Motion Pattern : Guide Type
Type : Normal Close Type

Aperture of Flow Rate : 13 mm
Cv Value : 6.2/6.2/23/23
Joint Pipe Bore : 3/8" / 1/2" /3/4" /1"

Operation Fluid Viscosity : below 20 CST

Working Pressure : :0.5~7 kgf/cm2

Max.Pressure Resistance : 10.5 kgf/cm2

Operating Temperature Range : -10~100ºC

Voltage: DC12V,DC24V,AC24V,AC36V,AC110V,AC220V,AC380V

Voltage Range : ±10%

Protect Class:IP65

Power Consumption:AC:7VA/60Hz, 9VA/50Hz, DC:6W

Insultion:FClass

Material of Body : Brass

Material of Oil Seal : NBR

Shortest Excitation Time : 0.05 second

SMART PNEUMATIC CO LTD belongs to HUAHUI GROUP CHINA, which  is specialized in manufacturing all kinds of hydropneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
                                                                                                                                                                                                        SMART PNEUMATICS' sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System."
                                                                                                                                                                                                          SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.

                                                                                                                                                                                                                  SMART PNEUMATIC hopes to work together with you, developing in parallel!

Prod Model: 2V130-15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Joint Pipe Bore: 3/8" / 1/2" /3/4" /1"
CV Value: 6.2/6.2/23/23
Working Pressure: 0.5~7 Kgf/Cm2
Protect Class: IP65
Material Of Body: Brass
Connection Form: Thread
Type: Direct Acting
Valve Structure: Pilot Piston Structure
Power Supply: AC Solenoid Valve
Application: Household Usage
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.

SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.

SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "

SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.

SMART PNEUMATIC hopes to work together with you, developing in parallel!
