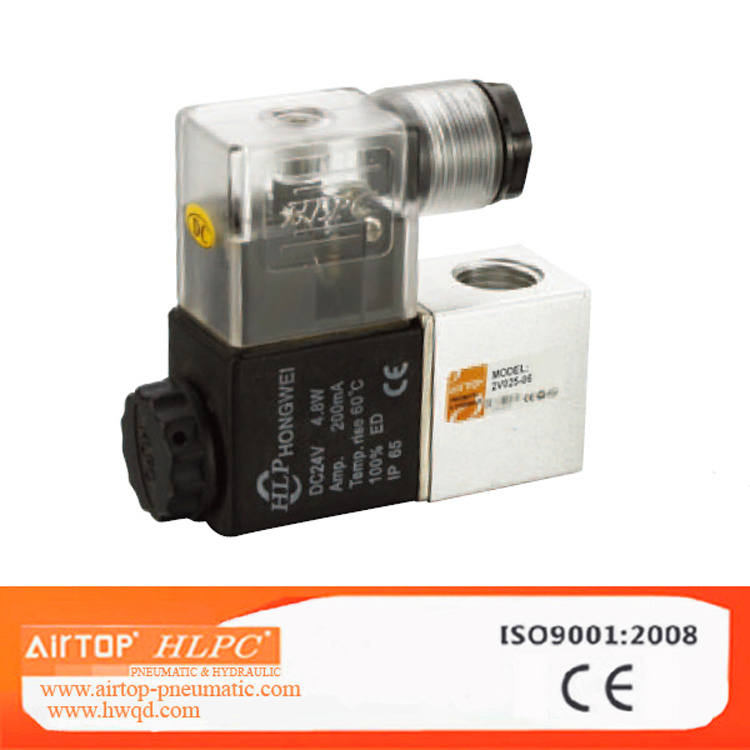

2V025 Series Pneumatic Solenoid Valve/Directional Valve
| Price: |
US $ 5-20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Ordering Code:
2V025 - 06 - B - AC220V - W
2V025: Two-position Two -way Solenoid;
06: Joint Pipe Bore M5: M5 06: 1/8 08: 1/4;
B: Connecting Type Blank: Pipe Connection Type B: Plate Connection Type;
AC220V: Standard Voltage DC12V DC24V AC24V 50HZ/60HZ AC110V 50HZ/60HZ AC220V 50HZ/60HZ AC380V 50HZ/60HZ;
W: Wiring Form Blank: Standard Connector LD: Brown with Lighting Connector LD1: White with Lighting Connector W: Lead Wire Type;
Model: 2V025-06 2V025-08;
Working Medium: 40 Micron Filtered Air;
Motion Pattern: Direct Drive Type;
Ambient Temperature: -10~+60º C;
Gas Temperature: 5~60º C;
Air Outlet Diameter: 1.0mm;
Lubrication: Not Necessary;
Working Pressure: 0~0.8MPa;
Max. Pressure Resistance: 1.2MPa;
Power Consumption: AC: 5.5VA DC: 4.8W;
Protect Class: IP65;
Power Connection Form: Lead Wire or Connector type;
Material of body: Aluminum alloy;
Highest Action Frequency: 20 Cycle/Sec;
Voltage Range: ± 10%
Shortest Excitation Time: 0.05Second.
| Prod Model: |
2V025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Direct Acting |
| Application: |
Industrial Usage |
| Power Supply: |
AC or DC |
