2V025 Series Pneumatic Solenoid Valve
| Price: |
US $ 2.00/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Regis's all-new directional valves are available in two-way, three-way configurations in port sizes from M5 to 1/2". Select either a direct-acting poppet or solenoid-controlled pilot operated balanced spool design. Spool valves are body ported but can be bolted to a parallel circuit manifold.
These electronic valves offer high flow in a small package, and are constructed of aluminum, stainless steel and thermoplastic materials. The four-way valves are also available in 3 position versions with either pressure center, closed center or exhaust center spool options.
Materials: Aluminum, Stainless Steel, Thermoplastic
Working Pressure: Vacuum to 1.0Mpa (direct acting only); 0.15 to 0.8Mpa (spool valves)
Response Time: Less than 20 ms
Mounting: Manifold standard.
Manual Override: Locking or non-locking
Electrical Connection: DIN terminal with LED Indicator or Wire Lead
Temperature Range: 0 to 65°C (32° to 150°F)
Seals: NBR VITON

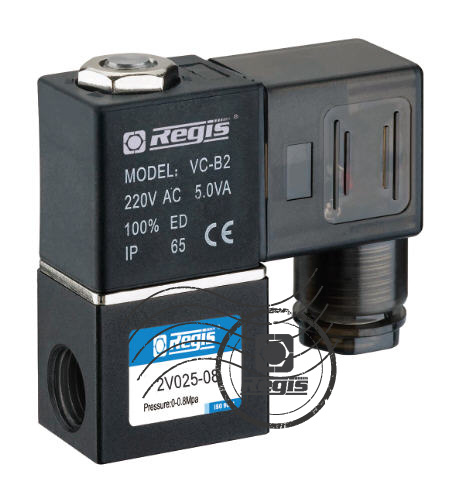

2V025Series Valve (2V025-06, 2V025-M5,2V025-08)
The solenoid valves are suitable for shut off air flow in pneumatic control systems.The solenoid operated valves can be mounted in line .The valves are used where automatic return of valve on electrical power failure is required.
|
Model Number |
2V025-08 |
3V1-06 |
|
Working Medium |
(40) Air (40M filteration) |
|
Acting Mode |
Direct type |
|
Working temperature |
-5~60 |
|
Port size |
1.2mm |
|
Range of working pressure Kgf/cm2 |
0~8.0Kgf/cm2 |
|
Power consumption |
AC220V:2.0VA DC24V:3.0W |
|
Protective class |
IP65(DIN40050) |
|
Max acting frequency |
Ten times per second |
|
Insulativity |
F |
|
Voltage range |
-15%~+10% |
|
Excitation |
0.05 |
| Prod Model: |
2V025-06, 2V025-M5, 2V025-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Size: |
1/8,1/4 |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Water Industrial Usage |
| Material: |
Cast Aluminium |
Location and History
Regis' Manufacturing plant is located in Ningbo city, Zhejiang Province. Our factory was built in the spring of 1999 by Mr. Jason Yuan. After 15 years development, Regis has already grown up from just a hardware producer to a modern and famed pneumatic manufacturer in China.
A Wide Range of Products and Services
Its current catalogue of standard products includes more than 1, 000 items including air cylinders, solenoid valves, air source treatments, couplings, connectors and other related accessories, all of them designed to meet industrial needs in handling all kinds of gases and liquids such as water, air, steam, oils refrigerants, oxygen, liquid nitrogen, corrosive products, among others. Laboratories, petroleum, engineering, building, food and beverage, refrigeration, heating, automobile, metallurgical, textile and petrochemical are some of the industries that testify to the quality of each of Regis' Products.
Achievement and Honor
Regis ' Sales performance has exceeded 20 million us dollars in 2010. We have been awarded the medal of the quickest developing automation industry by government.
The excellence of all our products, proven by several national and international standards and quality control boards, is guaranteed by the total quality program enforced throughout the company.
They function with high tech machines and production tools as well as computerized production management system. All steps in a product development, from design onto testing, production, logistics, and finally delivery, are regularly subject to rigorous quality controls.
Our Ambition
To be the best pneumatic manufacturer in China
Regis ' Products are spread into 98 Countries all over the world. Now our aim is to compete with the world first class in the next 10 years. We plan to set 800 sales distribution throughout the world which can tight knit network enables our customers to benefit from high accessibility and short delivery times. The supreme ambition is to strengthen the ability to give the best service possible
