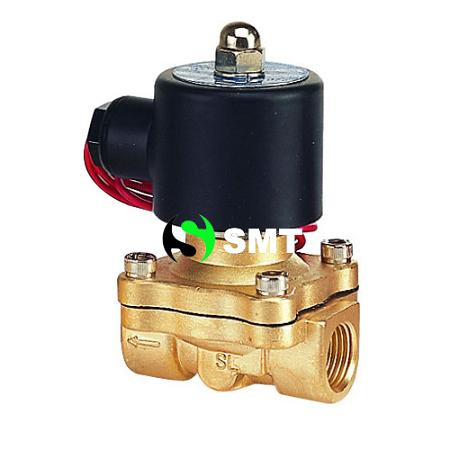

1. Direct lifting diaphragm construction;
2. Open from zero bar for low pressure system use
3. High frequency for flying lead coil.
Medium: Air, gas, Water, Oil, Hydraulic fluid, Petroleum, etc.
Temperature:
NBR: -10 ~ 80
EPDM: -10 ~ 120
VITON: -10 ~ 120
Pressure: 0.0 ~ 1.0MPa
Body: Brass or Stainless steel
Port size: 3/8\1/2\3/4\1\11/4\11/2\2
Port Thread: BSPP, BSPT, NTP, Flange, UNF, M8X1
Orifice(mm): DN 12\15\20\25\32\40\50
Voltage: DC: 12V, 24V, 36V
AC: 220/230V, 110/120V, 24V(50/60Hz)
Coils: Y32B, 14VA(AC), 14W(DC), IP65, 100%ED
Y42B, 35VA(AC), 30W(DC), IP65, 100%ED
Why choose us?
(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.
(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.
(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.
(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
| Port Size | Orifice | Cv | Min Pressure | Max Pressure | Seals Material | Body Material | Valve Body | Coil |
| AC(14VA) | DC(14W) |
| 3/8″ | 12 | 4.5 | 0.0MPa | 1.0MPa | 1.0MPa | NBR,EPDM,
VITON | Brass ,or Stainless Steel | 2W12 X X X | Y32B |
| 1/2″ | 15 | 4.5 | 0.0MPa | 1.0MPa | 1.0MPa | 2W15 X X X | Y32B |
| 3/4″ | 20 | 9.3 | 0.0MPa | 1.0MPa | 1.0MPa | 2W20 X X X | Y32B |
| 1″ | 25 | 12 | 0.0MPa | 1.0MPa | 1.0MPa | 2W25 X X X | Y32B |
| AC(35VA) | DC(30W) |
|
| 1 1 /4″ | 32 | 24 | 0.0MPa | 1.0MPa | 1.0MPa | 2W32 X X X | Y42B |
| 1 1 /2″ | 40 | 29 | 0.0MPa | 1.0MPa | 1.0MPa | 2W40 X X X | Y42B |
| 2″ | 50 | 48 | 0.0MPa | 1.0MPa | 1.0MPa | 2W50 X X X | Y42B |
| AC(28VA) | DC(20W) |
|
|
| 3/8″ | 12 | 4.5 | 0.0MPa | 1.0MPa | 1.0MPa | 2W12 X X X | EX1320 |
| 1/2″ | 15 | 4.5 | 0.0MPa | 1.0MPa | 1.0MPa | 2W15 X X X | EX1320 |
| 3/4″ | 20 | 9.3 | 0.0MPa | 1.0MPa | 1.0MPa | 2W20 X X X | EX1320 |
| 1″ | 25 | 12 | 0.0MPa | 1.0MPa | 1.0MPa | 2W25 X X X | EX1320 |
| AC(35VA) | AC(30VA) |
|
|
| F1 1 /2″ | 40 | 29 | 0.0MPa | 1.0MPa | 1.0MPa | 2W40F X X | Y42B |
| F 2″ | 50 | 48 | 0.0MPa | 1.0MPa | 1.0MPa | 2W50F X X | Y42B |
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
