| Price: | US $ 0.3/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 10/Piece |
| Pay Type: | L/C |

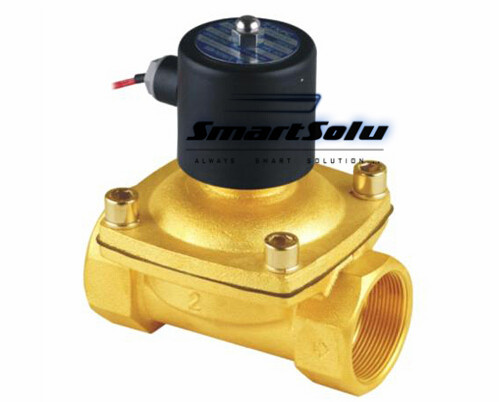

2W500-50
Working medium : air,water,oil,gas
Motion Pattern : Direct Drive Type
Type : Normal Close Type / Normal Open Type
Aperture of Flow Rate : 50mm
Cv Value : 48
Joint Pipe Bore : 2"
Operation Fluid Viscosity : below 20 CST
Working Pressure : Water/Oil :0~5 kgf/cm2 , Air /Gas:0~7 kgf/cm2
Max.Pressure Resistance : 10.5 kgf/cm2
Operating Temperature Range : -5~80ºC
Voltage: DC12V,DC24V,AC24V,AC36V,AC110V,AC220V,AC380V
Voltage Range : ±10%
Material of Body : Brass
Material of Oil Seal : NBR , EPDM , VITON
SMART PNEUMATIC CO LTD belongs to HUAHUI GROUP CHINA, which is specialized in manufacturing all kinds of hydropneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System."
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
| Prod Model: | 2W500-50 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of Oil Seal: | NBR , EPDM , Viton |
| CV Value: | 0.23 |
| Working Pressure: | 10kgf/Cm2 |
| Operating Temperature Range: | -5~80oc |
| Voltage: | DC12V,DC24V,AC24V,AC36V,AC110V,AC220V,AC380V |
| Voltage Range: | ±10% |
| Connection Form: | Thread |
| Type: | Direct Acting |
| Valve Structure: | Pilot Piston Structure |
| Power Supply: | AC Solenoid Valve |
| Application: | Household Usage |
