Quick Details
- Type: Valves
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: UW
- Brand Name: VPC
- body material: brass
- working terperature: -5~80ºC
- max pressure: 1.05Mpa
- acting type: direct acting
- seals: NBR or VITON
- type: normal closed/normal open
Packaging & Delivery
| Packaging Details: | inner box carton pallet |
|---|
| Delivery Detail: | 10~25 days |
|---|
Specifications

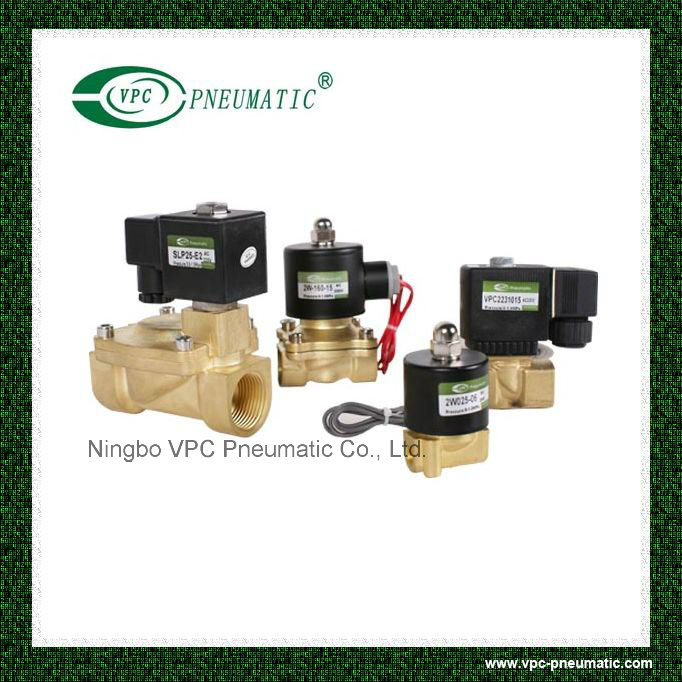

2W series big oriffice solenoid valve with high flow
2-way 2-position valve
oriffice:16mm-50mm
joint size:G3/8~G2 Summary:
2W series big oriffice solenoid valve with big oriffice type, thread size range from 3/8" to 2", oriffice size range from 16mm to 50mm, with thread pipe connection and flange connection types. Din connector type and flying leads type, anti-explosion and anti-water coil are available. The initial state for normally closed, normally open only for oriffice with 16mm, 20mm and 25mm. With the stable function and extensive application, 2W valve is popular with customers.
Model :
2W025-06 2W025-08 2W040-10 2WH012-06 2WH012-08 2WH020-10
2W160-10 2W160-15 2W2000-20 2W250-25 2W350-35 2W4000-40 2W5000-50
