2way 3/4'' Flow Control Valve

2way 3/4'' Flow Control Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 90/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Specification:
Size: 3/4''
Rated Voltage: DC5V, DC12V, DC24V, AC/DC7-35V, AC/DC110V-230V
Wiring control: CR201, CR202, CR301, CR302, CR303, CR401
Manual override: YES
Indicator: YES
Max. Working pressure: 1.0MPa
Body: Nickel plated brass
Actuator: Modified plastic
Internal diameter: 20mm
Torque: 2N.m
Protection class: IP67







Product Characteristics:
1. Has compact size with smart shape, Perform reliably, has long life time.
2. The transmission system adopt new technology and made of metal gears with high output torque
3. Multi-angle assembly, convenience for different space allocation requirements.
4. Floating seal structure, no leak, suitable for heavy dirt and long time no action occasion.
5. Can replace the solenoid valve in the conditions that the solenoid valve can not be worked.
6. Varity of control methods, can both recognize the remote signal and feedback signal to the intelligent unit
7. Motor & manual integration designed with the indicator.
8. High protection class, can be worked in moist conditions.
9. Passed CE certification and RoHS certification

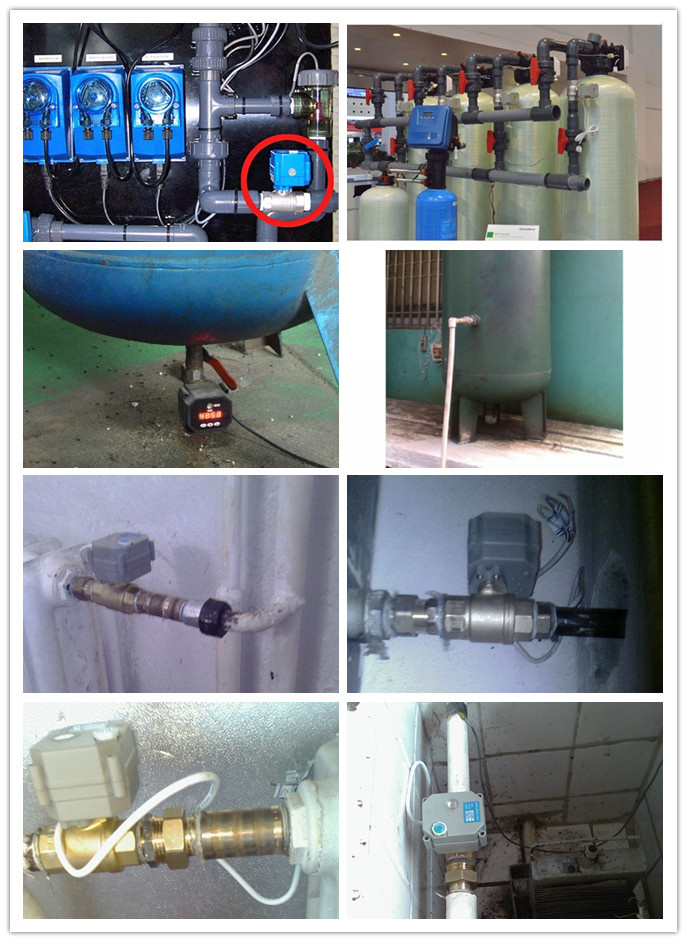

Suitable Application:
1. IC card water meters, heat energy meters, solar water heats instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water systems, Water heater, washing machine, AHW etc.
6. Air or geothermal heat pumps


Gneral Product Guide:
Actuator:
A20 Type Actuator for 2 way ball valve ( 1/2", 3/4", 1" 1-1/4'' )
A20 Type Actuator for 3 way brass ball valve ( 1/2", 3/4", 1'' )
A20 Type Actuator for 2 way , 3 way timer controlled drain valve ( 1/2", 3/4", 1" 1-1/4'' )
A100 Type Actuator for 2 way 304SS (1-1/4", 1-1/2", 2")
A100 Type Actuator for 3 way, L / T Port, 304SS valve (1/2", 3/4", 1" )

Valve Body: Brass ,Nickel Plated Brass, 304SS or 316SS (Specified on order)
Technical parameter:
Series Valve Size Actutor Torque Opetating time Working  Votlage  Max Power  Max Pressure Enclosure Medium Temperature Ambient Temperature Cable Length
A20   DN8,DN15,DN20,DN25 2N.M 5S/7S 5V,12V,24V,9-35V,110-230V 100mA 1.5 Mpa PI67   2Celsius~90Celsius " -15 Celsius~ 50 Celsius 0.5 M /1.5 m ( for selection)
Valve Size Material Thread Type Port Type Voltage (Power Supply) vs Control Type
BSPP BSPT NPT Full Port Reduced Port 5VDC 12VDC 24DC 9-24VAC/DC 9-35VDC 110-230VAC
DN8(1/4'') Brass X X CR2 01,
CR3 01,
CR3 02,
CR3 04,
CR5 01,
CR7 01,
CR7 02,
CR2 01,
CR2 02,
CR3 01,
CR3 02,
CR3 03,
CR3 04,
CR5 01,
CR7 01,
CR7 02,
CR7 03
CR2 01,
CR2 02,
CR3 01,
CR3 02,
CR3 03,
CR3 04,
CR5 01,
CR7 01,
CR7 02,
CR7 03
CR2 02,
CR3 03,
CR7 03
CR3 03,
CR7 03
CR2 02,
CR4 01,
CR5 02,
CR7 04
DN15(1/2") X X
DN20(3/4") X
DN25(1") X
DN32(1-1/4") X X
DN8(1/4'') Nickel Brass  X X
DN15(1/2") X X
DN20(3/4") X X
DN25(1") X X
DN32(1-1/4") X X

Prod Model: T20-N2-B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Control System Usage
Material: Nickel Plated Brass
TaizhouTonhe Flow Control Equipment Co., Ltd. is a professional manufacturer and exporter of electric control valves from 2008, We always pay high attention to the quality control and new products R&D. Specialized in motorized valves, electric fluid control valves, electric actuator, with intelligent design, manufacture, sales and technical service.

Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.

All along, the research unit, institute strong support and concerted efforts of all colleagues, continually improved products, innovation, and a number of products for thentility model patents, and we will always maintain the idea that the pursuit of perfection to develop more products for the world to intelligent control fluid. Mechanized production lines in operation, to secure stability and excellent product quality to meet customer requirements.

Personnel training, stability, is an important strategy of company' growth and development, we take the talent as our company greatest wealth.

Talent is the fundamental driving force of enterprise development, enterprise is also the cradle of talent, In order to make personal pursuit and enterprise development to be harmonious, we establish long term cooperation with the School of Continuing Education of Tsinghua University, Taiwan Jian-feng MBA Group, and other Group, Every year, we select a number of staff to go to training, learning, in order to achieve growth of employees and enterprise together.

We will uphold the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle, to establish a positive corporate image, enhance corporate cohesion, with a view to alliance with the community to reach a long-term cooperative relations of mutual trust and seeking common development, create brilliant.
