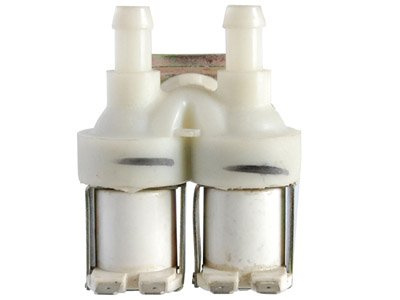

1. ITEM# XG_02006
2. Apply to: Washing machine, Dishwasher machine, Water dispenser, Drinking Fountain, Ice machine, solar water heater.
All kinds of water-saving device, Sanitary ware, Automatically drainage equipment etc.
3. Working Voltage: AC/DC, 6V/12V/24V/36V/110V/220V/240V
Power grade: 4W, 5W, 6W, 7W, 8W (customize available)
4. Rated operational voltage
DC: DC6V, DC9V, DC12V, DC24V, DC36V, DC110V, DC220V(Detection use voltage lower 15%)
AC: AC6V, AC9V, AC12V, AC24V, AC36V, AC110V, AC220V etc. (Detection use voltage lower 15%)
5. Hydrostatic pressure: 0.02-1MPa.
6. Application of fluid: Public water used
7. Flow characteristics
0.02MPa > 3L/min
0.25mPa > 15L/min
0.8mPa > 20-25L/min
8. Medium Temperature: 0-100° C (not freezed)
9. Service life: 100, 000 views
10. Influent & Outfall: G3/4", 1/2", 1" & (customize available)
11. Structure: Pilot-start the performance is good.
12. Other: Customer special requirements can be designed.
13. Small quantity available
|
Valtage (V) |
Power (W) |
current (A) |
DC resistance(Ω ) |
|
DC12 |
4.00 |
0.33 |
42± 0.9 |
|
DC12 |
4.50 |
0.39 |
30± 0.6 |
|
DC12 |
5.00 |
0.42 |
28± 0.6 |
|
DC12 |
6.00 |
0.52 |
22± 0.5 |
|
DC12 |
7.00 |
0.58 |
20± 0.5 |
|
DC24 |
4.50 |
0.19 |
119± 2.0 |
|
AC9 |
5.00 |
0.43 |
10± 0.5 |
|
AC12 |
4.50 |
0.37 |
15± 0.5 |
|
AC12 |
5.00 |
0.43 |
16± 0.5 |
|
AC24 |
5.00 |
0.20 |
55± 1 |
|
AC110 |
4.50 |
0.04 |
1.2± 0.05K |
|
AC220 |
4.50 |
0.02 |
4.6± 0.20K |
Xingguang Precision Electric Appliance Co., Ltd. was located in Jindong industrial park, Jinhua city, Zhejiang Province, China, the factory was established since 1995. As a manufactory we are able to designing and manufacturing all kinds of Solenoid Valves, Spirit Level & Rulers, Plastic Tools, Water Faucets total 5 Series Products.
Assets & Scale
Our factory occupies 25, 000 square meters, building area more than 18, 000 square meters. Total investment more than 10, 000, 000 RMB (about $1, 580, 000). Till now, we have more than 150 workers, 10senior engineers and Technicists, 1 R&D Department (research and development), 1 Quality Control Department and 2 Marketing Department.
Production Equipment
Our factory have a complete set experiment equipments and produce equipments, we have 28 plastic injection machines and 3 professional thermosetting plastic machines, 2 electronics inspection machine, 2 hydraulic pressure tester, tightness test equipments. The annual production capacity of all kinds of solenoid valves around 1.5-2million units.
Production Cost Control
Almost Every manufacturing process --- the lathing, Milling, planing, polishing, welding, assemble was finished in our own workshop. That's why we can provide you high quality product with low cost.
Credentials
The safety attestation was passed from China Household Electric Appliance examination in 1995. The CQC (Companywide Quality Control) authentication was passed. Company passed ISO9002 certification as well, and some of our products have got CE authentication.
Main Customers
Our products have been sold to USA, Germany, UK, Finland, Norway, Russia, Italy, Portugal, India, Korea etc. Many of famed company such like: SANYO(Japan), ROYALSTAR, SHARP, MEILING (China), Haier(China ) etc. Are our valued customer and business partner.
We are look forward to working with you and hope we form a long and profitable trading partnership.
