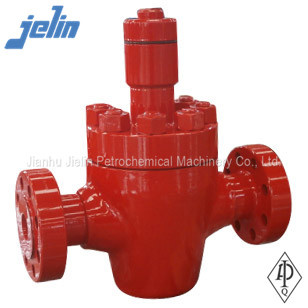

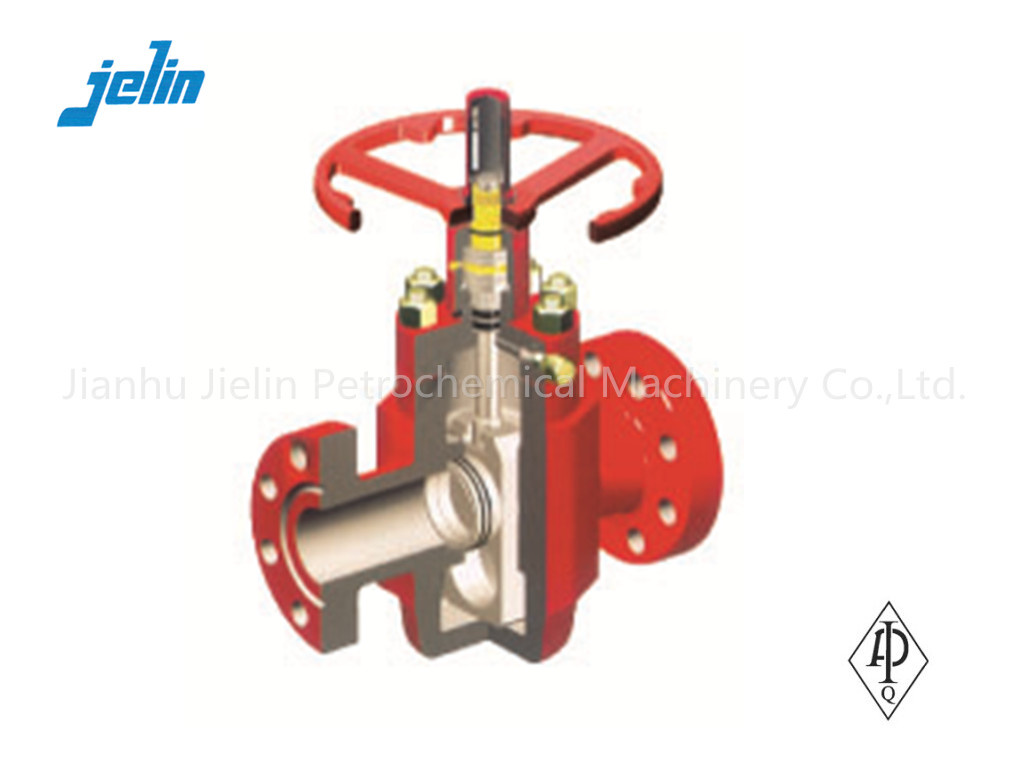

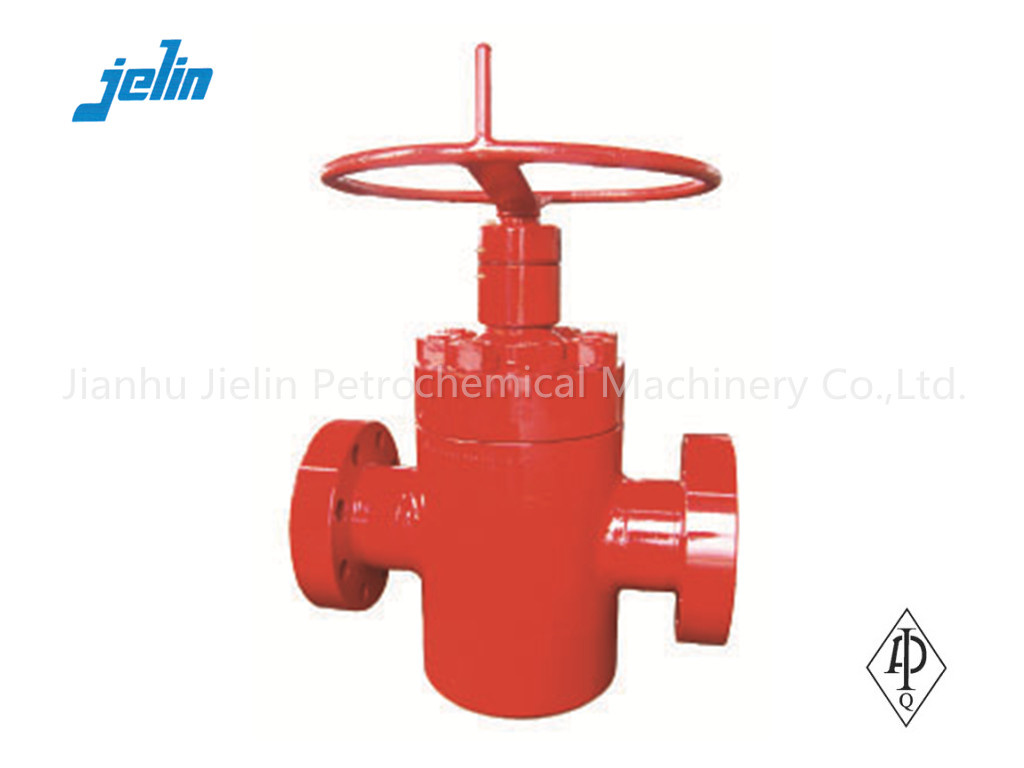

API 6A FC gate valve Slab gate valve is one of the most important parts of X-mass tree, tubing head, casing head and manifold. Our FC Type Slab Gate valve are designed in accordance with the API 6A Specification, available for all kinds of standards and special condition; Full bore design, and the bore sizes range from 1-13/16" to 7-1/16" in working pressure of 3000psi— 15000psi.
Specifications:
The sealing surface of valve seat and gate is overlaid (surfaced) with hard alloy, resistant to corrosion and abrasion.
Valve seat, gate and stem are sealed with imported lip-shaped combined seal structure, so they are safe and reliable, and the switching torque of valves is low.
Simple and safe design of valve gate and seat, makes it easy to change without special tools.
Non-rubber seal effectively protects valve chamber from mud, sand and rock, etc.
Stem sealing can be changed under pressure.

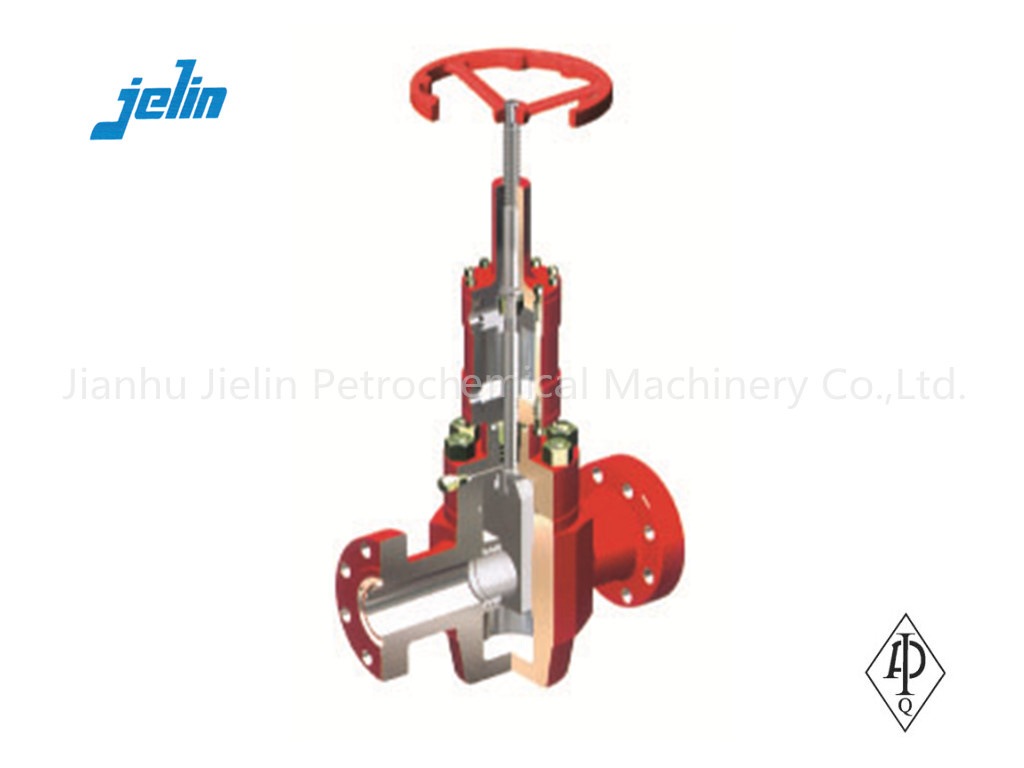

Stem is designed to be rising stem and non-rising stem, with a clear sign for valve opening.

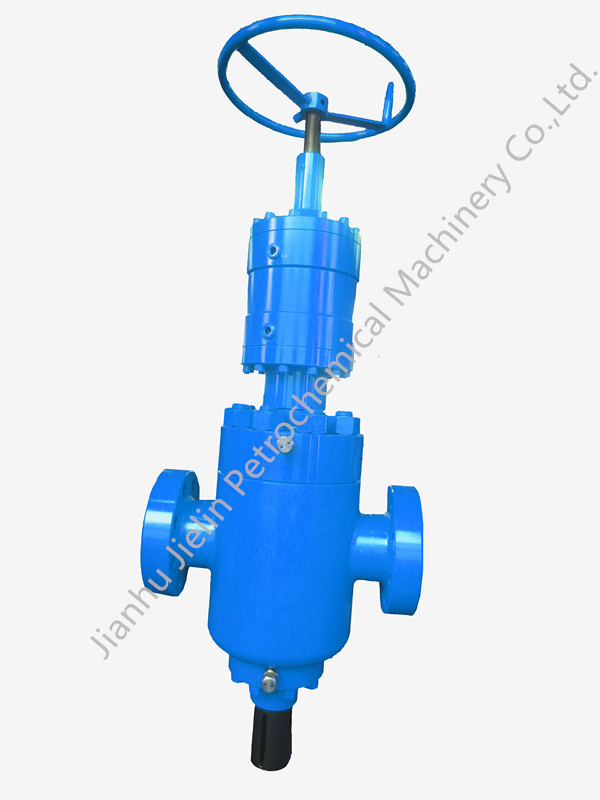

Drive mode falls into manual, hydraulic and gear.
Combining type falls into flange, thread and hub.
| DIMENTIONS | Size (inch) |
| 1-13/16 | 2-1/16 | 2-9/16 | 3-1/16 | 3-1/8 | 4-1/16 | 5-1/8 | 7-1/16 |
| A-End to End | 3000 psi Screwed |
| 10-5/8 | 12-3/8 |
| 13-5/8 |
|
|
|
| 3000 psi Flanged |
| 14-5/8 | 16-5/8 |
| 17-1/8 | 20-1/8 |
|
|
| 5000 psi Screwed |
| 10-5/8 | 12-3/8 |
| 13-5/8 |
|
|
|
| 5000 psi Flanged |
| 14-5/8 | 16-5/8 |
| 18-5/8 | 21-5/8 |
|
|
| 10000 psi Flanged | 18-1/4 | 20-1/2 | 22-1/4 | 24-3/8 |
| 26-3/8 | 29-1/4 | 35-3/8 |
| 15000 psi Flanged | 18 | 19 | 21 | 23-9/16 |
| 29 | 35-3/8 |
|
| B-Extreme Width of Body | 3000 psi Flanged |
| 6-3/4 | 7-5/8 |
| 7-1/2 | 10-1/2 |
|
|
| 5000 psi Flanged |
| 7 | 8-3/16 |
| 9-1/4 | 10-13/16 |
|
|
| 10000 psi Flanged | 9-1/16 | 9-3/8 | 9-13/16 | 10-1/4 |
| 12-13/16 | 15-1/4 | 18-13/16 |
| 15000 psi Flanged | 9-7/8 | 9-7/8 | 11-1/2 | 13-9/16 |
| 15-3/8 | 16-3/8 | 19-4/5 |
| C-Center of Bore to Top of Stem Adapter | 3000 psi Flanged |
| 13 | 15-13/16 |
| 16 | 18-7/16 |
|
|
| 5000 psi Flanged |
| 15-1/8 | 15-15/16 |
| 13/16 | 18-7/16 |
|
|
| 10000 psi Flanged | 15-1/8 | 15-1/8 | 15-13/16 | 16-7/8 | 16 | 19-11/16 | 22 | 30-1/2 |
| 15000 psi Flanged | 15-1/8 | 15-1/8 | 17-3/16 | 20-15/16 | 13/16 | 22-13/16 | 13-13/16 | 31 |
| D-Center of Bore to Bottom of Body | 3000 psi Flanged |
| 5-5/8 | 6-1/2 |
|
| 9-1/8 |
|
|
| 5000 psi Flanged |
| 5-5/8 | 6-1/2 |
|
| 9-1/8 |
|
|
| 10000 psi Flanged | 5-3/4 | 5-7/8 | 6-13/16 | 8-1/16 | 7-3/8 | 10-1/16 | 12-1/2 | 16-3/8 |
| 15000 psi Flanged | 5-7/8 | 6-1/8 | 7-5/16 | 9-1/4 | 7-3/8 | 10-3/16 | 13-13/16 | 17-3/8 |
| E-Center of Bore to Top of Handwheel | 3000 psi Flanged |
| 15-3/8 | 16-1/8 |
|
| 20-11/16 |
|
|
| 5000 psi Flanged |
| 17-3/8 | 18-1/8 |
|
| 20-11/16 |
|
|
| 10000 psi Flanged | 17-3/8 | 17-3/8 | 18-1/8 | 18-1/16 | 19-1/16 | 20-15/16 | 26 | 34-3/8 |
| 15000 psi Flanged | 17-3/8 | 17-3/8 | 19-9-16 | 22-3/16 | 19-1/16 | 24-1/16 | 26-13/16 | 35-1/2 |
| F-Handwhell O.D | 3000 psi Flanged |
| 14 | 14 |
|
| 18-1/2 |
|
|
| 5000 psi Flanged |
| 14 | 14 |
|
| 18-1/2 |
|
|
| 10000 psi Flanged | 14 | 18-1/2 | 18-1/2 | 24 | 14 | 24 | 24-1/2 | 33 |
| 15000 psi Flanged | 18-1/2 | 18-1/2 | 18-1/2 | 24 | 18-1/2 | 24 | 24-1/2 | 34-1/4 |
| G-No of Turms Open or Close | 3000 psi Flanged |
| 12-1/2 | 15-1/4 |
|
| 23-1/2 |
|
|
| 5000 psi Flanged |
| 12-1/2 | 15-1/4 |
|
| 23-1/2 |
|
|
| 10000 psi Flanged | 12-1/2 | 12-1/2 | 15-1/4 | 18-1/4 | 18-1/4 | 23-1/2 |
|
|
| 15000 psi Flanged | 12-1/2 | 12-1/2 | 15-1/4 | 15-1/4 | 18-1/4 | 29-1/4 |
|
|
| Ring Number | 3000 psi Flanged |
| R-24 | R-27 |
|
| R-37 |
|
|
| 5000 psi Flanged |
| R-24 | R-27 |
|
| R-39 |
|
|
| 10000 psi Flanged | BX-151 | BX-152 | BX-153 | BX-154 | R-31 | BX-155 | BX-169 | BX-156 |
| 15000 psi Flanged | BX-151 | BX-152 | BX-153 | BX-154 | R-35 | BX-155 | BX-169 | BX-156 |
| Weight | 3000 psi Screwed |
| 130lb | 185lb |
|
|
|
|
|
| 3000 psi Flanged |
| 180lb | 249lb |
|
| 450lb |
|
|
| 5000 psi Screwed |
| 130lb | 190lb |
| 210lb |
|
|
|
| 5000 psi Flanged |
| 182lb | 255lb |
| 282lb | 545lb |
|
|
| 10000 psi Flanged | 270lb | 275lb | 485lb | 680lb |
| 1057lb | 1588lb | 2100lb |
| 15000 psi Flanged | 275lb | 350lb | 800lb | 1065lb | 360lb | 1300lb | 3214lb | 5000lb |
