Solenoid Valve Name:
3.5V 3W G 1/2 Inch 0.2-8 Bar Pressure Plastic Rightangle Irrigation/ Water Solenoid Valve
Water Solenoid Vavle
Irrigation Solenoid Water ValveWater Supply Solenoid Valve
Water Flow Control Solenoid Valve
Electrical Water Solenoid Valve.

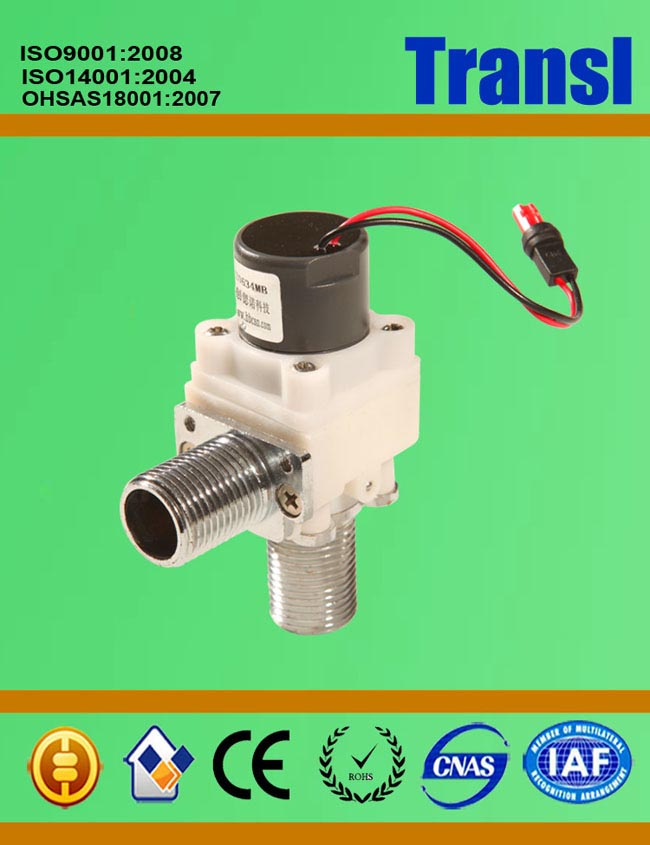

Solenoid Valve Image
3.5V 3W G 1/2 Inch 0.2-8 Bar Pressure Plastic Rightangle Irrigation/ Water Solenoid Valve Actual Image
Solenoid Valve Desc.
Low Power, Low Voltage, Short Time Response, Long lifespan.
3.5V 3W G 1/2 Inch 0.2-8 Bar Pressure Plastic Rightangle Irrigation/ Water Solenoid Valve Description:
The 3.5V 3W G 1/2 Inch 0.2-8 Bar Plastic Rightangle Water Solenoid Valve is made of Stainess Steel Body with External Threads (1/8,1/4,1/2, 3/4 inch or any size available), POM Forged Junction part and Solenoid Coil. There are options of 2 ways, 3 ways or more upon request. Excellent craftsmanship keep the Solenoid valve performing steady with long lifespan.
Featured with small volume, strong magnetic, advantages of convenient installation and operation, the 3.5V 3W G 1/2 Inch 0.2-8 Bar Plastic Rightangle Water Solenoid Valve is widely applied to bathroom water flush vale, Vegetable Irrigation valve and etc.
Solenoid Valve Spec.
3.5V 3W G 1/2 Inch 0.2-8 Bar Pressure Plastic Rightangle Irrigation/ Water Solenoid Valve Specification:
Products name: | 3.5V 3W G 1/2 Inch 0.2-8 Bar Pressure Plastic Rightangle Irrigation/ Water Solenoid Valve |
Mode: | MFZ0634MB-180 |
Rated Voltage (V): | 3.5 DC |
Pulse Width (ms): | 25-30 |
Working Pressure (Bar) | 0.2-8 |
Flow Charactis | 0.2Bar ≥ 3L/min 1Bar ≥ 16L/min 8Bar ≥ 40L/ min |
Medium Temperature(ºC): | 1-75 |
Media: | Water |
Resistance (Ω): | 4.0 |
Lifes Span (times): | ≥ 500 000 |
Application: | Bathroom Water Flush Valve, Vegetable Irrigation Valve , water supply management system. |
Material: | Stainless Threads, POM and Brass Solenoid |
Standard: | CE & Rohs |
About CSN
HuBei ChuangSiNuo Electrical Technology Corp.,(CSN) -Electromagnetic Export
CSN was founded in May 2000, covering more than 12,000 Square Meters , holding more than 30 sets of automatic CNC machines and around 200 employees, CE & Rohs & ISO approved products: Solenoid(s), solenoid valves, needle selector, coil, inductors solenoids. CSN can provide you OEM & ODM production baded on professioan and exprienced intermatonal trade practice.
CSN Products Range
There are mainy four types of products manufactured by CSN: Solenods, Solenoid Valves, inductors & Coils; Solenoid Coils.
Solenoids Series: widely applied to flat knitting machine, textile machine, weaving machine; automobile, mining exploration, Church Jowing and etc.
Solenoid Valves Series: widely applied to air cylinder,CNC Machinery, Sanitary ware, flow control, vegitable irrigation and etc.
Solenoid Coils Series: widely applied to Automobile, Gas Valves, Fluid Valves, Natural Gas Valves and etc.
Air Induction Coils Series: widely applied to Sensors, intelligent card, Card readers, Wireless Chargers, Controllers and etc.
HuBei ChuangSiNuo Electrical Technology Corp., (CSN) is one of the leading manufacturer and exporter of solenoid valve and related products. Founded in May 2000, CSN is holding more than 30 sets of automatic CNC machines and around 200 employees covering an area more than 12, 000 Square Meters. The CE & RoHS & ISO approved products from CSN: Solenoid(s), solenoid valves, Solenoid Coil, induction coil, inductors solenoids are sold to more than 40 countries...CSN can provide you OEM & ODM production baded on professioan and exprienced omtermatonal trade practice.
CSN's Products & Service
A. Solenoids
Brake Solenoid
Lift Solenoid
Locking Solenoid
AC/DC Solenoid
Automobile Solenoid
Latching Solenoid
B. Solenoid valves
C. Solenoid Coil
D. Induction coil
Our Service:
OEM & ODM production
Prompte and Efficient Delivery
Instant Online Service.
