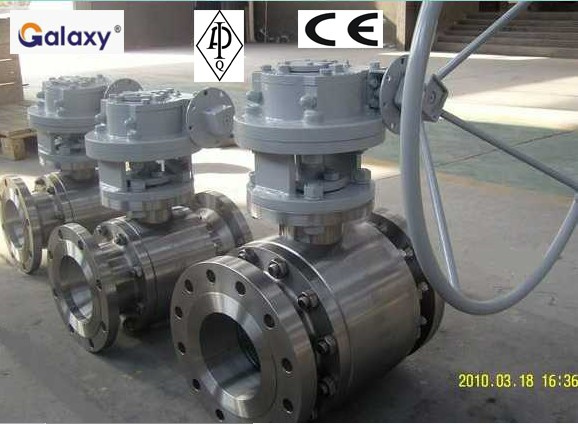

Product name: 3-PC forged ball valve
Size: 2"~40"
Rating: Class 150~1500
Design and manufacture: API 6d, asme b16.34
Face to face dimension: Asme b16.10, API 6d
End flange dimension: Asme b16.5
Pressure, temperature, ratings: Asme b16.34
Inspection and test: API 598, API 6d
Type of operation: Manual, gear, electric, pneumatic anti-static
Fire safe design as per API 607/6fa
Materials: A105, lf2, f304, f304L, f316, f321, f51
Design feature:
Full port and reduce port
Fire safe certified
Blowout-proof stem
Anti-static
Low emission control
ISO 5211 top flange
Optional locking device
Application:
Refinery
Chemical
Petrochemical
Power plant
|
Parts Name |
Carbon Steel |
Low Temp. Steel |
Stainless Steel |
|
Body |
A105 |
A350 LF2/LF3 |
A182 304/316 |
|
Bonnet |
A105 |
A350 LF2/LF3 |
A180 304/316 |
|
Spring |
Inconel X-750 |
Inconel X-750 |
Inconel X-750 |
|
Seat Ring |
A105 |
A350 LF2/LF3 |
A182 F304/F316 |
|
Seat Insert |
RPTFE |
RPTFE |
RPTFE |
|
O-ring |
VITON |
VITON |
VITON |
|
Ball |
A105 |
A350 LF2/LF3 |
A 182 F304/316 |
|
Stem Bearing |
304+PTFE |
304+PTFE |
304+PTFE |
|
Lower stem |
A105 |
A350 LF2/LF3 |
A182 F304/316 |
|
Gasket |
304+Graphite |
304+Graphite |
304+Graphite |
|
Screw |
A193 B7/B7M |
A320 L7 |
A193 B7M/B8 |
|
Upper Stem |
A182 F6A |
A350 LF2/LF3 |
A182 F304/316 |
|
Key |
ANSI 1045 |
A182 F304 |
A182 F304/316 |
|
Ball Bearing |
304+PTFE |
304+PTFE |
304+PTFE |
|
Axial Bearing |
304+PTFE |
304+PTFE |
304+PTFE |
|
Gland |
A105 |
A182 F304 |
A182 F304 |
|
Packing |
Graphite |
Graphite |
Graphite |
|
Packing Gland |
A105 |
A182 F304 |
A182 F304/316 |
|
Gear Box |
Cast Iron |
Cast Iron |
Cast Iron |
|
Spring Gasket |
65Mn |
65Mn |
65Mn |
|
Drain Valve |
Carbon Steel |
Carbon Steel |
Carbon Steel |
|
Flange Adaptor |
A105 |
A182 F304 |
A182 F304/316 |
|
|
|
|
|
Zhejiang Galaxy Machinery Manufacture Co., Ltd., which is established in 1987, mainly deals in manufacturing and exporting of various kinds of petroleum machinery equipments and valves. We have 2 big workshops, one is especially for petroleum machinery equipements for manufacturing air-eliminator dispenser vane pumps, emergency shut-off valves, automatic nozzles; The other one is especially for valves, such as ball valves, gate valves, globe valves, check valves, and plug valves.
We are the ISO9001 certificated factory. All our production process are accord with the international quality standard. Allour products passed CE, and API. High quality and excellent after-sales service have made our products getting good market nearly in every part of the world, such as the USA, Australia, Africa, Germany, Singapore, India, Norway, Saudi Arabia, Kuwait, and Lebanon. With years of export experience, for valves we are good at manufacturing at such standards as GB, DIN, ANSI, BS, AS, JIS, ISO, and API. We can make orders as per clients' special requirements.
OEM/ODM is available for us.
"Galaxy's quality, forever guarantee", we welcome all clients visit our Co. And cooperate with us, we wish to achieve the win-win cooperation by joint efforts. Welcome to our factory any time at your convenience.
