3 PC Stainless Steel Threaded Pneumatic Ball Valve
| Price: |
US $ 2-10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

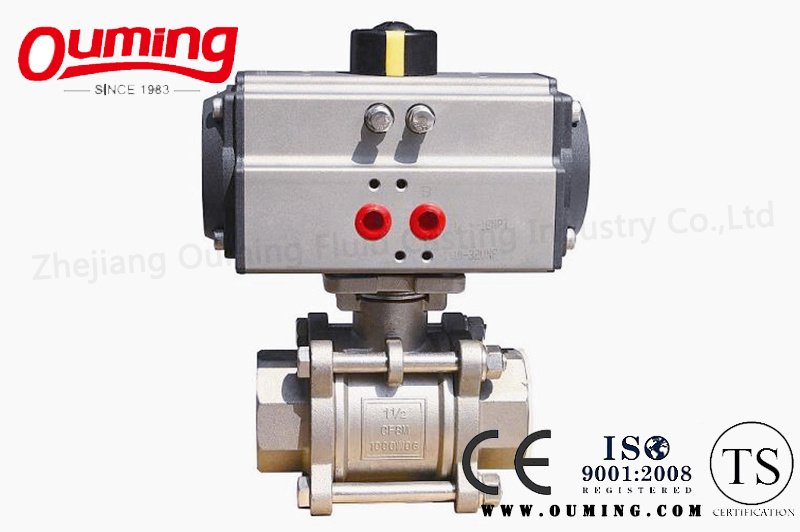

3 PC Stainless Steel Threaded Pneumatic Ball Valve
1. Over 20 years experience2. ISO9001: 20003. OEM all kinds of Ball ValveMain Part Materials:| Item | Part Name | Material |
| 1 | Seat | PTEE |
| 2 | Ball | SS304/SS316 |
| 3 | Body | WCB/CF8/CF8M |
| 4 | Packing | PTFE |
| 5 | Stem | SS304/316 |
| 6 | NUT | SS304 |
| 7 | Bolt | SS304 |
| 8 | CAP | WCB/CF8/CF8M |
| 9 | O-ring | VITON |
Main Size:| Size | D | L | H | T |
| 1/2" | 15 | 102 | 70 | 150 |
| 3/4" | 20 | 113 | 76 | 185 |
| 1" | 25 | 121 | 92 | 175 |
| 11/4" | 32 | 140 | 104 | 220 |
| 11/2" | 38 | 160 | 108 | 220 |
| 2" | 49 | 178 | 160 | 250 |
We will give you a reply within 24 hours after receiving your inquiry
ISO5211 Direct mounting pad for optional
1.Fire safe is avaliable
2.Full Bore
3.Size : 1/2"~4" (DN15~DN100)
4.Working Pressure :1000W.O.G
5.Working Temperature :-20°C~250°C
6.Material :WCB,CF8,CF8M etc
Feature
Double O-Rings third stem sealing design
Blow-out proof stem
Built-in ISO5211 direct mounting pad
Pre-load 2 Belleville washer to self-adjust packing
Double Stem sealing to comply with TA-LUFT requirements
Anti-static devices for ball-stem body
Fire safe design and ConstructionPneumatic actuator :Double acting /spring return
limit switch , solenoid valve , positioner ,air filter regulator are optional
| Prod Model: |
OM-3PTBV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2" ~4" |
| Medium: |
Water,Oil ,Gas etc |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Nominal Pressure: |
1000W.O.G |
| Function: |
Cut off |
Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 15000 square meters
We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.

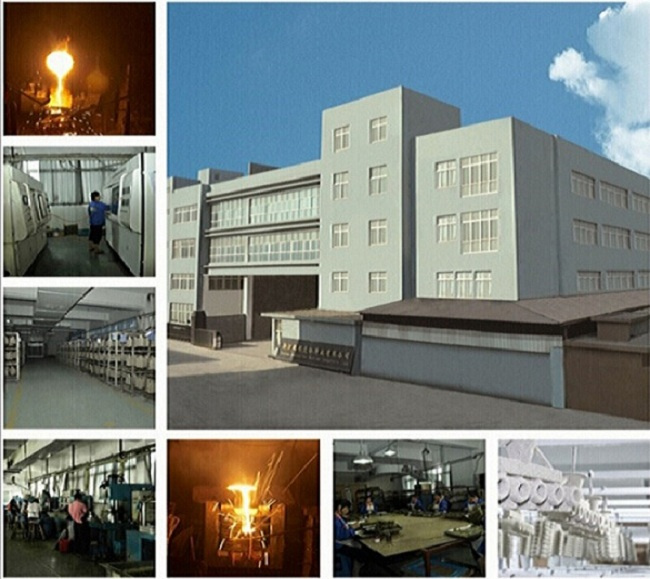

We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.
We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
