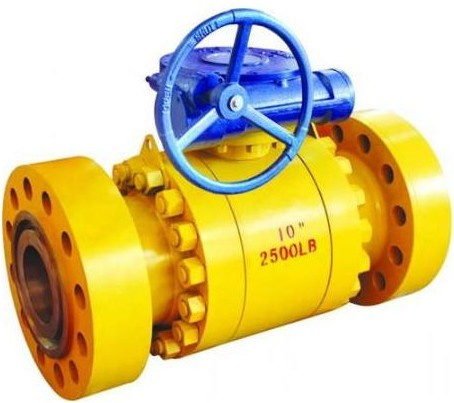

3-PC ball valve, trunnion mounted ball valve, forged ball valve, flanged ball valve.
Galaxy ball valves featuring with 3-PC split body, trunnion mounted ball. Fully forged steel structure eliminates the inevitable casting defects, ideal for high pressure service. It also has advantage of quick delivery compare with conventional cast steel type. Galaxy BS series ball valves are fire safe test certified by API 607 and API 6FA.
We accept OEM orders.
Design Standard:
Basic design: API 6D
Test: API 6D, BS 6755, API 598, API 607
Product Range:
Size: 2"~40"
Rating: ANSI 150LB~1500LB
Body material: Carbon steel, stainless steel
Trim: A105+ENP, 13Cr, F304, F316
Operation: Handwheel, gear, pneumatic operator
Design Feature:
Full port or reduced port
Fire safe certified
Double block & bleed
Blowout-proof stem
Anti-static
Emergency sealant injection
Cavity pressure self relief
Application:
On shore oil & gas
Off shore oil & gas
Refinery
Chemical
Petrochemical
Power plant
Parts Name |
Carbon Steel |
Low Temp. Steel |
Stainless Steel |
Body |
A105 |
A350 LF2/LF3 |
A182 304/316 |
Bonnet |
A105 |
A350 LF2/LF3 |
A180 304/316 |
Spring |
Inconel X-750 |
Inconel X-750 |
Inconel X-750 |
Seat Ring |
A105 |
A350 LF2/LF3 |
A182 F304/F316 |
Seat Insert |
RPTFE |
RPTFE |
RPTFE |
O-ring |
VITON |
VITON |
VITON |
Ball |
A105 |
A350 LF2/LF3 |
A182 F304/316 |
Stem Bearing |
304+PTFE |
304+PTFE |
304+PTFE |
Lower stem |
A105 |
A350 LF2/LF3 |
A182 F304/316 |
Gasket |
304+Graphite |
304+Graphite |
304+Graphite |
Screw |
A193 B7/B7M |
A320 L7 |
A193 B7M/B8 |
Upper Stem |
A182 F6A |
A350 LF2/LF3 |
A182 F304/316 |
Key |
ANSI 1045 |
A182 F304 |
A182 F304/316 |
Ball Bearing |
304+PTFE |
304+PTFE |
304+PTFE |
Axial Bearing |
304+PTFE |
304+PTFE |
304+PTFE |
Gland |
A105 |
A182 F304 |
A182 F304 |
Packing |
Graphite |
Graphite |
Graphite |
Packing Gland |
A105 |
A182 F304 |
A182 F304/316 |
Gear Box |
Cast Iron |
Cast Iron |
Cast Iron |
Spring Gasket |
65Mn |
65Mn |
65Mn |
Drain Valve |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Flange Adaptor |
A105 |
A182 F304 |
A182 F304/316 |
Zhejiang Galaxy Machinery Manufacture Co., Ltd., which is established in 1987, mainly deals in manufacturing and exporting of various kinds of petroleum machinery equipments and valves. We have 2 big workshops, one is especially for petroleum machinery equipements for manufacturing air-eliminator dispenser vane pumps, emergency shut-off valves, automatic nozzles; The other one is especially for valves, such as ball valves, gate valves, globe valves, check valves, and plug valves.
We are the ISO9001 certificated factory. All our production process are accord with the international quality standard. Allour products passed CE, and API. High quality and excellent after-sales service have made our products getting good market nearly in every part of the world, such as the USA, Australia, Africa, Germany, Singapore, India, Norway, Saudi Arabia, Kuwait, and Lebanon. With years of export experience, for valves we are good at manufacturing at such standards as GB, DIN, ANSI, BS, AS, JIS, ISO, and API. We can make orders as per clients' special requirements.
OEM/ODM is available for us.
"Galaxy's quality, forever guarantee", we welcome all clients visit our Co. And cooperate with us, we wish to achieve the win-win cooperation by joint efforts. Welcome to our factory any time at your convenience.
