Home Valve Products 3 Way 1/2'' Motorized Control Valve (T15-N3-C)

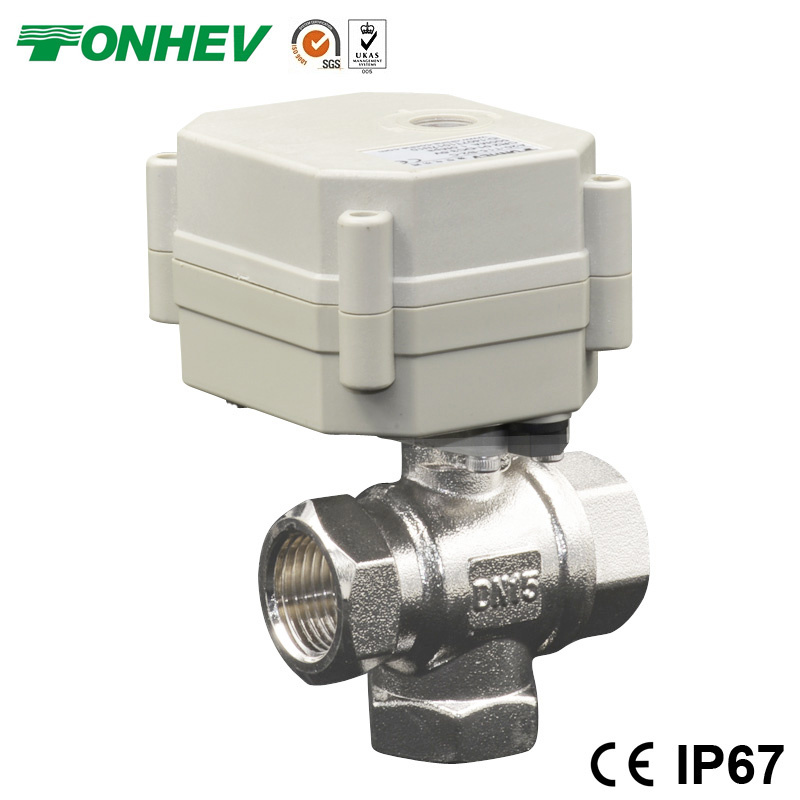

3 Way 1/2'' Motorized Control Valve (T15-N3-C)

3 Way 1/2'' Motorized Control Valve (T15-N3-C)
Price: US $ 16-28/Piece
Trade Terms: FOB
Min Order: 90/Piece
Pay Type: L/C,T/T,Western Union
3 way 1/2'' inches motorized electric actuator ball valve(T15-N3-C)

Product characteristics:
1. Mini size and perform reliably for small equipment
2. Easy to install
3. All metal gear
4. Long life time — 70000-100000 circles
5. Floating seal structure, good sealing, protection class IP67
6. Low working current, suitable for battery supply set
7. Manual override is safe and convenient
8. Passed CE certification and NSF61-G certification

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture irrigation equipment
5. Drinking water equipment, water heater, washing machine, ahw etc.
Product size  1/2"  (NPT/BSP  3/4"  1" ) Optional
Maximum working pressure 1.0MPa
Circulation medium Fluid, air
Rated voltage DC5V  DC12V  DC24  DC7-35V AC/DC9-35V AC/DC110-230V Optional
Wiring control methods CR2-01  CR2-02  CR3-01  CR3-02  CR3-03  CR3-04 CR4-01 CR5-01 CR5-02  CR7-01  CR7-02  CR7-03 CR7-04 Optional
Working current ≤500MA
Open/close time ≤5S
Life time 70000 times
Valve Body material Nickel plated  Brass
Actuator material Engineering Plastics
Sealing material EPDM & PTFE
Actuator rotation 90 degree
Cable length 0.5M, 1.5M
Max. torque force 2 Nm
Environment temperature -15centigrade - 50 centigrade
Liquid temperature 2centigrade - 90centigrade
Manual override No
Indicator  Yes

Prod Model: T15-N3-C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Brass
TaizhouTonhe Flow Control Equipment Co., Ltd. is a professional manufacturer and exporter of electric control valves from 2008, We always pay high attention to the quality control and new products R&D. Specialized in motorized valves, electric fluid control valves, electric actuator, with intelligent design, manufacture, sales and technical service.

Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.

All along, the research unit, institute strong support and concerted efforts of all colleagues, continually improved products, innovation, and a number of products for thentility model patents, and we will always maintain the idea that the pursuit of perfection to develop more products for the world to intelligent control fluid. Mechanized production lines in operation, to secure stability and excellent product quality to meet customer requirements.

Personnel training, stability, is an important strategy of company' growth and development, we take the talent as our company greatest wealth.

Talent is the fundamental driving force of enterprise development, enterprise is also the cradle of talent, In order to make personal pursuit and enterprise development to be harmonious, we establish long term cooperation with the School of Continuing Education of Tsinghua University, Taiwan Jian-feng MBA Group, and other Group, Every year, we select a number of staff to go to training, learning, in order to achieve growth of employees and enterprise together.

We will uphold the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle, to establish a positive corporate image, enhance corporate cohesion, with a view to alliance with the community to reach a long-term cooperative relations of mutual trust and seeking common development, create brilliant.
