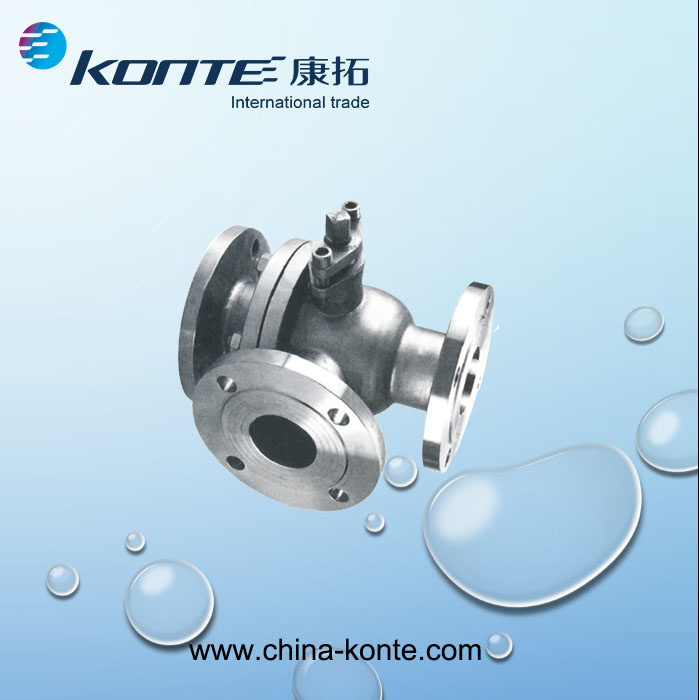

3 Way Flange Stainless Steel Ball Valve
Price: |
US $ 20.05-21.33/Piece |
Trade Terms: |
FOB,CIF,DAP |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
3 Way Flange Ball Valve (With and Without ISO 5211 Mounting Pad)
Specifications:
1. Size: NPS1/2" 12"
2. Connection: RF/RTJ Flange, Butt Welded
3. Pressure Rating: Class 150LB 600 LB
4. Material: A216 WCB, A351 CF8M, A352 LCB, CF3, CF3M
5. Ball type: T type, L type.
6. Certification: ISO9001, API600, CE0036
7. Guarantee: 18months; OEM offer
8. Suitable medium: Water, oil, gas
Design Standard:
1. Design & Manufacture Std.: API 608, AIP 6D, BS 5351, ASME B16.34
2. Inspection and Test: API 598, API 6D
3. Face to Face Dimension: As Per Manufacturer's Standard
4. End Flange Dimension: ASME B16.5, DIN 2543~2546
5. Butt-welding End Dimensions to: ANSI B 16.25
6. Fire safety standards: API 6FA
7. Packing: Wooden case, plywood case
Brand: |
KT/OEM |
Applicable Media: |
Water, Oil, Gas, Nitric Acid, Acetic Acid |
Normal Pressure: |
1000PSI / 1000WOG |
Strength Testing Pressure: |
PT 2.4,3.8,6.0,9.6Mpa |
Seat Testing Pressure(Low Pressure): |
0.6Mpa |
Applicable Temp: |
-20°C-180°C |
Certification: |
CE/API/DNV/FDA/ISO9001-2008 |
Sample Testing: |
One Sample for free( Under $10),Freight Collect |
Packing: |
Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
Payment: |
T/T, L/C, D/P, Western Union, Paypal |
Port: |
NINGBO/SHANGHAI, Customers' Request |
Delivery Time: |
Within 35days after receiving T/T deposit Payment |
Term of Delivery: |
FOB/CNF/CIF, Customers' Request |
Prod Model: |
Q44 (5)F-16C/P/R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Port Size: |
1/2"-8" |
Pressure: |
Low Pressure |
Power: |
Manual |
Temperature Of Media: |
Normal Temperature |
Media: |
Water,Air, Oil, Acid, Alkali, etc |
Place Of Origin: |
Zhejiang |
Handle Option: |
Lever Handle, Lock Handle |
Connection End: |
Thread, Sw, Bw, Flanged |
Actuator: |
Pneumatic/Electric |
Mounting Pad: |
ISO 5211 Mounting Pad |
Connection Form: |
Flange |
Channel: |
Tee Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Material: |
Stainless Steel |
Application: |
Water Industrial Usage |
