Product structural features:

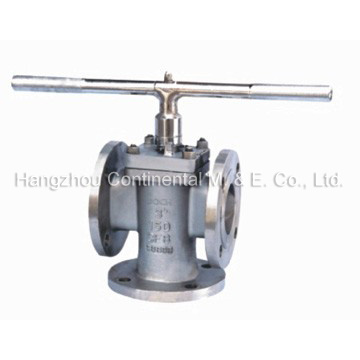

3-Way Plug valve is applicable to change the
Media flowing direction or to distribute the media
That are used in various industries such
As, petroleum. Chemical Pharmacy,
Chemical fertilizer, power, industry etc, under
Nominal pressure class 150-900Lbs PN1.0-16.0
Working temperature-29º C-600º C
Main structural features:
1The product has reasonable
Structure, reliable sealing, excellent performance
And beautiful appearance.
2\According to different conditions,
The 3-Way plug valve can be designed into diverseful media flowing forms (eg"L"type or "T"type) or all kinds of materials (EG. Iron, cast steel, stainless steel) or unlike sealing forms (e. G. Metal to metal, sleeve type, etc)
3 The materials of the parts and sizes of flanges can be reasonably configured according the actual operation condition of the requirements of the customers, so as to meet the various needs of engineering.
| Structural formation | BB-BG |
| Driving manner | Wrench, worm & worm gear pneumatic, electric-actuated |
| Design standard | API599,API6D,GB12240 |
| Face to face | ASME B16.10,GB12221,DIN3202 |
| Flange ends | ASME B16.5,JB79,GB9113,DIN2543-2545 |
| Test& inspection | API598,API6D,GB13927,DIN3230 |
