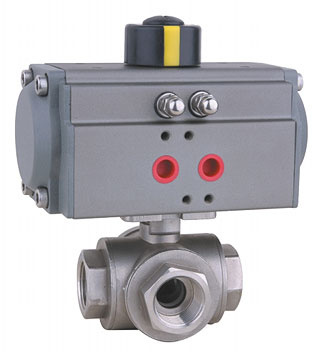

Pneumatic ball balve, Pneumatic ball balves,
Valve function: L type, T type
Working pressure: 6.3MPa/S. S304/S. S316 1.6MPa/brass
Control air pressure: 0.4MPa_0.6MPa (equipped with actuator)
Working temperature: -10c_+200c
Valve body material: S. S304/S. S316/brass
Major seal material: PTFE
Conduit connection: 1/8"_2"
Trachea connection: 1/8", 1/4" (equipped with actuator)
|
Outline Dimension (mm) |
|
DN |
RC |
HO |
T |
D |
B |
push order |
|
10 |
3/8" |
105 |
65 |
40 |
150 |
|
|
15 |
1/2" |
105 |
65 |
40 |
150 |
|
|
20 |
3/4" |
110 |
65 |
40 |
150 |
|
|
25 |
1" |
123 |
75 |
40 |
150 |
|
|
32 |
1-1/4" |
163 |
108 |
50 |
200 |
|
|
40 |
1-1/2" |
169 |
108 |
50 |
200 |
|
|
50 |
2" |
178 |
108 |
50 |
200 |
|
Our company Puremix Electro-Mechanical co ltd is a factory specialized in Pneumatic products and Hydraulic products like, Pneumatic fittings, Pneumatic valves, Solenoid valves, FESTO( SMC, AIRTAC, FESTO), Pneumatic cylinders and some Hydraulic quick couplings etc with good reputation in China for many years.
Our company imported CNC machines from Taiwan and Japan for machining the valve body, cylinder end covers, pistons, spools etc. And imported Gemany Siemens
System, with complete setof advanced computer testing equipment ande all keys seals are from Parker and Japan, Making a good definition for excellent quality. And devotes to continually developing new products, deeply improving current products, and obtaining reasonable margin to extend the market share. We are sure we are the right cooperator you are looking for in China.
