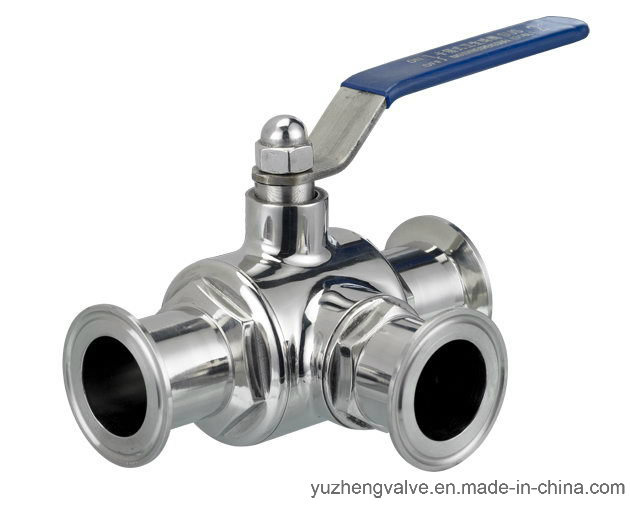

Three Way Ball Valve With Clamp End
Introducing:
Full run-through valve chamber will not result in any fluid resistance, therefore, this valve can be used to treat fluid which is viscous or contains particulate matter.
Description:
1) Standard: SMS/DIN/3A/ISO/DS
2) Body material: AISI 304, 304L, 316, 316L
3) Flux domination of pipeline: 3/4"-2 1/2" & DN25-100
4) Seal material: EPDM & PTFE
5) Connection code: Straight way type & three ways type
6) Manual actuator: 90degree adjustment handle
7) Working principle: Manual operation or actuating device operation
8) Related products: Flange ball valve, 3ways ball valve, 2ways ball valve and so on
Technical Parameter:
1) Working pressure: 0-10bar, Min pressure with vaccuum; Max pressure with 10bars
2) Working temperature: -10degree ~ 105degree
3) External part: Ra<1.6um & Internal part: Ra<0.6um
Advantage:
1) Low to torgue design results in cost effective actuation
2) suitable for aggressive chemical enviroment
3) Multi-stop handle for fine control, and looking handle option
4) Steam self-compresating for temperature and pressure
5) Easy to assemble a patented ball-body self alignment feature
6) Suitable for pigging system
| Prdouct Name: | Three 3 Way Ball Valve With Clamp End |
| Valve Body Material: | SS304/SS316L 1.4404/1.4301 |
| Seal Material: | PTFE+EPDM(Double Layer)/EPDM/Silicon/Vition |
| Max Working Pressure: | 10Bar |
| Max Working Temperature: | 120 degree |
| Availably Size: | 1"-4" |
| Avaliably Connection: | Clamp/Weld/Male Thread |
| Availably Standard: | 3A/DIN/SMS/ISO |
| Certification: | ISO/CE |
| Availably Structure: | Straight way type & Three Ways type |
| Application Scope: | Dairy Food Beverage,Pharmacy,Cosmetic,Chemical etc. |
| Packing Details: | Bubble Pack for Each Valve, Outside Packing are carton or Plywood Cases |
| Delivery Details: | Usually within 20days after received T/T Down Payment |
| Payment Term: | T/T,L/C |
FAQ:
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and fitting over 10 years.
And we have got the verification of compliance for ball valve from ECM and ISO9001 certificate of manufacturing and processing of valves and fittings.
2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.
3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1pc. We believe this cooperation will be a long-term relationship for our high quality, competitive price and good after-sale service.
4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your this kind special request, even manufacture it based on your drawing.
6 What is your lead time?
It's around 30 days normally. If we have the products in stock, it will be about 15days
7 How can I check your factory situation while it's difficult for me to come to China?
We have photos and videos on our website and face book, It shows every step of the manufacturing.
We also have a showroom in CA, USA. If you have time, you can take a look.
8 How can you guarantee the quality of products?
First of all, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
9 How long is the quality guarantee period?
We supply 6 to 12 months for quality guarantee according to customers' using frequency.
10 How do you pack?
Plastic bags-------Paper boxes-------Cartons-------Plywood cases
