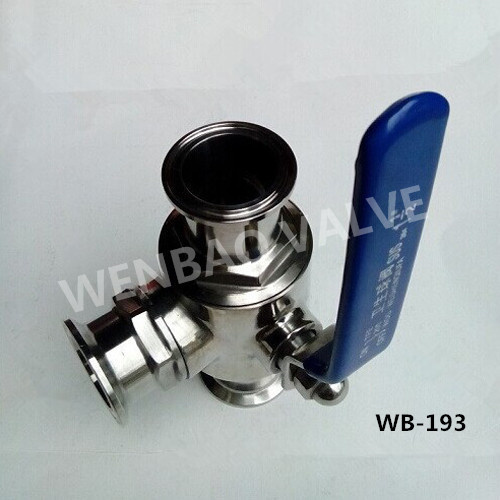

3-Way Sanitary Clamp Ball Valve with Manual Handle

3-Way Sanitary Clamp Ball Valve with Manual Handle
Price: US $ 20/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T

Sanitary Ball Valve
Sanitary Ball Valve is suitable for any pipeline to control the flow either automatically or manually. Wenbao sanitary provide sanitary ball valves with full bore or reduced bore design, in stainless steel 304 or 316L with different connection end. The sanitary ball valve is compact and simple design, and easy to maintain, with a full diameter from 1/2″ to 4″, and meet the stringent requirement of high purity sanitary industries of Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc. Wenbao is your reliable source for sanitary valves and fittings.



Design:

Compact and simple design - Easy to install into most any process line, the straight forward floating ball design guarantees a tight seal and permits axial movement while preventing rotation. They are water hammer-safe and completely insensitive to pressure shocks in the pipelines. There are four configurations for sanitary ball valve:
- Sanitary straight way ball valve consists of a valve body, two flanges, a ball and PTFE seats.

- Sanitary 3 way ball valve: It has two configurations: T type and L type. It consists of one valve body, valve covers and PTFE valve seats. It is installed with Tri-clamped or threaded ends.

- Sanitary 2 pieces portable ball valve: a precision made ball is positioned between two PTFE seats inside valve bodies connecting by a clamp. It is installed with clamped or threaded ends. A drain outlet is available on request.

- Sanitary butterfly ball valve: It is composed of two valve bodies, a ball and a sealing unit.

Reliable full-flow performance - Sanitary ball valve is full-bore flow valves that provide on/off control with minimal pressure drop. The valve opening has a constant pipeline diameter, which enables fluids to flow freely through the valves when open. Flow restriction is comparable to that of a straight tube. This makes the sanitary ball valve suitable for:
1. Handling fluids that are viscous or contain solid, semi-solid or abrasive particles;
2. Use wherever pigging of process lines is a major consideration;
3. Applications that require gentle product treatment;
Automatic or manual control - Sanitary ball valve can be operated by a pneumatic actuator or manually operated by means of a handle.
Easy to maintain - Sanitary ball valves design with few moving parts enables easy access to all valve components, making maintenance quick and easy. Durable PTFE gasket valve seats help extending service life. No special tools required for maintenance

Material:

Stainless Steel 304,316L or en.1.4301, 1.4404 etc. Specified grade is available.



Strength:

    Material of stainless steel 316L and 1.4404 is from reputed mill to guarantee the chemical composition and mechanical propertis. Material certificate will be submitted follow to orders.
    Forged valve body and disc to control the leakage and visual.
    Superior facilities and good experiences for fabrication.
    In ability to improve and develop new design.
    Fast delivery is possible to meet your needs well in time.
    Low cost from bulk production will reduce your budget and improve your business.
    Small quantity available.


Application:

    Food, Brewery, Beverage, Dairy, Pharmaceutical, Biopharma etc.

Main Parts & Materials
1Body304, 316, 316L3Stem304, 316, 316L
2Ball304, 316, 316L4PackingFKM, PTFE
3Seat RingSilicone, EPDM PTFE, Buna-N5


Prod Model: WQ85W, WB-193
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size Range: Dn15~Dn50
Body Material: 304/316/304L/316L
Place Of Oringin: Wenzhou
Manufacture Standard: GB122237
Material: Stainless Steel
Connection Form: Thread
Channel: Tee Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Nominal Pressure: Pn6-Pn25
Function: Shut-off
Temperature: -30~120
Application: Food, Biopharmacy
Zhejiang Wanbao Valve Technology Co., Ltd is located in Wenzhou city - the valve centre of China and covers an area of 6000 square meters. The company is specialized in the development, production and sales of pipe fittings and has the most advanced processing equipment, modern testing technologies, various CNC machines and other advanced machines.

Since its establishment in 1985, the company constantly develops new products based on scientific and technological innovation. The production is carried out as per different international standards: API, ANSI, JIS, ISO, BS, GOST, also by national standards JB and GB. The company created Computer-aided engineering and design (CAD) center, UG three-dimensional design center and testing center. Using the powerful production equipments and perfect testing methods, the company is able to effectively improve the product quality, thus ensuring the interests of customers.

Our main products are as follow: Various types of ball valves (1-PC, 2-PC, 3-PC ball valves, sanitary ball valve, fully welded ball valve), globe valves, check valves, gate valves, butterfly valves, strainers, fire hydrants, pipe fittings, etc. Our products are widely used in chemical, petroleum, metallurgy, electric power, food, pharmaceutical, fibrous, civil, light industry, etc.

By now the company has powerful technical forces and more than 120 employees, including 16 senior engineers and technical personnel. The registered capital of the company is 10.18 million and 1 million RMB. The company is a member of the Association of valves of Longwan district. The company has established a perfect sales network. Products are exported to Europe, America, Middle East, Southeast Asia, Africa, Korea, Russia, etc., for the installation in industrial pipelines of hydro-power station. We received a positive evaluation of our products and by now there is no quality complaints from customers.

Adhering to the business philosophy "survival by quality, development by reputation", the company is committed to "create the image of Wanbao all efforts and create the brand Wenbao with all our heart". The company has repeatedly been rated as the enterprise, which "values the contract and keeps reputation. "

After passing various kinds of certification, the company has improved testing methods and testing equipments. The company has all kinds of equipments for physical and chemical testing, such as spectrum quantitative analyzer, roundness measurement instrument (made in Japan), HLN-11A Leeb hardness tester, torque wrench, HR-150A Rockwell hardness tester, XXQ-2505 inflatable X-ray converter defectoscope, MT150 ultrasonic thickness gauge, WEW-300B universal hydraulic testing machine, testing fatigue testing machine, etc.

Wenbao company warmly welcomes new and old customers to cooperate and create our brilliant future!
