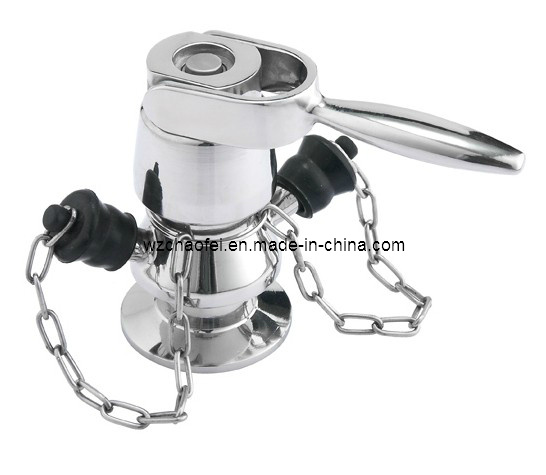

Sanitary sample valve
1)Material of valve body: SUS304, SUS316L
2)Material of diaphragm: Silastic(use to standard valve), EPDM rubber (use to valve with micro type connector)
3)connection type: Welded, clamped, threaded end
4)Size: DN6-DN25, 1/4"- 2"
5)Preasure:
Max. Working pressure above the valve seat (close valve): 1.0Mpa
Max. Working pressure above the valve cover (open valve): Stainless steel material 1.0Mpa.
6)Temperature:
Max. Sterilization temperature, dry steam: 121-134degree. Steam must be use dry because the condensate water will damage the diaphragm. We suggested to customer, after 100times sampling or sterilization should be replace the diaphragm.
7)Certification: Material inspection report
8)Application: The type of valve series is designed to use before and after doing sterilize treatment.
|
Connecting Ends |
Welded, clamped, threaded end |
|
Metal Material |
Parts in contact with fluid |
304, 316L (DIN 1.4301, 1.4304) |
|
Other parts |
304 |
|
Seal Material |
Options |
PTFE/Silicone, PTFE/EPDM, PTFE/NBR |
|
Pressure |
Max. working pressure |
10 bar |
|
Surface Finish |
Internal surface |
Ra < 0.8 μm |
|
External surface |
Options: bright, satin, grit blast |
|
Applications: |
Sample valve is mainly used to tank equipments or inside pipeline for sample collection, and also can be installed in the lowest point of the tank or pipeline for draining residual fluid. |
