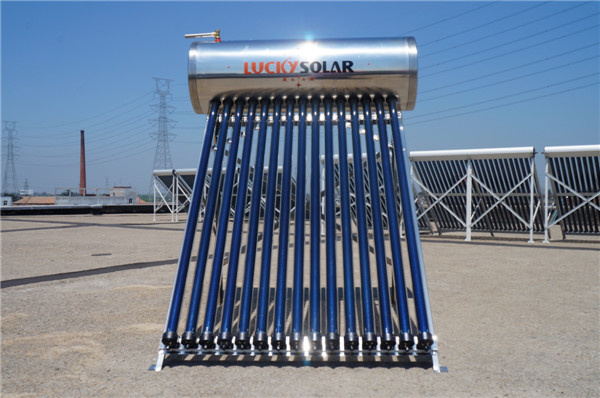

Integrated Pressurized Solar Water Heater
1. The inner tank adopts the 1.2 mm imported SUS304 stainless steel and automatic welding technology which decrease the corrosion.
2. Inlet and outlet use the argon welding technology against the 0.6 Mpa pressure.
3. Heat tube conducts the heat energy in the single direction and has some advantages of quick operation, high heat efficiency and anti-corrosion.
4. It has advantages of no water in tube, no filthy, no broken tube, anti-freeze, unlimited time to the inputting water and pressure operation.
5. Insulation adopts the polyurethane which has good insulation efficiency.
6. The frame adopts the imported stainless steel, which is strong and against corrosion,
7. Tail stock has a novel design and is available to be installed.
|
Integrated Pressurized Sola Water Heater Technical Information |
|
Vacuum tubes |
Capacity |
Loading Qty (20'GP) |
Loading Qty (40'HQ) |
Terms of Payment |
Delivery time |
MOQ |
Specifications |
|
No. |
Dia. - Len. |
(L) |
|
15 |
Ø58-1.8m |
135 |
45 |
110 |
TT/LC |
10 to 15days |
Negotiable |
Outer tank diameter: 480mm; Outer tank material: stainless steel/color steel plate; Inner tank diameter: 370mm; Inner tank material: 1.2mm 304 2B food grade stainless steel; Support stand: Stainless steel /Galvanized steel; Insulation: 55mm polyurethane foam. |
|
18 |
Ø58-1.8m |
160 |
36 |
88 |
|
20 |
Ø58-1.8m |
180 |
34 |
83 |
|
24 |
Ø58-1.8m |
215 |
28 |
68 |
|
30 |
Ø58-1.8m |
270 |
23 |
56 |
|
36 |
Ø58-1.8m |
325 |
20 |
48 |
Haining Jixiang Solar Energy Co., Ltd. is a new high-tech company specializing in the utilization of solar energy. Located in Haining Yuanhuan industrial zone in Zhejiang province, the company has high-quality technique staff. With strong integration capability and global resources, Jixiang Solar Energy Co., Ltd is moving forward to establish an international brand.
The Lucky Series water heater, Lucky Sanbao, Lucky Ruyi, Lucky Fuyun, Lucky Hexie, and Lucky Haoyun, are conducted with serious quality control measures and have earned us ISO 9001: 2000 certificate for its management & products, CCC certificate for "Qualified Products" and CE certificate. The brand of "Window of Lucky" is listed as "Recommended Brand" of CCTV. Besides, the series have also been regarded as quality safe products. Due to Lucky's good image and high quality, our products are popular in Spain, Italy and many other European countries.
Jixiang focuses on solar energy exploration and attaches great importance to leading-edge research and innovation to make itself a step forward in future market. Been a globalized enterprise that has globalized staff, Lucky firmly believes that the constant rule of market is constant change, challenge is the drive of innovation, thus Lucky never says "NO" to market. With the manufacturing excellence, Lucky Solar Energy Co., Ltd is fully integrated with Lucky's global manufacturing system. With world-class facility, Lucky offers substantial and timely service not only to the domestic market but also to the rest of the world. "The utmost success of the company is customers' satisfaction" is Lucky's tenet.
Guided by business philosophy, Lucky has experienced success in the three historic periods, noted as brand building, diversification and globalization. It has long attached significance to innovation in satisfying the demands of worldwide consumers and realizing win-win performance between Lucky and clients. Facing fierce global market competition, Lucky has launched the global brand building strategy and updated the spirit, "The relentless pursuit of perfection", with an aim to gain global recognition and sustainable development.
