Home Valve Products 316L Stainless Steel Body Material with Extended Bonnet Valve

316L Stainless Steel Body Material with Extended Bonnet Valve

316L Stainless Steel Body Material with Extended Bonnet Valve
Price: US $ 0.1/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union

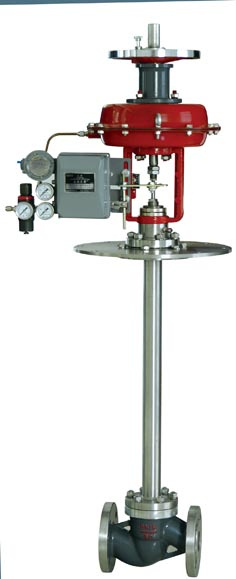

316L stainless steel body material with Extended bonnet valve

YSIQ10 series of intelligent regulating valve

1) YSIQ10 series of intelligent regulating valve uses modular design with strong compatibility and interchangeability, impact structure and wide variety.

The varieties of combination of the components of the trim make it applicable for high pressure head, low noise and high precision to meet the different demand of usage for customers.

The modular, double-side valve seat and compressing connection of the valve body, greatly enhance the sealing grade an service life of the valve lead, make it easy to repair and greatly increase the general performance of the regulating valve.

2) The PN class is ANSI are 150and 300, the DN scale 3/4-8inches under the temperature of -190celsius-600celsius.

The sealing grade of the metal sealing type is IV-V and the soft sealing VI. There is zero leakage and the flow property is equal percent approximately.

YSIQ10:

Characteristics:

The ZM10 multiple springs actuator using modular design can be freely replaced on spot, reacted and the spring can be effectively protected from the corrosion to prolong the service life of actuator for the usage of the customers.

The actuator and the intelligent electric valve positioner are connected pipelessly to strengthen the anti-seismic performance, stability and regulating precision meet or precise regulation of the working conditions.

Main Material

Valve body: WCB, CF8, CF3, CF8M, CF3M
Valve seat: 304, 304L, 316, 316L
Valve stem: 304, 304L, 316, 316L, 630

Please contact us for more details if you have any interesting.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue, Red, Green or Customer Needed
Material: Stainless Steel
Structure: Through Way Diaphragm Valve
Actuator: Pneumatic
Function: Intelligent Type
Connection: Flanged Diaphragm Valve
Standard: GB
Zhejiang Yongsheng Instrumentation Co., Ltd. is a professional shareholding enterprise. We specialize in the production of instrumentations of industrial automation - control valves.

Located beside the beautiful Fuchun river in the south of Hangzhou City, our company covers an area of over 30, 000 square meters and possesses more than 200 employees, including over 60 senior and medium-level technicians in various fields. Our main products include: Pneumatic diaphragm control valve, self-operated pressure control valves, linear-motion regulating valve series, rotary-motion regulating valve series, intelligent control valve series with more than 200 types and thousands of specifications. With annual output of control valves more than 20, 000 sets. In 2008 our company invested 30 million yuan found the Yongsheng fluid machinery Co., Ltd. With annual output of 5000 tons and start the processing line of new craft cast steel, stainless steel, cast iron which guarantee the valve quality at first manufacture process.

Our company adopts the scientific management, strictly according to the ISO9001: 2000 quality management system. We carry out the high-standard production relying on the solid technological power, advanced equipment, production technique and perfect means of test, and provide the systematic services based on the complete after-sales service system. In addition, we constantly produce high-quality products expected and required by the customers, for pursuing for existence in competition, benefits in quality, advancement in technology and promotion in management.

If you are interested in our products, please feel free to contact us for more information. We are looking forward to cooperating with you in the near future.
