Two position three way
Effective Sectional Area: 12mm
CV=0.89
Port size: Inlet=outlet=1/4''
Exhaust=1/4''
Working Medium: Air(40 Micron Filtered)
Acting type: Inner guide type
Working pressure: 0.15~0.7Mpa
Max. Pressure: 0.7Mpa
Working temp.: 5~50C
Protection Class: IP65
Max. Frequency: 5 cycle/sec.
Shortest Activate Time: 0.05Sec.
Size: 8.1*1.8*2.7cm per PC
|

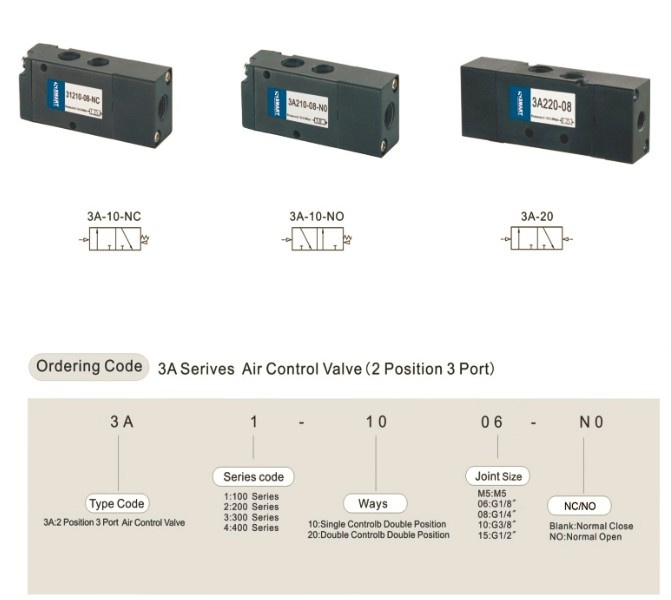

Specifications:3A100,200,300 Series |
|
Model |
3A110-M5 |
3A110-06 |
3A210-06 |
3A210-08 |
3A310-08 |
3A310-10 |
|
3A120-M5 |
3A120-06 |
3A220-06 |
3A220-08 |
3A320-08 |
3A320-10 |
|
Fluid |
Air |
|
Action |
Exterior control |
|
Port size |
In=Out=M5 |
In=Out=1/8 |
In=Out=1/4 |
In=Out=3/8 |
|
Type of actuation |
3 port 2 position |
|
Ambient and fluid temperature |
-5~60ºC(No freezing) |
|
Orifice size |
2.5mm²(Cv=0.31) |
12mm²(Cv=0.67) |
14mm²(Cv=0.78) |
16mm²(Cv=0.89) |
25mm²(Cv=1.39) |
30mm²(Cv=1.67) |
|
Lubrication |
Not required |
|
Operating pressure range |
0.15~0.8Mpa |
|
Proof pressure |
1.2Mpa |
|
Material of body |
Aluminum alloy |
|
Max.operating frequence |
5Hz |
