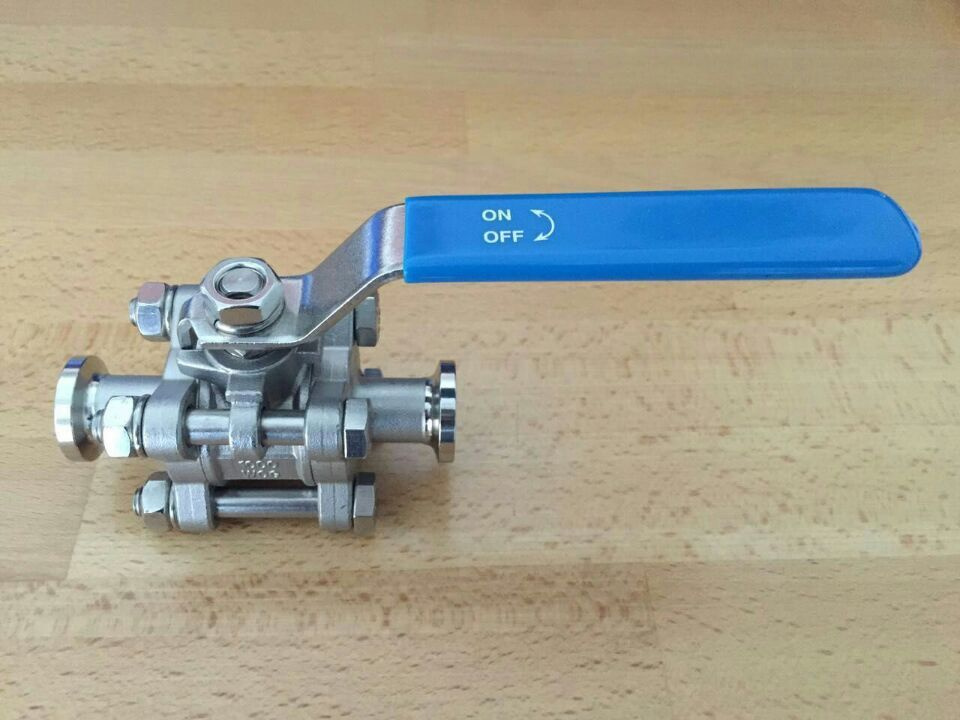

3PC Clamp ball valve
/ 3PC quick release ball valve ,with high mounting pad ,1000WOG
1.Threadedc type:BSPT.BSP.NPT.DIN 259/2999
2.Invest Tment casting:CF8 Body and Cap
3.Used for water.oil,gas and some corrodble fluid
4.Options:locking Device and actuator mounting bracket
5.Working pressure:1000PSI (7.0Mpa)Series are general Type 1500PSI(10.5Mpa).
6.2000PSI(10.5Mpa) 2000PSI(14.0Mpa) Series are high pressure type.
7.Three piece ball valve (three piece ball valve,3 piece stainless steel ball valve)
No. | Parts name | Material |
| ANSI/JIS/DIN | ANSI/JIS/DIN | ANSI/JIS/DIN |
| 1 | Hexagon head bolts | A193-B8 |
| 2 | Hexagon nut | A194-8 |
| 3 | Elastic gasket | SUS304 |
| 4 | Cap | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 | A216-WCB/SCPH2/1.0619 |
| 5 | Ball seat | PTFE/RPTFE/PPL |
| 6 | Ball | SUS316 | SUS304 |
| 7 | Cap gasket | PTFE/RPTFE/PPL |
| 8 | Body | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 | A216-WCB/SCPH2/1.0619 |
| 9 | Thrust washer | PTFE/RPTFE |
| 10 | Stem packing | PTFE/RPTFE/PPL |
| 11 | Stem | SUS316 | SUS304 |
| 12 | Washer | SUS304 |
| 13 | Postion Handle | SUS304 |
| 14 | Hexagon nut | A194-8 |
| 15 | Elastic gasket | SUS304 |
| 16 | Locking Device | SUS201 |
| 17 | Plastic Pin | PVC |
