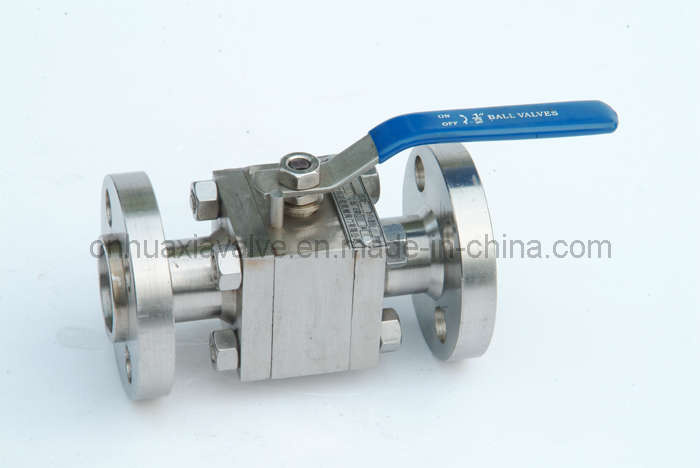

3PC Forged Flanged Ball Valve

3PC Forged Flanged Ball Valve
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Ball valve: ANSI B16.34 / API6D / BS5351
Fire safe: API 607
Anti static: API 608
Face to face: ASME B 16.10
Inspection and test: API 598 / API 6D
Products Description:
Products name: 3PC Flanged forged Ball Valve
Size: 1/2"-4"

Pressure Rating: CLASS150LB to 2500LB
Flanged end& Blow-out proof stem& Fire safe construction& Anti static device
Ball Type: Floating Ball
Port Type: Reduced bore/Full bore
Material: A105, F11, F22, LF2, 304, 304L, 316L, 316L, 20# alloy, Monel and Hast. etc.
. Ball and Stem: SS304, SS316, SS304L, SS316L, SS410, SS416. etc.
Valve Seat: PTFE / RPTFE / PCTFE / VITON / PEEK / DEVLON. etc.
Operation: Manual,

Application:
Offshore /Oil /Gas /Chemical /Petrochemical Pulp /Paper /Water /Wastewater /Marine

Notes: The specifications can be designed and satisfied for customers' special requirements
We have obtained Certificates of CE, API 6D, API 607, TS and ISO 9001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
1/2" To 4": 150lb to 2500lb
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: A105
Zhejiang Huaxia Valve Co., Ltd. A professional manufacturer of valves and pipe fittings integrating R&D, design, production and sales services. Incepted in 1982, it has been recognized as China Hi-tech Enterprise, implementation unit of State Torch Program. It is also a member unit for designated supply of China Petrochemical Corporation and China National Petroleum Corporation.
It has five manufacturing plants with total floor coverage of 56, 800 square meters and building area of 35, 000 square meters. Huaxia is equipped with sophisticated machining center, CNC lathe and metal cutting processing equipment, physical and chemical test, spectral analysis and valve all round properties testing equipment, as well as provided with valve micro leakage detection capability. Its dominant products include ball valves, butterfly valves, gate valves, flatplate gate valves, globe valves, check valves, sanitary butterfly valves, ball wedge needle valves and Extrude Pipe Connecting. Valve size: 1/4"~68"(DN6~DN1800). Pressure rating: 150LB~2500LB, PN6~PN42. Temperature range: -196~850Celsius. Standards: API, DIN, BS, EN, ANSI, GB. Material: Carbon steel, stainless steel, alloy steel, Monel alloy, low temperature steel and other special steel boby. Driving means: Manual, gear rotary, electric pneumatic, hydraulic.
Mainly exported to USA, Europe, Middle East. Africa and Singapore, products deeply favored by them. The company is actively implementing distribution system and hsa set up sales offices in Beijing, Shanghai, Shandong and Xi'an, enabling fast product delivery for customers and serving them as soon as possible.

The company pays great attention to product quality and has past ISO9001-2008 quality system certification, EU CE/PED certification, API6D, API607 and TS certification. It is provided with sophisticated production facilities, engineering department, production control department, quality control department for coordinated valve manufacturing and ensuring the development speed and quality of new products. It also ensures quality control for each round from design, raw material, production, inspection, exwprks to customer services, realizing fast product delivery.

Zhejiang Huaxia Valve Co., Ltd. mainly produces the products, materials, and the implementation of the following criteria:
1. Product Type: Ball valves, butterfly valves, gate valve, globe valve, check valve, flat gate valve, cryogenic valves (gate valve, globe valve, check valve, ball valve -196Celsius), sanitary valves and fittings, etc.;
2. Executive Standard: American Standard (API), German standard (DIN), International Standard (ISO), GB (GB), British standard (BS), etc.;
3. Material: WCB (A105), LCB (LF2), C5 (F5), WC6 (F11), WC9 (F22), CF8 (F304), CF8M (F316), 4A (F51), 5A (F53), 6A (F55), CK3MCUN (F44), MONEL, INCONEL (625, 825), 20 alloy, aluminum bronze (B148 C95500, C95400), etc.;
4. Nominal diameter: 1 / 2 "--- 56" (DN15-DN1400);
5. Nominal pressure: CLASS 150---CLASS 2500 (PN16-PN420),
6. Operating temperature: -196 --- 650 Celsius;
7. Uses: Petroleum, natural gas, oil refining, chemical, power plants, ships and other conditions, Founder of the company's operating criteria: Integrity first, customer-oriented.

Zhejiang Huaxia Valve Co., Ltd. Advantages:
1. High quality management system, create a high quality product.
2. Leading production management system to ensure the fastest completion for the shortest delivery.
3. With powerful competitive prices.
