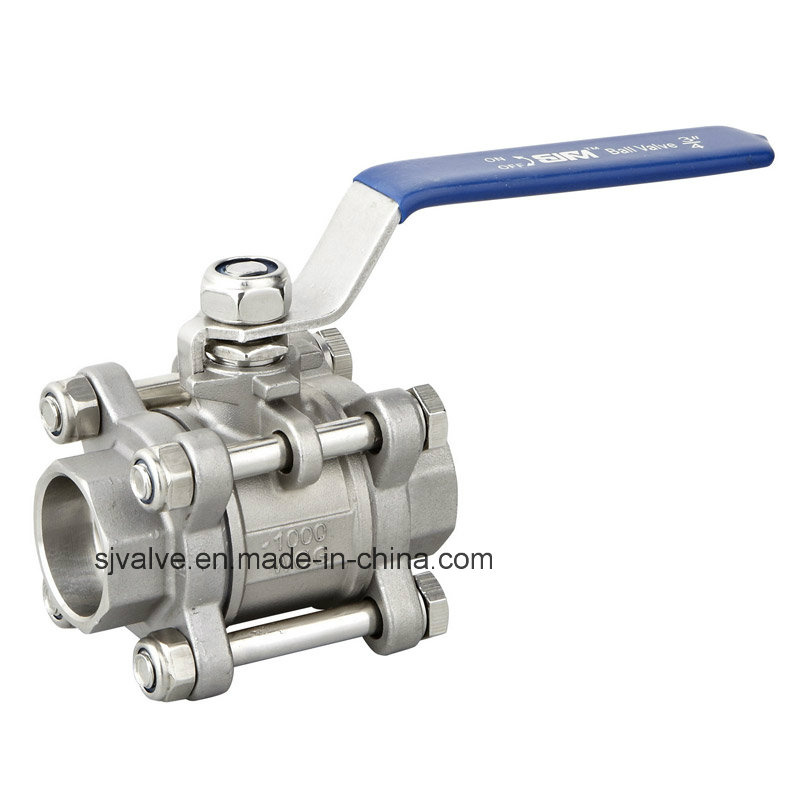

3PC Sanitary Socket Weld Ball Valve

3PC Sanitary Socket Weld Ball Valve
Price: US $ 5-5.5/Set
Trade Terms: FOB,CFR,CIF
Min Order: 100/Set
Pay Type: L/C,T/T,Paypal,Western Union



Feature of product
name
3PC sanitary socket Weld Ball Valve
Designstandard port
Material of constructioninvestment casting
MaterialSS304/SS316/SS201/WCB
Working pressure1000WOG/PN63
Size range1/4"--4"(DN8-DN100)
End Connectionsocket   weld
Mode of operationManual
Optionwith locking device
Specification
Nominal pressurePN1.6 ,2.5,4.0,6.4 MPa
Strength testing pressurePT:2.4,3.8,6.0,9.6M.pa
Seat testing pressure(hight pressure)1.8,2.8,4.4,7.1Mpa
Applicable mediawater oil gas / Nitric acid /Acetic acid
Applicable temperature-40ºCto300ºC
Product standardASME B16.34
Wall thickness standardASME B16.34 GB12224
Inspection standardAPI598 EN12266
Product certificationPED 97/23/EC(CE2138) ISO900



Material of product's parts
NODESCRIPTIONQTYMATERIAL
1BODY1ASTM-A351-CF8MASTM-A216-WCB
2BALL1ASTM-A351-CF8MASTM-A351-CF8
3CAP2ASTM-A351-CF8MASTM-A216-WCB
4SEAT2PTFE/PPLPTFE/PPL
5JOINT GASKET2PTFE/PPLPTFE/PPL
6BOLT4-6SUS304SUS304
7NUT4-12SUS304SUS304
8SPRING WASHER1SUS304SUS304
9THRUST WASHER1PTFE/PPLPTFE/PPL
10O-RING1VITONVITON
11STEM PACKING1PTFE/PPLPTFE/PPL
12GLAND BUSH2SUS304SUS304
13BELLEVILLE WASHER1SUS301SUS301
14STOP WASHER1SUS304SUS304
15STEM NUT1SUS304SUS304
16STEM1SUS316SUS316
17HANDLE NUT1SUS304SUS304
18STOP PIN1SUS304SUS304
19HANDLE1SUS304SUS304
20HANDLE COVER1PLASTICPLASTIC
21THRUST WASHER1PTFE 15%PTFE 15%
22SQUARE WASHER1SUS304SUS304
23STOPPER1SUS304SUS304

1,quality is superiorand price is reasonable
2,well done !perfect after service
3, Weekly output: 10, 000 Sets Per Week
4, Payment term: L/C or T/T
5, Delivery time: 30-45 days after received the deposit.
6, Package detail: Inner CTN, ourside ply-wooden case
choose me
1, We are according to the requirements of customer to print logo
2, our products are well received both at home and abroad
3,Please be assured the quality is passed the CE certification
4,If you need we will meet all the demands
5. We are manufacturer
6,We will be answer within 24 hours, glad to contact with us if you have any problems, We are looking forward to cooperating with you.










Prod Model: Q11F-12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Weld: Welding
Place Of Origin: Zhejiang Pr,China
Brand: Sjfm
Connection Form: Welding
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage
Zhejiang WOD Valve Co., Ltd. Was founded in 2008. WOD company is a diversified manufacturer. It deals with research, design, manufacture, sales, import and export autonomy, self customs clearance

It is located in China Valve City---Wenzhou Economic and Technological Development Zone, Zhejiang Province, it is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.

WOD Company mainly produces medium and low pressure valves, Such as ball valve, gate valve, globe valve, check valve, strainer, cam lock coupling, manhole cover, water equipment etc. The material has ASTM 304, 316, WCB, etc. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. WOD series products are widely used in oil, gas, chemical, electric power, metallurgy, lifting, water supply, auto ship manufacturing oil-water road heating system control, food, pharmaceutical, daily chemical industry, municipal construction, mechanical equipment, etc.

WOD company has obtained CE, ISO9001 certifications, also been inspected and approved by SGS, TUV

Our production spirit and service concept is "Innovation, Serves attentively ". Welcoming customers from all over the world come to visit WOD company and attend technical exchange
