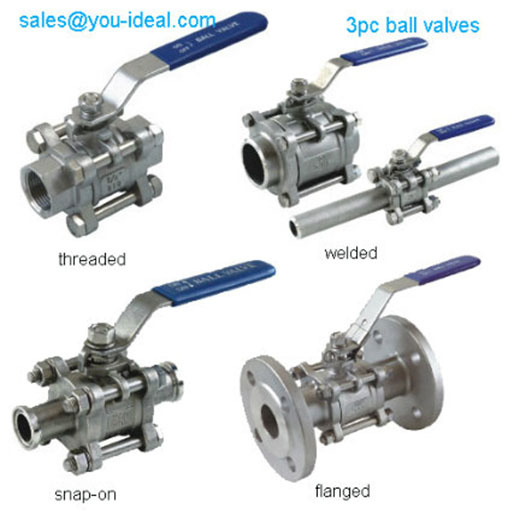

3PC Stainless Steel Threaded Ball Valve with Handle
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Short structure, best choice for application where with limit installation and operation space for 1PC ball valve.
Our wide range of ball valves are available in Bronze, Brass, Lead-free, PVC, Thermoplastic, Polypropylene, Carbon Steel and Stainless Steel in one-piece, two-piece, three-piece, full port, or standard port & pressures up to 11, 000 psi. And temperatures up to 1000° F (520° C). Port threads available in NPT, SAE, BSP, Metric, Flanged, Stecko, Clamp End, Butt Weld & Compression range in size from 1/4" thru 12". Ball valves are used extensively in Commercial, industrial and residential applications and are very durable, easy to repair and operate and provide a perfect shutoff even after years of use. Priced by each, box and volume quantity discounts available. Contact Tianjin U-ideal Instrument to email today and we look forward to assisting you with your Stainless Steel Ball Valves needs today.
Tianjin U-ideal manufacture and export manually, pneumatically, and electrically actuated two way and three way BallValves provide 1/4 turn (or diverting) for on-off control of fluids.
A ball valve is a flow valve with a round closure element and round seat that permits a tight shut off because of the uniform seal between the element and the seat. In compressed air applications, a ball valve is a valve controlled by a free floating ball manipulated by mechanical or fluid pressure.
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve Cryogenic Valve Water valve two or three ways valve hydraulic valve float valve pressure reducing valve.
Parts name | Material |
| ANSI/JIS/DIN | ANSI/JIS/DIN | ANSI/JIS/DIN |
| Body | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 | A216-WCB/SCPH2/1.0619 |
| Cap | A351-CF8M/SCS14A/1.4408 | A351-CF8/SCS13A/1.4308 | A216-WCB/SCPH2/1.0619 |
| Ball | SUS316 | SUS304 |
| Hexagon nut | A194-8 |
| Elastic gasket | SUS304 |
| Cap gasket | PTFE/VITON |
| Ball seat | PTFE/RPTFE/PPL |
| Stem | SUS316 | SUS304 |
| O-Ring | FKM(VITON) |
| Thrust washer | PTFE/RPTFE |
| Stem packing | PTFE/GRAFOIL |
| Belleville Washer | SUS304 |
| Stem Nut | SUS304 |
| Washer | SUS304 |
| Postion Handle | SUS201 |
| Stop bolt | SUS304 |
| Screws | SUS304 |
| Hexagon nut | A194-8 |
| Bolt | SA193-B8 |
| Prod Model: |
Q25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Threads Available In: |
NPT, SAE, Bsp, Metric, Flanged, Stecko, Clamp End |
| Available In: |
Bronze, Brass, Lead-Free, PVC, Thermoplastic, Poly |
| Body: |
A351-CF8m/Scs14A/1.4408 |
| Cap: |
A351-CF8m/Scs14A/1.4408 |
| Thrust Washer: |
PTFE/Rptfe |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Flexible Ball Valve |
| Type: |
Flexible Ball Valve |
| Application: |
Household Usage |
Tianjin U-ideal Instrument Co., Ltd is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
