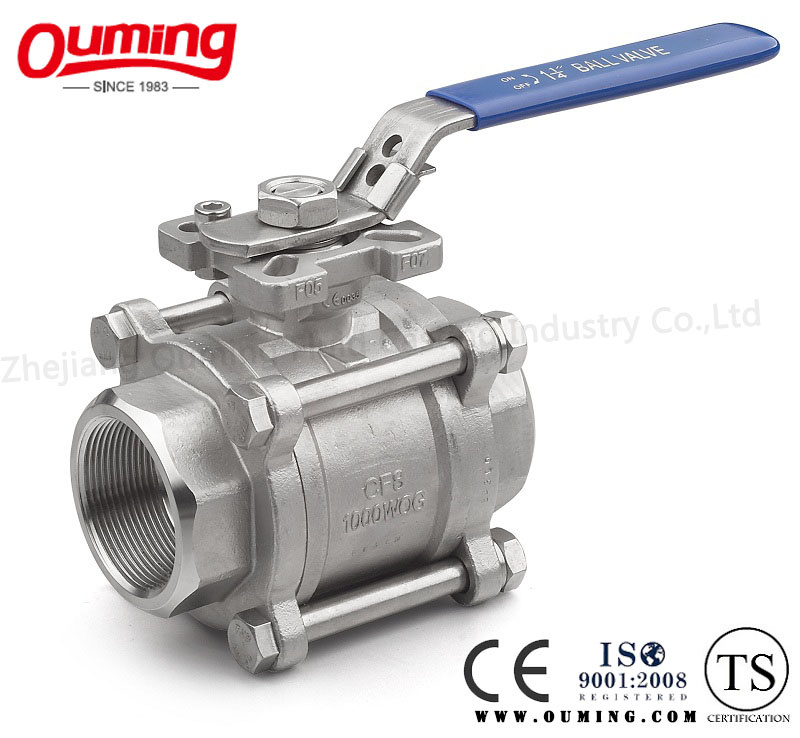

3PC Stainless Steel Threaded Ball Valve with Handle

3PC Stainless Steel Threaded Ball Valve with Handle
Price: US $ 1-10/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union

3-pc ball valve, full bore, 1000W.O.G



Size: 1/4" - 4"(DN8~DN100)
Full bore
Connection end: SW, BW, Hoop
Threaded end: NPT, BSPT, BSPF, DIN2999
Working pressure: 1000W.O.G
Suitable media: Water, oil, air and some corrosive liquids
The specifications can be designed and satisfied for customers' special requirement
OEM all kinds of ball valve


Main Parts Materials:

ItemPart NameMaterial
1BodyCF8/CF8M/WCB
2BallSS316/304
3End CapCF8/CF8M
4BoltingA193-B8
5Ball SeatPTFE
6PackingPTFE
7StemSS316/304
8GlandSS304
9HandleSS201
10NutA193-B8

 Specifications:

Size1/4"-4"
Material304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
Pressure1000WOG/1000PSI, 1.6-6.4Mpa
Medium Temp-20° C ~ +180° C
Ambient Temp-20° C ~ +60° C
Availably ConnectionNPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
PortFull Port, Reduced Port
Suitable MediumWater, Oil, Air and Some Corrosive Liquid
Design StandardASME B16.34
Inspection and TestingAPI 598

Your Success Is Our Business !



Prod Model: OM-3PTBV
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Stainless Steel
Connection Form: Thread
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Industrial Usage
Nominal Pressure: Pn16
Function: Cut off Valve
Zhejiang Ouming Fluid Casting Industry Co., Ltd was founded in 1983, the head office is located in valves and pumps capital-Wenzhou. It has more than 150 staffs and covers an area of 15000 square meters

We professionally manufacture valves, pipe fittings, castings and other fluid system equipments, including ball valves, gate valves, globe valves, check valves, diaphragm valves, Plug valves, sanitary butterfly valve, elbows, tees, union and other pipe fittings. All Products Strictly meet the GB, ANSI, JIS, DIN, BS, ISO, etc. They are widely used in Petrochemicals, Chemical, LNG& Cryogenics, Pulp & paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc. Besides, they have been exported to Europe, North America, Middle East, Southeast Asia regions, etc.

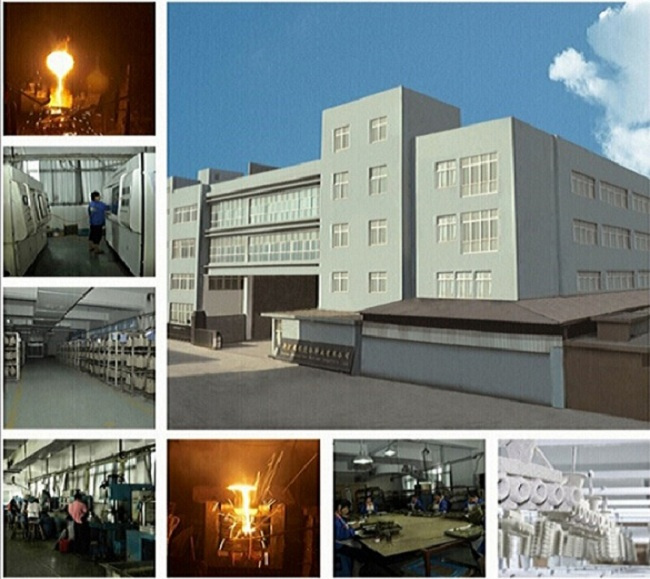

We are a modern manufacturer in valve, pipe fitting and casting with the silica sol investment casting process. We own modern high-precision casting equipment and advanced machining equipment and testing equipment. Eg, CNC machining centers, CNC lathes, Spectrometer, Ultrasonic Tester, Magnetic Particle Testing, etc. These equipments ensure the product's good quality and we are approved by ISO9001, CE and TS, etc.

We commit to provide supreme quality of products and 100% customer satisfaction service, based on the principle of honesty and trustworthiness, we focus on controlling quality, improving management and contentiously developing new market and enlarging our product range. Welcome to contact and join us for the promising business.
