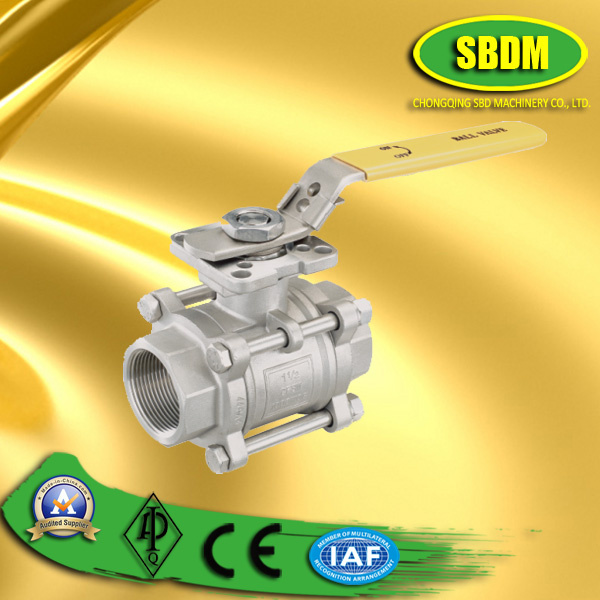

3PC Staniless Steel Thread Ball Valve - Product Features:
PRODUCT RANGE
1000 PSI from 1/2'' to 4''
2000 PSI from 1/2'' to 4''
MATERIALS
BODY: Carbon steel, Stainless steel, Low temperature carbon steel, Duplex, Special Alloys, ...Other materials under request
SOFT SEATS: PTFE, RPTFE, PEEK, DEVLON, NYLON, ...Other materials under request
METAL SEAT: Tungsten Carbide(TC), Stellited
, Ni60...Other materials under request.
TRIM: A105+ENP, 304, 316, 410, MONEL, ...Other materials under request
DESIGN STANDARDS
ASME Standards:
B1.20.1Pipe Threads, General Purpose(Inch)
B16.10Face-to-Face and End-to-End Dimensions of Valves
B16.25Buttwelding Ends
B16.11Forged Fittings, Socket-Welding and Threaded
B16.5Flanged Fittings and Pipe Flanges
B16.47Large Diameter Steel Flanges
API Standards:
6DSpecifications for Pipeline valves
598Valve Inspection and Testing
607Fire test for soft-seated quarter-turn valves
6FASpecification for Fire Test for Valves
MSS Standards:
SP-55Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Visual Method for Evaluation of Surface Irregularities
SP-54Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Radiographic Examination Method
SP-53Quality Standard for Steel Castings for Valves, Flanges, and Fittings and Other Piping Components-Magnetic Particle Examination Method
DESIGN FEATURE
3-pieces body, full bore. Fire-Safe certified, trunnion ball with spring loaded seats, blow out proof stem, flanged connections.
Non-removable antistatic devices assure electric continuity between ball and
Body through the stem.
All wetted component materials and bolting meet NACE MR. 01.75 latest edition as standard.
Asbestos free.
APPLICATION
Refinery
Chemical
Petrochemical
Power plant
Gas
CERTIFICATES
SBDM is one of high-tech manufacturer of valves and oil purifier machine, including R&D, manufacturing, sales and service.
We manufacture API6D BALL VALVE, API600 GATE VALVE, BS1868 CHECK VALVE AND BS1873 GLOBE VALVE. We also provide high quality oil purifier machine.
