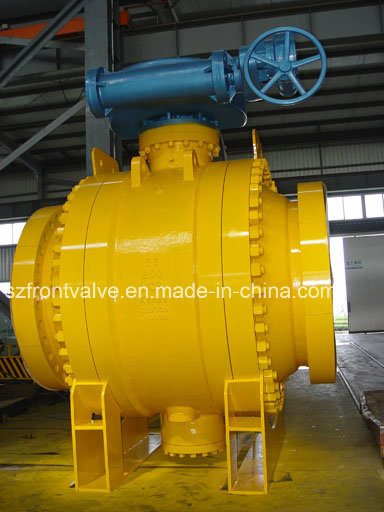

3PC Trunnion Mounted Gear Operated Ball Valve

3PC Trunnion Mounted Gear Operated Ball Valve
Price: US $ 1000-20000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Cast steel and Forged steel trunnion mounted Ball Valves

Standard compliance:
1) Design and manufacture: API6D, API608, BS5351, ANSI B16.34
2) Test and inspection: API6D, API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Fire safe: API607, API6FA
7) Other standards (DIN, BS, JIS) is also available upon request.

Specifications:
1) Size: 2" to 48"
2) Class: 150LB to 2500LB
3) Type: Floating ball and trunnion mounted, full bore or reduced bore, soft seated or metal seated, top entry or side entry, one-piece/two-piece/three-piece, anti-blow out stem, antistatic design
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, LF2, A105, F304, F316, F304L, F316L, F11, F22, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
5) Operation: Gear operation

Cast Steel Ball Valves - Trunnion Ball Type  Class 150 / 300 / 600 / 900 / 1500 / 2500
Design and manufacture: API 6D, API 608 , BS5351, ANSI B16.34
Test and inspection: API6D, API 598.
Face to face dimensions: ANSI B16.10
End flange dimensions: 2"~24" to ANSI B16.5,
                                     over 26" to MSS SP-44 to B16.47 SERIES A
                                                                          to B16.47 SERIES B
Butt-welding ends: ANSI B16.25
Fire safe: API607, API6FA
Type of operation: lever, gear

Materials of body/bonnet and trim
Body/bonnetWCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc.
BallSS304/SS316/S304L/SS316L
SeatPTFE, NYLON, METAL TO METAL


Type of operation: hand wheel, gear, electric or pneumatic actuator etc.

Standard materials of parts
No.PartsMaterials
1BodyASTM A216 WCB
2Bonnet boltASTM A193 B7
3Bonnet nutASTM A194 2H
4GasketPTFE
5BonnetASTM A216 WCB
6BallSS304
7SeatASTM A182 F6
8SpringAISI 6150
9Seat ringPTFE
10O-ringVITON
11StemA182 F6a
12Stem-beatingCu-Pb Alloy
13O-ringVITON
14Gland flangeASTM A216 WCB
15Stem packingPTFE or Flexible graphite
16YokeASTM A216 WCB
17Gear operationDuctile iron
18Small ballSS304
19Small springSS304
20Injection fitting
21PlugAISI 1025

Dimensions (in mm & inch) and weight
Class 150
DN506580100150200250300350400450500600700
NPS22.1/234681012141618202428
L(RF)17819120322939445753361068676286491410671245
L1(BW)21624128330545752155963576283891499111431346
L2(RTJ)1912032162414064705466226997758769271080
H15316519521327234249558062572079084010501150
Do (W)40040060085011001500*350*350*600*600*800*800*800*800
RF (Kgs)1519386597160240390510750895119021003000
BW (Kgs)1317355592.8154227365478711868113820152900


Class 300
DN506580100150200250300350400450500600700
NPS22.1/234681012141618202428
L(RF)21624128330540350256864876283891499111431346
L1(BW)21624128330545752155963576283891499111431346
L2(RTJ)232257298321419518584664778854930101011651372
H15316519521327234249558062572079084010501150
Do (W)40040060085011001500*350*350*600*600*800*800*800*800
RF (Kgs)1827478011820036553074010301320154026003900
BW (Kgs)1422386510518534250371310001285149825403825


Class 600
DN506580100150200250300350400450500
NPS22.1/23468101214161820
L(RF)29233035643255966078783888999110921194
L1(BW)29233035643255966078783888999110921194
L2(RTJ)29533335943556266479184189299410951200
H153165195213272342495580630725800850
Do (W)600850125013001500*350*350*600*600*800*800*800
RF (Kgs)385666122217350660820830116014201650
BW (Kgs)315158117200327605790800103013051505


Class 900
DN506580100150200250300350400450500
NPS22.1/23468101214161820
L(RF)3684193814576107378389651029113012191321
L1(BW)3684193814576107378389651029113012191321
L2(RTJ)3714223844606137408419681032113312221327
H162195205239290355510595650750835900
Do (W)600850125013001500*350*350*600*600*800*800*800
RF (Kgs)486078138250375710890910120014801760
BW (Kgs)44.552.575.2131232355690827870110012101620


Class 1500
DN506580100150200250300350400
NPS22.1/2346810121416
L(RF)368419470546705832991113012571384
L1(BW)368419470546705832991113012571384
L2(RTJ)3714224735497118421000.5114612761406
H197220254290355510595655680780
Do W)600*350*350*600*600*800*800*800*800*800
RF (Kgs)55809716229039074593510001305
BW (Kgs)517192.8157.52273356978859151200


* Worm gear or electric actuator operated.

All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.

Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
Prod Model: 3PC TR BALL VALVE
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2" to 48" or Larger
End Type: Flanged End and Butt Welded End
Port: Full Bore and Reduce Bore
Ball Type: Trunnion Mounted and Floating Ball
Pressure: 150lb to 2500lb
Seat: Soft Seat and Metal Seat
Entry Type: Side Entry and Top Entry
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Application: Water Industrial Usage
Material: Carbon Steel,Stainless Steel,Alloy Steel
Nominal Pressure: 150lb to 2500lb
Function: on-off
Shenzhen Front Valve Co., Ltd. is one of the leading supplier of various industrial valves, fittings, flanges and relative piping accessories in China. We have been working in this line for more than 10 years, exporting our products to all over the world, such as Europe, USA, South America, Africa, Middle-East, Australia etc. Our quality and good reputation are highly valued by our customers.
