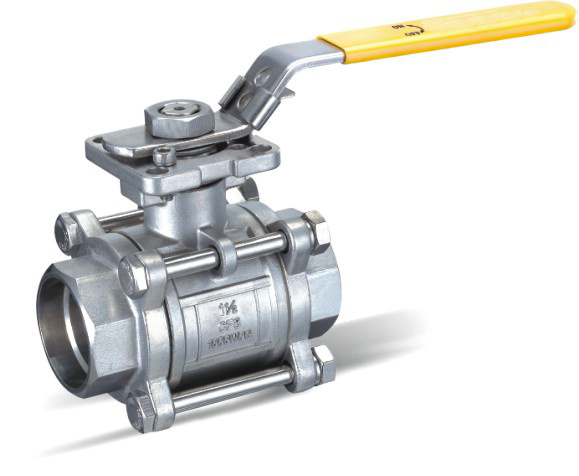

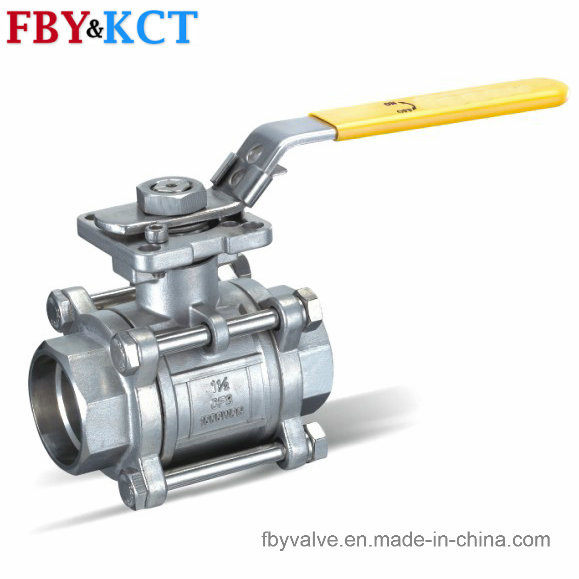

3PCS Body Socket Welding Ss Material Ball Valve

3PCS Body Socket Welding Ss Material Ball Valve
Price: US $ 10-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T

3pc Socket Weld Ball Valve



Detailed Product Description








Full Silicasol technology

ISO5211 direct mounting pad

Full silicasol technology

Working pressure:1000WOG

Temperature Range:-20oC~250oC

Size:1/2"-4"

Socket welding standard:GB12224.ANSIB 16.25

Suitable medium:water,oil,air and some corrosive liquid

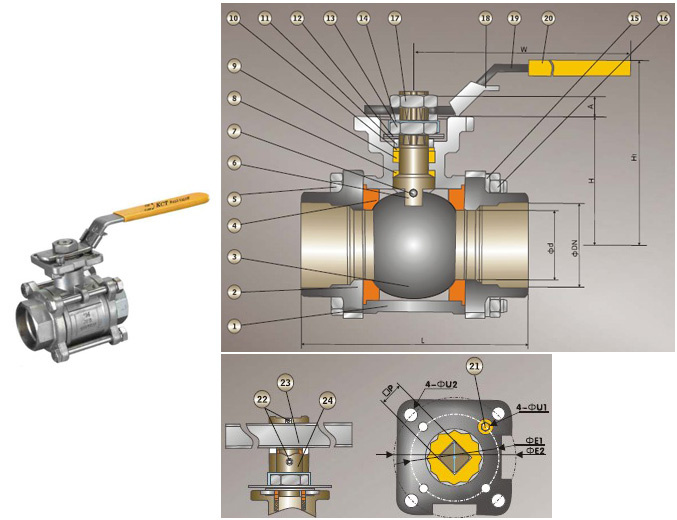

DN(inch) ΦD L H H1 A W ΦE1 ΦE2 P ΦU1 ΦU2
1/2" 15 79 42 72 8 135 36 42 9 6 6
3/4" 20 82 48.5 80 9 135 36 42 9 6 6
1" 25 90 58.5 90 11 170 42 50 11 6 7
1-1/4" 32 112 63 95 11 170 42 50 11 6 7
1-1/2" 38 120 71 106 14 200 50 70 14 7 9
2" 50 144 78 113 14 200 50 70 14 7 9
2-1/2" 65 176 100 149 17 300 70 102 17 9 11
3" 76 200 109 159 17 300 70 102 17 9 11
4" 100 227 140 205 22 400 - 102 22 - 11

  Main parts and materials
No. Parts Description Material
1 Body CF8M CF8 WCB
2 Bonnet CF8M CF8                   WCB
3 Ball SS316 SS304
4 Seat PTFE  RPTFE  PPL
5 Nut A193-B8 A193-B7
6 Stem SS316 SS304 2Gr13
7 Anti-Static SS304
8 Thrust Washer PTFE
9 Packing PTFE
10 Transition Washer RPTFE     Expanded Graphite
11 Packing Ring SS304
12 Belleville Washer SS304
13 Nut SS304
14 Loose Resistant Cover SS304
15 Spring Washer SS304
16 Nut SS304
17 Handle Nut SS304
18 Stop Plate SS304
19 Handle                                         SS304
20 Handle Cover Plastic
21 Stop Bolt SS304
22 Lock Screw SS304
23 Handle SS304
24 Hand Adapter CF8

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage
Function: Ball Valve
Connection Form: Socket Welding
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.

In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.

KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.

According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.

Welcome Friends to contact us from all over the world to establish business with us.
