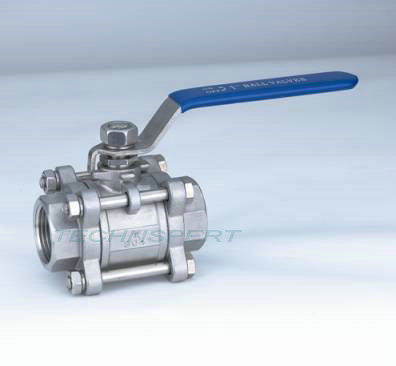

3PCS Ball Valve Standard
3PCS Ball Valve Standard
Design: API 6D API 608, ANSI B16.34 or BS 5351
Face to Face: ANSI B16.10
End flange: ANSI B16.5
Test: API 6D, API 598
3PCS Ball Valves Features
Technology: Casting
Connection type: Threaded
Size: From 1/4" to 4"
Main material: CF8, CF8M, CF3, CF3M, WCB, A105
Working pressure: 1000 PSI WOG
Temperature Range: -40~180~280C
Suitable medium: Water, oil, steam, nitric, acid, acetate acid and some corrosive liquids
Thread standard: G. NPT, BSPT. BSP. DIN259/2999
Operation: Lever
Supply ball valve, forged steel ball valves, casting steel ball valves, floating ball valves and trunnion mounted ball valves.
|
Description parts |
Q 11F -(16-64)C |
Q 11F -(16-64)P |
Q 11F -(16-64)R |
|
|
|
|
Body |
WCB |
ZG1CR18NI9TICF8 |
ZG1Cr18Ni12Mo2TiCF 8M |
|
|
|
|
Bonnet |
WCB |
ZG1CR18NI9TICF8 |
ZG1Cr18Ni12Mo2TiCF 8M |
|
|
|
|
Ball |
1Cr18Ni9Ti304 |
1Cr18Ni9Ti304 |
1Cr18Ni12Mo2Ti316 |
|
|
|
|
Stem |
1Cr18Ni9Ti304 |
1Cr18Ni9Ti304 |
1Cr18Ni12Mo2Ti316 |
|
|
|
|
Seal ring |
Polytetrafluoroethylene (PTFE) |
|
|
|
|
packing |
Polytetrafluoroethylene (PTFE) |
|
|
|
|
|
|
|
|
|
|
DN |
G |
L |
H |
W |
|
6 |
1/ 4” |
65 |
52 |
105 |
|
10 |
3/8: |
65 |
52 |
105 |
|
15 |
1/ 2” |
70 |
65 |
130 |
|
20 |
3/4: |
80 |
70 |
130 |
|
25 |
1’ |
90 |
78 |
150 |
|
32 |
1 1 1/ 4’ |
110 |
82 |
180 |
|
40 |
1 1 1/ 2’ |
120 |
90 |
200 |
|
50 |
2” |
140 |
98 |
200 |
|
65 |
2 1 1/ 2’ |
160 |
140 |
240 |
|
80 |
3’ |
180 |
155 |
265 |
|
100 |
4” |
216 |
122 |
300 |
