3PCS Forged Steel Floating Ball Valve
| Price: |
US $ 3-65/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |

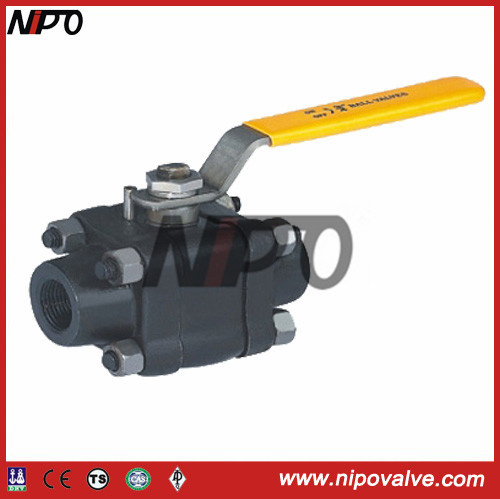

Forged Steel Floating Ball Valve
Forged steel ball valves have two structures.One is of 2PCS structure, threaded bonnet, RPTFE or PEEK seal.
The other is of 3PCS structure. Bolted tailpieces.
Different materials for seats, gaskets and packing may be
Chosen acc. To different using conditions.Construction is as follows
Full port or conventional port;
90° Locating and lock structure;
Special Y type handle;
Fire proof and anti static;
Mounted flange as per ISO 5211;
Blow out Proof stem;
Double sealing for the stem;
Bolted bonnet;
Socket welded ends to ASME B16.11;

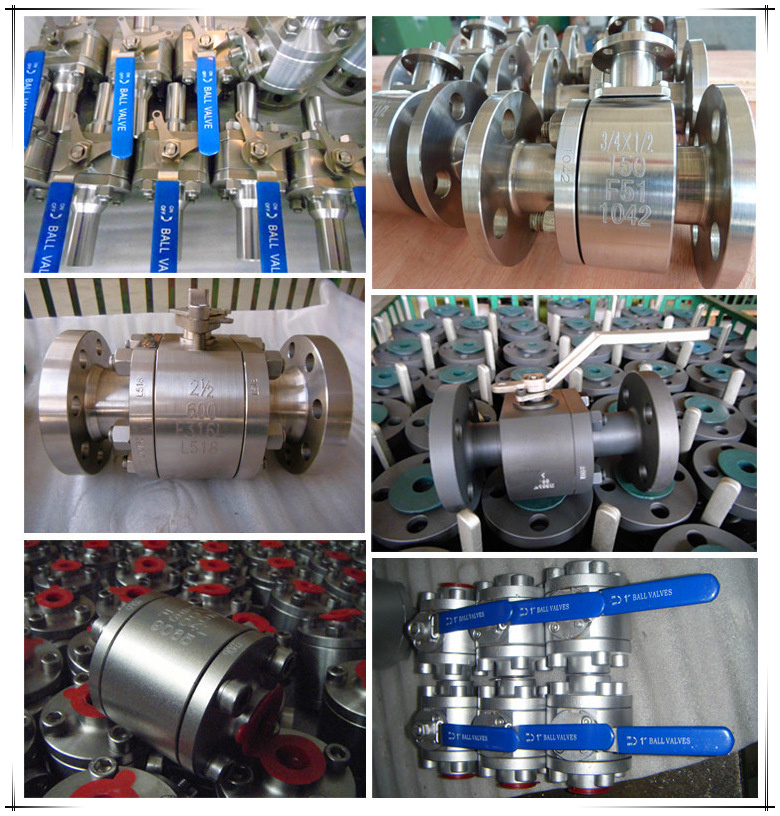

Screwed ends (NPT) to ANSI/ASME B1.20.1.PRODUCTS

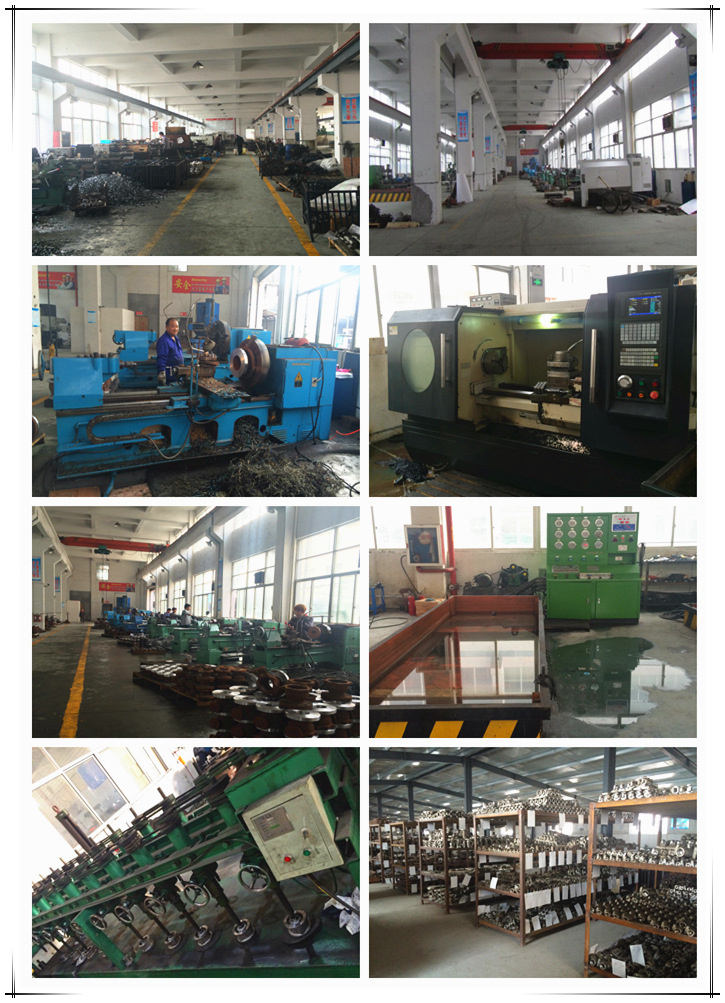

WORKSHOP

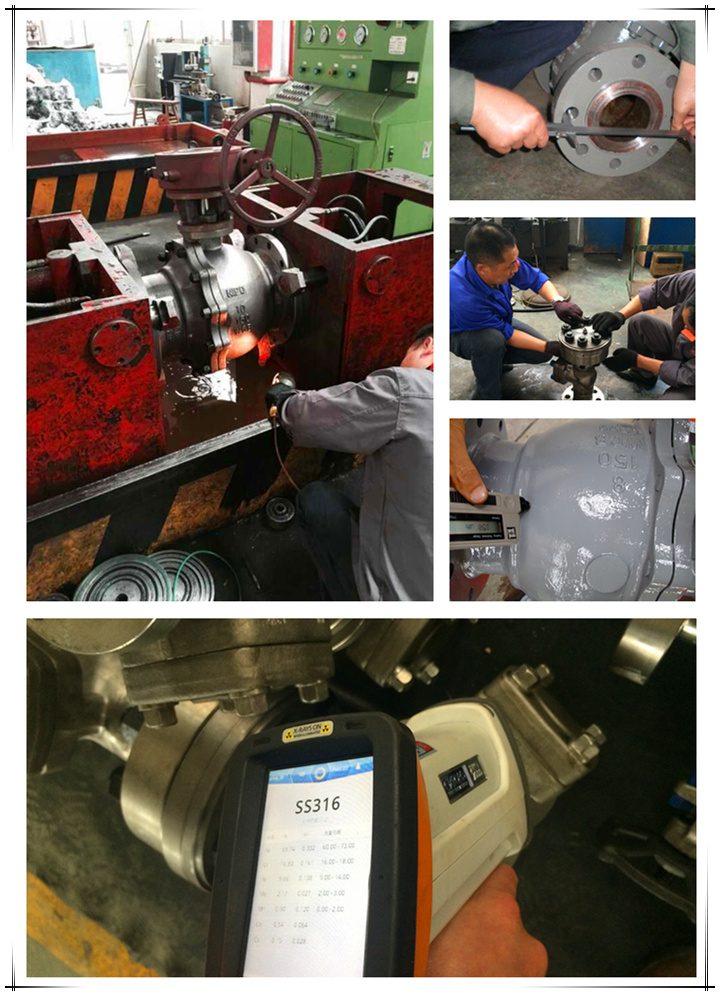

INSPECTION
We welcome all the world customers to contact us for more cooperation.
With our years of technical knowledge and experience,we assure you,
Naibang will be one of your best parters in China.Any interest,please do not hesitate to contact us.| No. | Part | Material |
| 1 | Bonnet | ASTM A105+ENP A182-F6,F304,F316,F316L,F304L,F51 |
| 2 | Seat | PTFE RPTFE PEEK PPL |
| 3 | Body Gasket | PTFE Graphite |
| 4 | Thrust-Washer | A105+ENP A182-F6,F304,F316,F316L,F304L,17-4PH,F51 |
| 5 | Stem | Stainless Steel |
| 6 | Stop Nut | Carbon Steel |
| 7 | Spring Gasket | A216-WCB 10256+Cr |
| 8 | Lever | ASTM A182-F304,F316 |
| 9 | Backup Ring | 1015+Cr Carbon Steel+Cr |
| 10 | Limited Plate | Stainless Steel |
| 11 | Positioning pin | PTFE Graphite |
| 12 | Packing | PTFE |
| 13 | "O"-Ring | NBR Viton |
| 14 | Antistatic Spring | Stainless Steel SS316 |
| 15 | Ball | ASTM A105+ENP ASTM A182-F6,F304,F316,F316L,F51 |
| 16 | Body | ASTM A105+ENP A182-F6,F304,F316,F316L,F304L,F51 |
| 17 | Stud | ASTM A193-B7,B8M,B8,B8M |
| 18 | Nut | ASTM A194-2H,2HM,8,8M |
| Prod Model: |
Q41F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8" to 2" |
| Class: |
150lb to 2500lb |
| Certificates: |
API 6D, CE, ISO9001 |
| Application Fields: |
Metallurgy,Light Industrial,Electric Power,Petroch |
| Delivery Detail: |
20~45 Days According to The Specific Quantities |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Water Industrial Usage |
| Nominal Pressure: |
150lb to 2500lb |
Zhejiang NaiBang Valve Co., Ltd. is a specialized company devoted into manufacture and sales of valves, the company situates in ou-bei town-the center of China's pumps & valves, with ground area 18800m2, machine workshop, assemble workshop and synthetic finished half - finished warehouse. The company possesses 210 precise equipments, the advanced numeral control machines ensure the flexibility and exchangeability of all the product parts. The company flourishes year by year, and its products have been widely used in lines of domestic large PowerStation configuration, dirty water processing, urban construction, petroleum-chemical, oil extraction, metallurgy, chemical fertilizer, paper production and pharmacy, exported to many countries and regions, gains the users' unanimous praise and confidence.
The company has a modernized staffs of tech research and product development, ISO9001 certificated. And now the company has the capability of manufacturing big series of high temperature and hi-gh pressure power station gate valve, ball valve, globe valve, check valve, butterfly valve, with the strength of API valve, Wafer check valve and forged valve, and the wafer check valve mainly cover wafer single disc lift and swing check valves and wafer double disc swing check valves (H77, H76, H74, H72, H71, H46 and H44). Diameter of valves varies from DN15 to DN2000(1/2'-72' ), working pressure varies from PN1.6MPa to 42 MPa(150lb to 2500lb), and working temperature from -196 Celsius degree to +570 Celsius degree; The main body adopts WCB, WC6, WC9, Cr5Mo, 20Crmo, 12Crmov, 15Crmov, CF3m, CF8m. The company possesses full precise casting equipments, integrated physical and chemical gauges, experimentation equipments and test methods, as well CAD design capability, which ensure products always in high quality.
