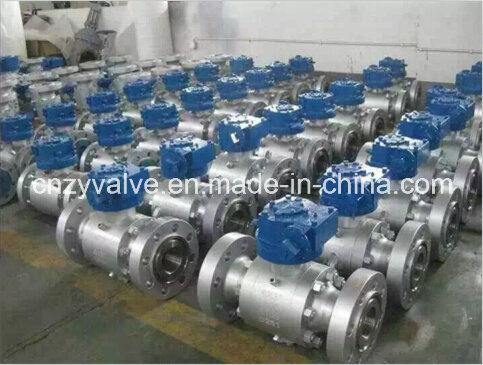

3PCS Trunnion Forged Steel High Pressure Ball Valve

3PCS Trunnion Forged Steel High Pressure Ball Valve
Price: US $ 500/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

3PCS Trunnion Forged Steel High Pressure Ball Valve
1.Trunnion Ball Valve
NPS 2″~36″
ANSI CLASS 150~2500
MATERIAL: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
DESIGN STD: API 608, API 6D, BS 5351
FACE TO FACE STD: ASME B16.10, API 6D
END CONNECTION STD: ASME B16.5, ASME B16.47, ASME B16.25
TEST STD: API 598, API 6D, BS 6755

2.CLASS 150~300 FLOATING BALL VALVE
Bolted bonnet,Two-piece Body,Floating Ball
Full or Reduced bore,Blowout Proof Stem
Fire safe and Anti static
Stainless steel ball
ASTM A216 WCB,A351 CF8,A351 CF8M,
A351 CF3,A351 CF3M,A351 CN7M


Standards compliance
Design and Manufacture: API 608,API 6D,BS5351
Face to face(end to end): ANSI B16.10,API 6D
Flanged connection:2~~24~to ANSI B16.5
Fire-safe: API 607,API 6FA


Part Names
Part Materials
BodyWCB/A105LCB/LF2WC6/F22CF8/F304CF8M/F316CF3/F304LCF3M/F316L
BonnetWCB/A105LCB/LF2WC6/F22CF8/F304CF8M/F316CF3/F304LCF3M/F316L
BallA105+ENPSS304F22SS304SS316SS304LSS316L
StemA105F304F6aF304F316F304LF316L
Seat/Seat Ring13%CrSS30413%CrSS304SS316SS304LSS316L
PackingGraphite/PTFE
GasketSS304+Graphite/SS304+Graphite
Bolts/NutsB7/2HL7/4B16/4B8/8B8M/8MB8/8B8M/8M
Suitable MediumW.O.G etc.HNO3, CH3OOH etc.
Suitable Temperature-29~425 °C-46~340 °C-46~340 °C-196~427 °C-196~427 °C-196~427 °C-196~427 °C



Butt welded end: ANSI B16.25
Test and inspection: API 598,API 6D
Prod Model: Q347F-1500LB-NPS3"
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Alloy
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Application: Water Industrial Usage
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.

The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.

The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
