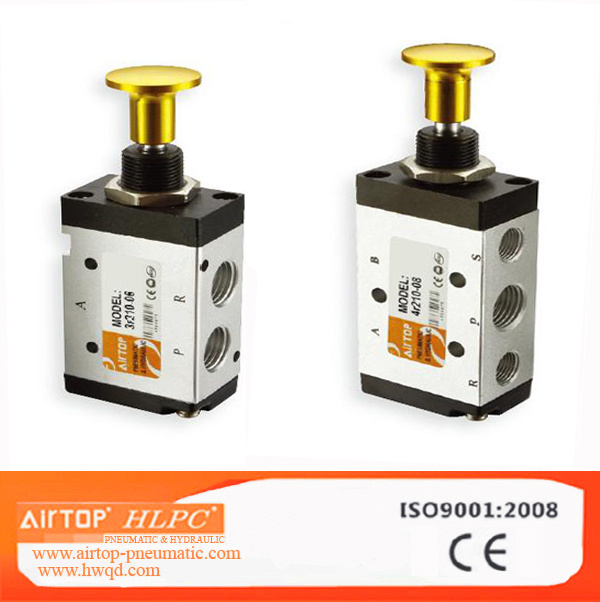

3r/4r Series Pneumatic Hand-Draw Valve
| Price: |
US $ 30-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T |
Ordering Code:
4R - 2 - 10 - 06
4R: Specification Code 4R: Two-position Five-way Hand-draw Valve 3R: Two-position Three-way Hand-draw Valve;
2: Series Code 200/Series;
10: Number of Places 10: 10: Single-head Double-position;
06: Joint Pipe Bore: 06: G1/8 08: G1/4;
Model: 4R210-06 4R210-08 3R210-06 3R210-08;
Working Medium: 40 Micron Filtered Air;
Joint Pipe Bore: G1/8 Air Inlet=Air Outlet=G1/4 Exhaust=G1/8 G1/8 G1/4;
Effective Section Area: 14 mm² (CV=0.78) 16 mm² (CV=0.89) 14 mm² (CV=0.78) 16 mm² (CV=0.89);
Working-pressure Range: 0~0.8Mpa;
Operating Temperature Range: 0~60º C;
Position and way number: Two-position Five-way Two-position Three-way.
| Prod Model: |
3R/4R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial Usage |
Ningbo AirTOP Pneumatic Hydraulic Co., Ltd.(AirTOP) specializes in manufacturing pneumatic and hydraulic components, including pneumatic cylinders, solenoid valves, directional valves, mechanical valves, FRL units, pneumatic fittings, PU tubes, air guns, power chuck, hydraulic cylinders, standard jaw etc.
Our factory - Hongwei Pneumatic & Hydraulic Kit Factory (HLPC) was established in 1988.Over twenty years' manufacturing experience in pneumatic and hydraulic field laid solid foundation for excellent quality.ISO9001:2008 Quality System and CE Certifications ensure every component to be precise, accurate and durable.
AirTOP has imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines, ultrasonic washing machines etc.Seals are from American Parker, Japan and Germany, pursing excellent quality and developing various products for global market.
Today, AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market.AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.
"Quality Reliable, Credit First, Customers Uppermost" is AirTOP's persistent and permanent pursuit.AirTOP will continuously provide our customers with the highest quality/price rate products and the best service, supporting our agents grow in this competitive world with the most favorable terms and making our end-users satisfied and assured by using our products.AirTOP sincerely hopes that we can keep up with the times of the development paces of pneumatic industry and world automation, continuously pursuing excellent quality and developing new products for our customers in the world automation industry.
