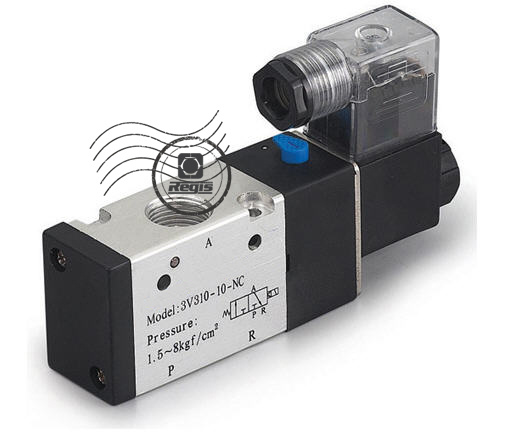

3V Series Pneumatic Solenoid Valve (3V100, 3V200, 3V300)
| Price: |
US $ 3.20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Regis's all-new directional valves are available in two-way, three-way configurations in port sizes from M5 to 1/2". Select either a direct-acting poppet or solenoid-controlled pilot operated balanced spool design. Spool valves are body ported but can be bolted to a parallel circuit manifold.
These electronic valves offer high flow in a small package, and are constructed of aluminum, stainless steel and thermoplastic materials. The four-way valves are also available in 3 position versions with either pressure center, closed center or exhaust center spool options.
Materials: Aluminum, Stainless Steel, Thermoplastic
Maximum Pressure: Vacuum to 150 psig (direct acting only); 20 to 125 psig (spool valves)
Response Time: Less than 20 ms
Mounting: Manifold standard.
Manual Override: Locking or non-locking
Electrical Connection: DIN terminal with LED Indicator or Wire Lead
Temperature Range: 0 to 65°C (32° to 150°F)
Seals: NBR
3V Series Solenoid Valve
4V series solenoid valves are suitable for operating double or single acting cylinders in pneumatic control system. They have 5 ports and 2 or 3 positions. And 4 type's valve bodies are provided. They are 3V100, 3V210, 3V310 and 3V410 etc. The ports size can be from M5 to 1/2".
The solenoid operated valves can be mounted in line.
The pilot valve is supplied with manual override and connector as standard.| Specifications:3V100,200,300 Series |
| Model | 3V110-M5 | 3V110-06 | 3V210-06 | 3V210-08 | 3V310-08 | 3V310-10 |
| 3V120-M5 | 3V120-06 | 3V220-06 | 3V220-08 | 3V320-08 | 3V320-10 |
| Fluid | Air |
| Action | Internally piloted |
| Port size | In=Out=M5 | In=Out=1/8 | In=Out=1/4 | In=Out=3/8 |
| Type of actuation | 3 port 2 position |
| Ambient and fluid temperature | -5~60ºC(No freezing) |
| Orifice size | 5.5mm²(Cv=0.31) | 12mm²(Cv=0.67) | 14mm²(Cv=0.78) | 16mm²(Cv=0.89) | 25mm²(Cv=1.39) | 30mm²(Cv=1.68) |
| Lubrication | Not required |
| Operating pressure range | 0.15~0.8Mpa |
| Proof pressure | 1.2Mpa |
| Power consumption | AC380V:2.5VA,AC220V:2.0VA,AC110V:2.5VA,AC24V:3.5VA,DC24V:3.0W,DC12V:2.5W |
| Protection | IP65(DIN40050) |
| Electrical entry | DIN terminal |
| Material of body | Aluminum alloy |
| Max.operating frequence | 5Hz |
| Insulation | F class |
| Allowable voltage fluctuation | -15%~+10% of rated voltage | -15%~+10% of rated voltage |
| Min.activate time | 0.05sec |
| Prod Model: |
3V310, 3V320, 3V330 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve Type: |
Airtac Type |
| Type: |
Pilot Operated |
| Connection Form: |
Thread |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Water Industrial Usage |
