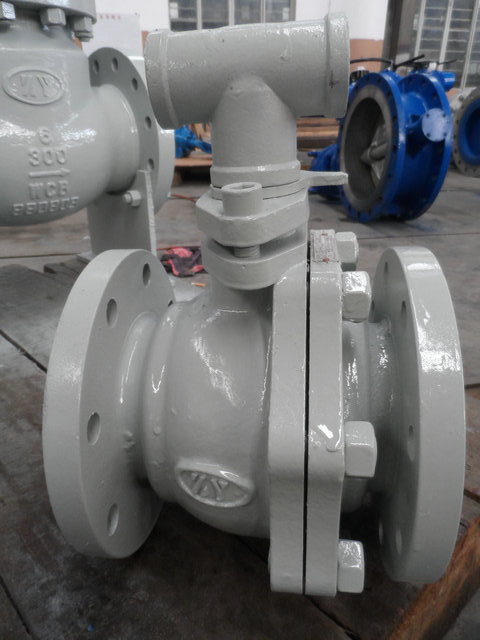

4.0Mpa DN50 DIN Standard Ball Valve
Description:
ZHONGYA Floating ball valves mainly apply to the industries of nature gas, oil products, chemical industry, metallurgy, city construction, medicine, environment, foods, etc. As on /off control units. Its body is made of casting or forging; The ball is floating, the ball moves (floats) downstream to maintain close contact with downstream seat to form a reliable seal under the medium pressure when closes. The seat special design has the wearing complementary structure to ensure safe reliable sealing and long stable operation of this series of ball valve. It has the merits of sealing reliability, long life cycle usage and easy operations.
Applicable Standard:
Design Standard: API 6D, ASME B16.34, API 608, BS 5351, MSS SP-72
Face to Face: API 6D, ASME B16.10, EN 558
End Connection: ASME B16.5, ASME B16.25
Inspection and Test: API 6D, API 598
Products Range
Size: 2" ~ 12" (DN50 ~ DN300)
Rating: ANSI 150lb, 300lb, 600lb
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel
Trim: A105+ENP, 13Cr, F304, F316
Operation: Lever, Gear, Electric, Pneumatic, Hydraulic
Design Features:
Full port or reduced port
Floating ball design
Blowout-proof stem
Casting or forging body
Fire safe design to API 607/ API 6FA
Anti-static to BS 5351
Cavity pressure self relief
Optional locking device
| PN | DN | d1 | D | b | k | h1 | d3 | S | h2 | d4 | f | Bolts Num. | d2 | d5 | d6 | d7 | e | Flanges weight |
1 | 2 |
DIN 2632 | 10 bar | 200 250 300 350 400 500 600 700 | 219.1 273.0 323.9 355.6 406.4 508.0 610.0 711.0 | 219.0 273.0 325.0 351.0 402.0 500.0 609.6 720.0 | 340 395 445 505 565 670 780 895 | 24 26 26 26 26 28 28 30 | 295 350 400 460 515 620 725 840 | 62 68 68 68 72 75 80 80 | 235 292 344 385 440 542 642 745 | 5.9 6.3 7.1 7.1 7.1 7.1 7.1 8 | 16 16 16 16 16 16 18 18 | 268 320 370 430 482 585 685 800 | 3 3 4 4 4 4 5 5 | 8 12 12 16 16 20 20 24 | 22 22 22 22 26 26 30 30 | 220 274 325 368 420 520 620 720 | 272 327 377 437 488 593 694 809 | - - - - - - - - | 2 2 2 2 2 2 2 2 | 11.3 14.7 17.4 23.6 28.6 38.1 44.6 62.4 |
DIN 2633 | 16 bar | 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 | 26.9 33.7 42.4 48.3 60.3 76.1 88.9 114.3 139.7 168.3 219.1 273.0 323.9 355.6 406.4 | 28.0 34.0 42.0 48.0 60.0 76.0 89.0 114.0 140.0 168.0 219.0 273.0 325.0 351.0 402.0 | 105 115 140 150 165 185 200 220 250 285 340 405 460 520 580 | 16 16 16 16 18 18 20 20 22 22 24 26 28 30 32 | 75 85 100 110 125 145 160 180 210 240 295 355 410 470 525 | 38 38 40 42 45 45 50 52 55 55 62 70 78 82 85 | 40 45 56 64 75 90 105 131 156 184 235 292 344 390 445 | 2.3 2.6 2.6 2.6 2.9 2.9 3.2 3.6 4 4.5 5.9 6.3 7.1 8 8 | 6 6 6 7 8 10 10 12 12 12 16 16 16 16 16 | 58 68 78 88 102 122 138 158 188 212 268 320 378 438 490 | 2 2 2 3 3 3 3 3 3 3 3 3 4 4 4 | 4 4 4 4 4 4 8 8 8 8 12 12 12 16 16 | 14 14 18 18 18 18 18 18 18 22 22 26 26 26 30 | 28 35 43 49 61 77 90 115 141 169 220 274 325 368 420 | 60 70 81 91 106 126 141 161 191 217 272 328 383 443 494 | - - - - - - - - - - - - - - - | 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 | 0.95 1.14 1.69 1.86 2.53 3.06 3.70 4.62 6.30 7.75 11.0 15.6 22.0 31.2 39.3 |
DIN 2635 | 40 bar | 20 25 32 40 50 65 80 | 26.9 3.7 42.4 48.3 60.3 76.1 88.9 | 28.0 34.0 42.0 48.0 60.0 76.0 89.0 | 105 115 140 150 165 185 200 | 18 18 18 18 20 22 24 | 75 85 100 110 125 145 160 | 40 40 42 45 48 52 58 | 40 46 56 64 75 90 105 | 2.3 2.6 2.6 2.6 2.9 2.9 3.2 | 6 6 6 7 8 10 12 | 58 68 78 88 102 122 138 | 2 2 2 3 3 3 3 | 4 4 4 4 4 8 8 | 14 14 18 18 18 18 18 | 28 35 43 49 61 77 90 | 60 70 81 91 106 126 141 | - - - - - - - | 2 2 2 2 2 2 2 | 1.06 1.29 1.88 2.33 2.82 3.74 4.75 |
