Specifications
1.Nominal diameter: 4" 2.Working pressure: 0.6Mpa 3.Max flow rate: 2500L/min 4.Open method: Mechanical

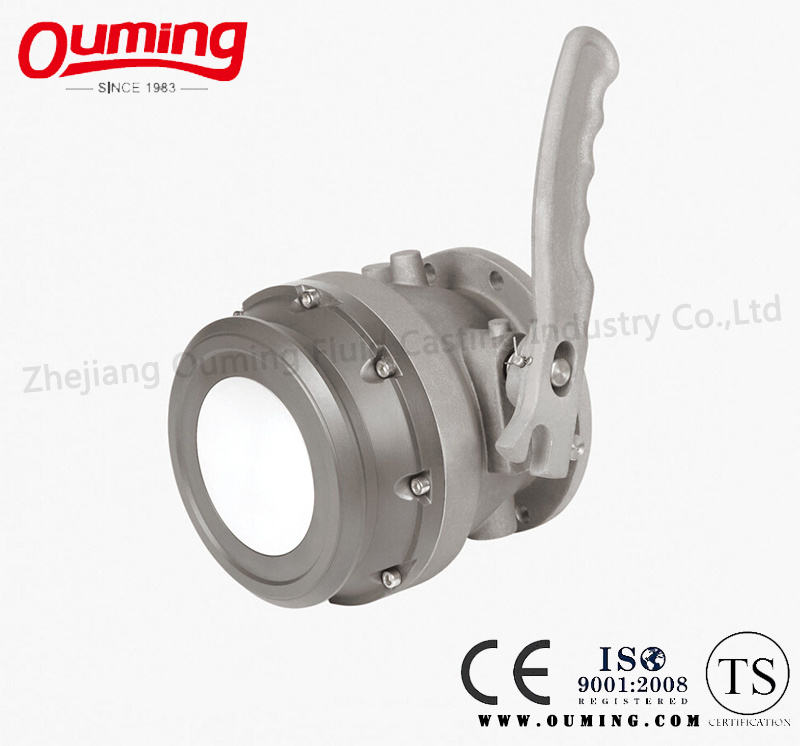

1. API Adaptor Valve C806C-100
API Adaptor Valve is installed on one side of the bottom of the tanker, with the design of quick connecting structure. Interface dimension is designed according with the API RP1004 standards. This is an important component of the bottom loading system to get quick detachment without leakage,it is much more safe and reliable when doing the work of loading and unloading. This product is suitable for water, diesel, gasoline and kerosene and other light fuel, but it can not be used in corrosive acid or alkali medium.
2.Benefit & Feature
* Hardening Treatment
The whole valve body is passed a special hardening process to improve its service life.
* Second Gear Open
When do the handle open, there are two stalls to set the flow rate according to the customers' demand.
* Standardized Size
Interface dimension is designed according to the API RP1004 standard, docking with the standard API connector.
* Light Weight
The main body is made of aluminum alloy,it is more light and sturdy.
* Superior Process Performance
Reasonable design for the less pressure differences ensures the large input and output flow rate.
* With the Sight Glass
Convenient to observe the inner working situation.
* Foundation for Interlock Valve
When install the interlock valve,the API Adaptor can be controlled by air.
* Easy- Maintenance
When in the situation of no need to replace the valve, just to replace the sealing gasket.
