Design Feature:

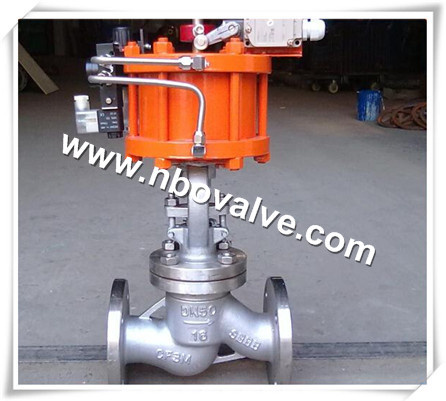

BS 1873 Cast Steel Globe Valve Conform to BS1873, and ASME B16.34.
They are tested according to API 598, and marked as per MSS SP-25
Construction is as follows:
- Regular Port |
- Outside Screw and Yoke(OS&Y) |
- Bolted Bonnet with spiral-would gasket, threaded and seal welded bonnet and threaded and pressure seal bonnet |
- Backseat |
- Solid Disc(Plug, Ball/Spherical, Throttling) |
- Butt Weld Ends to ASME B16.25 |
- Flanged Ends to ASME B16.5 and B16.47 A/B |
Bellow Seal lobe Valve:
Pressure: PN 1.6mpa--PN 16 mpa
Temperature: -29 ~+350C
Pressure Sealing Globe Valve:
Pressure: Class 600--Class 2500
Size: 2"--12"
Main Part & Materials
Part Names | Part Materials |
Body | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
Bonnet | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
Disc/Ball/Wedge | WCB | LCB | WC6 | CF8 | CF8M | CF3 | CF3M | C83600/C95800 |
Stem | F6a | F304 | F6a | F304 | F316 | F304L | F316L | C83600/C95800 |
Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L | C83600/C95800 |
Packing | Graphite/PTFE |
Gasket | SS304+Graphite/SS304+Graphite |
Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M | B8M/8M |
Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | Sea Water etc. |
Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C | -29~220 °C |
Should you need the further information or queston on the valve, don't hesitate to contact us.
