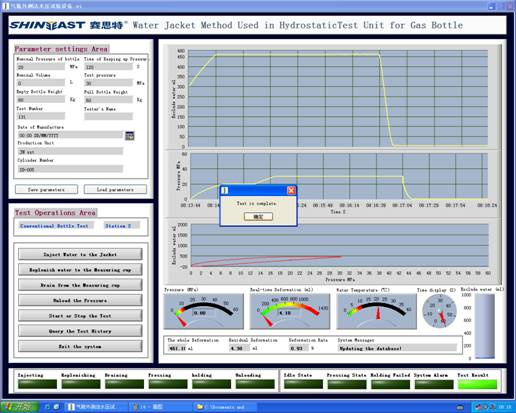

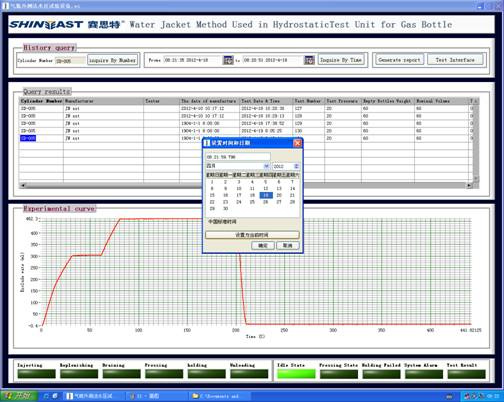

SY-02 hydrostatic test machine is mainly used for cylinder pressure test and meantime getting gas cylinder volume residual deformation rate, adopting computer control, with LABVIEW software.
Applicable gas cylinder: Nitrogen cylinder, oxygen cylinder, argon cylinder, CNG cylinder, LPG cylinder, CO2 cylinder etc.
Testing method: Water water testing method
Control mode: Computer control
Testing medium: Water
Testing pressure: 0-40Mpa
System configuration:

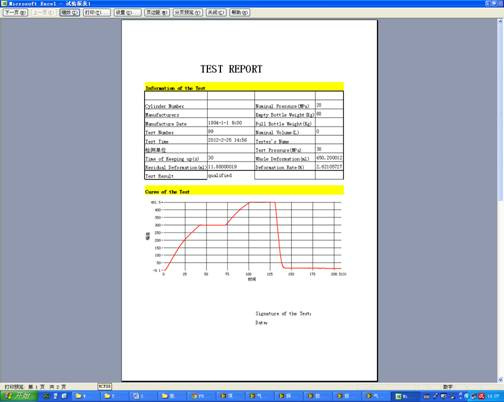

The machine mainly consists of Hydrostatic test device, computer control device, water jacket (2 pieces), pipelines, hoses, electronic balance, measure cup, printer, control valves etc.Working principle:Put the cylinder into a water jacket and boost the cylinder by high pressure pump; It will automatically dwell at a set pressure and do pressure test on the cylinder. At the same time, the cylinder volume expands under test pressure and squeezes some water from water jacket into the measuring cup, and the water in the measuring cup now is the testing cylinder volume deformation, and then the water is transferred to PC by water collection system; The cylinder elastic deformation disappears after pressure relief, then the water flows back from measuring cup to water jacket. However, the remaining water in the measuring cup is still more than that before boosting the cylinder and the extra water volume is the testing cylinder volume residual deformation, and this is transferred to computer through water collection system; The gas cylinder volume residual deformation rate is the ratio of the testing cylinder volume residual deformation to all deformation.
Main technical parameter:
|
Equipment name |
SY-02 hydrostatic test machine |
|
Testing cylinder size |
Capacity: up to 130L; Length: up to 2000mm |
|
Core component |
Shineeast air driven liquid pump (GD64) |
|
Number of water jacket |
2 pieces |
|
Max. output pressure |
51Mpa |
|
Test pressure |
0-40Mpa |
|
Air pressure |
0.6-1.0Mpa |
|
Work power |
AC220V/60HZ motor single phase-60HZ |
|
Control mode |
Computer Control (automatic control) |
|
Applicable medium |
Water |
|
Flow |
4.94 L/Min |
|
Quantity of cylinders per shift for test |
40 pieces per 8 hours (65 L cylinder) |
|
Jinan shineeast fluid systems equipment Co., Ltd., is a leading manufacturer specialized in high pressure fluid and gas handling equipment, which located in jinan city, the capital of shandong province, and only three hours to Beijing by train.
In addition to offering a comprehensive range of pneumatic driven liquid pumps, air pressure boosters, pneumatic driven gas boosters, high pressure valves, fittings and accessories, power packages and hydraulic presses, we customize and build power packs and test rigs. Our main manufacturing locations are fully registered according to ISO9001: 2008 standard.
Shineeast also has a strong commitment to providing you with high quality products as well as excellent service and support. This helps to maintain shineeast as the best choice for all of your high pressure requirements.
Our products are widely used in machine tools, diesel engine, aerospace automobile manufacturing, household electrical appliances, shipbuilding, petrochemical, CNG vehicle rebuilding industries as well as high pressure testing and other fields where high pressure are required.
Guaranted with the reliable quality and after-sale service, we have built an enviable reputation in recent years. Many colleges, indurstries, as well as automobile indurstries have already established agreeable and mutual benefit business relationship with us.
Please contact us to discuss your requirements or visit our website for more information.
