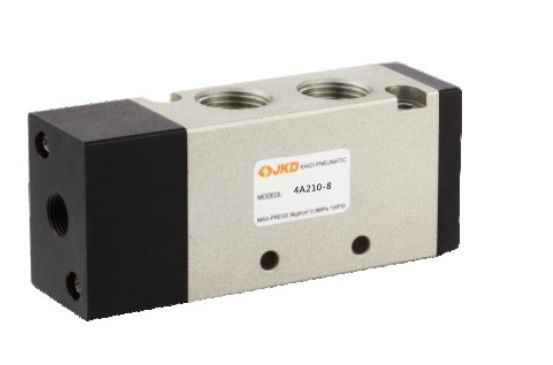

SOLENOID VALVE
4A SERIES
FEATURE
1.Structure in sliding column mode: good tightness and sensitive reaction
2.Three position solenoid valves have three kinds of central function for your choice
3.Double control solenoid valves have memory function
4.Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life
5.No need to add oil for lubrication
6.It is available to form integrated valve group with the base to save installation space
|
SPECIFICATION |
|
Model |
4A110 4A120 4A130 |
4A210 4A220 4A230 |
4A310 4A320 4A330 |
4A410 4A420 4A430 |
|
Fluid |
Air(to be filtered by 40um filter element) |
|
Acting |
Extrerior |
|
Port Size |
M5 PT1/8 |
PT1/8 PT1/4 |
PT1/4 PT3/8 |
PT3/8 PT1/2 |
|
Operating Pressure |
0.15~0.8mpa(21-114psi) |
|
Proof Pressure |
1.5MPA(215psi) |
|
Temperature |
"-20~70 |
|
Material Of Body |
Aluminum alloy |
|
Lubrication |
Not required |
|
Max frequency |
3 cycle/sec |
