4A Series Pneumatic Air Control Valve
Price: |
US $ 2.40/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,Western Union |
Regis's all-new directional valves are available in two-way, three-way configurations in port sizes from M5 to 1/2". Select either a direct-acting poppet or solenoid-controlled pilot operated balanced spool design. Spool valves are body ported but can be bolted to a parallel circuit manifold.
These electronic valves offer high flow in a small package, and are constructed of aluminum, stainless steel and thermoplastic materials. The four-way valves are also available in 3 position versions with either pressure center, closed center or exhaust center spool options.
Materials: Aluminum, Stainless Steel, Thermoplastic
Maximum Pressure: Vacuum to 150 psig (direct acting only); 20 to 125 psig (spool valves)
Response Time: Less than 20 ms
Mounting: Manifold standard.
Manual Override: Locking or non-locking
Electrical Connection: DIN terminal with LED Indicator or Wire Lead
Temperature Range: 0 to 65°C (32° to 150°F)
Seals: NBR

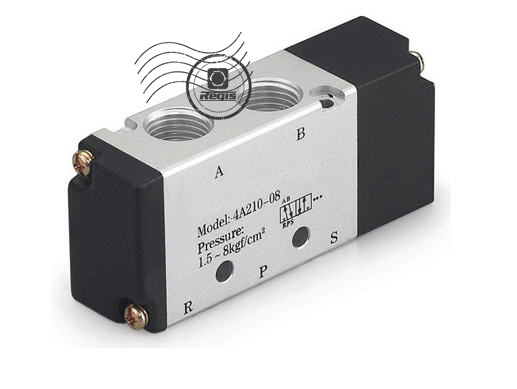

4A Series Air Control Valve
4A series air control valves are suitable for operating double or single acting cylinders in pneumatic control system. The medium is compressed air or neutral technical gases without voltages. The dimension is the same as 4V series valve.SPECIFICATION |
Model | 4A110 4A120 4A130 | 4A210 4A220 4A230 | 4A310 4A320 4A330 | 4A410 4A420 4A430 |
Fluid | Air(to be filtered by 40um filter element) |
Acting | Extrerior |
Port Size | M5 PT1/8 | PT1/8 PT1/4 | PT1/4 PT3/8 | PT3/8 PT1/2 |
Operating Pressure | 0.15~0.8mpa(21-114psi) |
Proof Pressure | 1.5MPA(215psi) |
Temperature | "-20~70 |
Material Of Body | Aluminum alloy |
Lubrication | Not required |
Max frequency | 3 cycle/sec |
Prod Model: |
4A100, 4A200, 4A300 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Valve Type: |
Airtac |
