| Price: | US $ 5/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Piece |
| Pay Type: | T/T,Western Union |

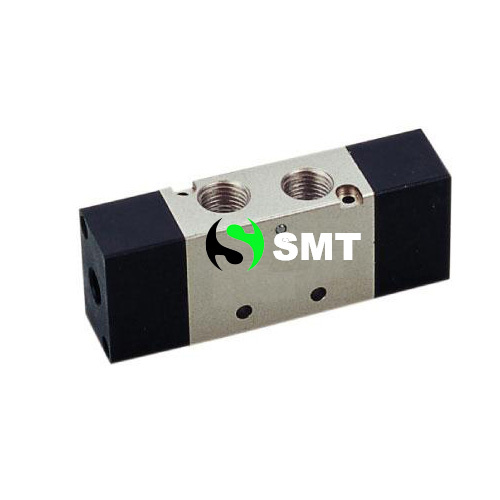

4A series solenoid valve
1. Sizes: 1/8 to 1"
2.Type: 2/3 or 2/5 or 3/5
3.Working Medium: Air 40M filteration
4.Working temperature: -5 to 60
5.Orifice: 1.5mm
6.Pressure: 0 to 8 Bar
7.Protective class: IP65
8.Max acting frequency: Ten times per second
9.insulativity: F class
10.Excitation: 0.05 s
| Model | Position Number |
Port Size (G/NPT) |
Working-pressure Range (MPa) |
Highest Action Frequency | Effective Sectional Area |
| 4A110-M5 | 2 position 5 way | M5 | 0.15 - 0.8 | 5 Cycle/Sec | 12mm²(CV=0.67) |
| 4A120-M5 | |||||
| 4A130-M5(C.E.P) | 3 position 5 way | 9mm²(CV=0.5) | |||
| 4A110-06 | 2 position 5 way | 1/8 ″ | 12mm2 (CV=0.67) | ||
| 4A120-06 | |||||
| 4A130-06(C.E.P) | 3 position 5 way | 9mm²(CV=0.5) |
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Type': | Normal Open and Normal Close |
| Size: | 1/8 to 1" |
| Pressure: | 0 to 8 Bar |
| Temperature: | 0 to 150 |
| Seal: | NBR, Viton, Ptfm |
| Voltage: | 12, 24, 110, 220 |
| Type: | Distribution of Direct Acting |
| Connection Form: | Thread |
| Power Supply: | AC Solenoid Valve |
