Valve Manufacturers and Factories

Home Valve Products 4A210-08 Air Control Valve

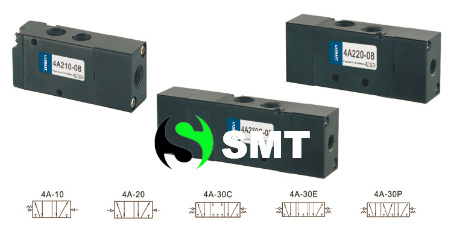

4A210-08 Air Control Valve

4A210-08 Air Control Valve
Price: US $ 4.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T,Western Union
Model No.: 4A220-08, 4A320-10, 4A110-06, 4A210-08, 4A310-10, 4A410-15

Working Medium: 40 Micron Filtered Air
Working Pressure: 0.15~0.8MPa
Max Pressure Resistance: 5~50º C

1) All Aluminum alloy
2) Valve body made by CNC.

Specificaitons  of 4v Series Solenoid Valve (2 Position 5 port single control)

Model4V110-M54V110-064V210-064V210-084V310-084V310-104V410-15
Working MediumClean Air (40 Micrometer Filteration)
Ways2 Position 5 Port
Acting TypeDirect Acting
Joint SizeImport=M5
Export=M5
Exhaust=M5
Import=1/8
Export=1/8
Exhaust=1/8
Import=1/4
Export=1/4
Exhaust=1/8
Import=1/4
Export=1/4
Exhaust=1/4
Import=3/8
Export=3/8
Exhaust=1/4
Import=1/2
Export=1/2
Exhaust=1/2
Sectional Area5.5mm2(CV=0.31)12mm2(CV=0.67)14mm2(CV=0.78)16mm2(CV=0.89)25mm2(CV=1.39)30mm2(CV=1.67)50mm2(CV=2.79)
Working Pressure0.15~0.9Mpa
Guarantee Pressure1.2Mpa
Working Temperature-5~60°C
Voltage Range-15%~10%
Heat Resistant GradeB
Protective ClassIP65(DIN40050)
Coil TypeDIN Type,Flying Leads
Max Acting Frequency5 Times/s4 Times/s3 Times/s
Why choose us?


(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.

(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.

(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.

(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
Prod Model: 4A210-08
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type': Normal Open and Normal Close
Size: 1/8 to 1"
Pressure: 0 to 8 Bar
Temperature: 0 to 150
Seal: NBR, Viton, Ptfm
Voltage: 12, 24, 110, 220
Type: Distribution of Direct Acting
Connection Form: Thread
Valve Structure: Pilot Piston Structure
Power Supply: AC Solenoid Valve
Application: Industrial Usage
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.

SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.

SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "

SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.

SMART PNEUMATIC hopes to work together with you, developing in parallel!
