Product Description: Pneumatic Foot ValveSpecification of China Foot Valve-
4F Series Pneumatic Foot Valve:
Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG |
Operation Type | Direct Drive Type |
Fluid Medium | 40 Micron Filtered Air |
Position and Way Number | Two-Position Five Way |
Working Pressure | 0--0.8Mpa(0--114psi) |
Proof Pressure | 1.2MPa(174psi) |
Working Temperature | 5--50ºC |
Port Size | Air Inlet=Air Outlet=Exhaust=G1/4 |
Material | Aluminium Alloy |

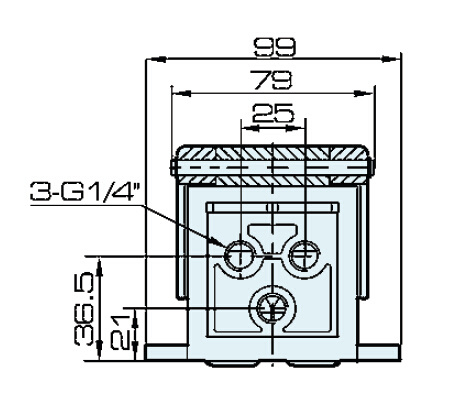

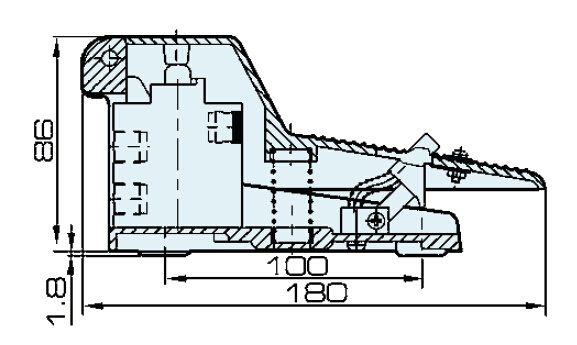

Dimension of
China Foot Valve Supplier-4F210-08L Pneumatic Foot Valve:
Structure of
China Foot Valve Manufacturer-4F210 Pneumatic Foot Valve:
| No. | Item | No. | Item |
| 1 | Pin | 11 | Bottom Cover |
| 2 | Screw | 12 | C Clip |
| 3 | Spring | 13 | Silencer |
| 4 | E Clip | 14 | Base |
| 5 | Pedal | 15 | Pedal Spring |
| 6 | Spool | 16 | Washer |
| 7 | O-Ring | 17 | Screw |
| 8 | O-Ring | 18 | Base Pad |
| 9 | Front Cover | 19 | Screw |
| 10 | Piston | 20 | Base Pad |
