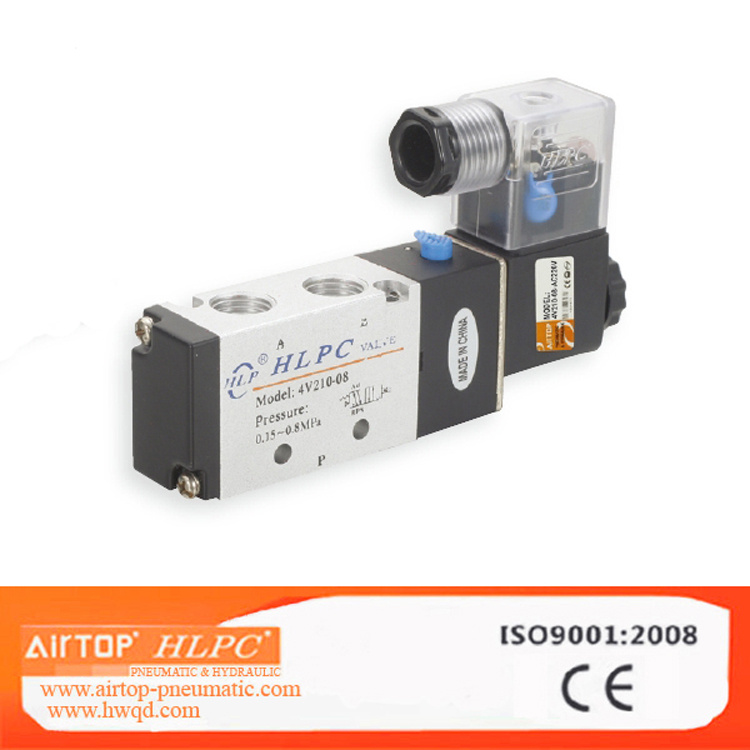

4V 100-400 Series Pneumatic Solenoid Valve/Directional Valve

4V 100-400 Series Pneumatic Solenoid Valve/Directional Valve
Price: US $ 2-50/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
Ordering Code:

4V - 2 - 10 - 08 - B - AC220V - W

4V: Specification Code 4V: Two(Three)-position Five-way Solenoid Valve 4A: Two(Three)-position Five-way Pneumatic 3V: Two-position Three -way Solenoid Valve 3A: Two-position Three way Pneumatic;

2: Series Code 100 Series 200 Series 300 Series 400 Series;

10: Coil and Places 10: Single-head Double-position 20: Double-head Double-position 30C: Double-head Three-position Close Type 30E: Double-head Three-position Exhaust Type 30P: Double-head Three-position Pressure Type

08: Joint Pipe Bore 06: G1/8 08: G1/4 10: G3/8 15: G1/2;

B: Joint Pipe Form and Initial State Blank: Pipe Connection Type B: Two-position Five-way Plate Connection Type Three-position Five-way Plate Connection Type NC: Two-position Three -way Normal Close Type NO: Two-position Three way Normal Open Type;

AC220V: Standard Voltage DC12V DC24V AC24V 50HZ/60HZ AC110V 50HZ/60HZ AC220V 50HZ/60HZ AC380V 50HZ/60HZ;

W: Wiring Form Blank: Standard Connector LD: Brown with Lighting Connector LD1: White with Lighting Connector W: Lead Wire Type;

Model: 4V410-15 4V330C-08 4V430C-15 4V430E-15 4V430P-15 4A410-15 4A330C-08 4A430C-15 4A430E-15 4A430P-15;

Position Number: Two-position Five-way Three-position Five-way;

Effective Sectional Area: 50mm² 30mm² ;

Joint Pipe Bore: Air Inner=Air Outlet=Exhaust=G1/2;

Working Medium: 40 Micron Filtered Air;

Motion Pattern: Inner Guide Type;

Working Pressure: 0.15~0.8MPa;

Max. Pressure Resistance: 1.2MPa;

Operating Temperature: 5~50° ;

Voltage Range: ± 10%;

Power Consumption: AC: 5.5VA DC: 4.8W;

Insulation & Protection Class: F. IP65/F Class. IP65;

Wiring Form: Lead Wire or Connector type;

Highest Action Frequency: 20 Cycle/Sec;

Shortest Excitation Time: 0.05Second.

Prod Model: 4V 100-400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Pressure Resistance: 1.2mpa
Type: Pilot Operated
Connection Form: Thread
Valve Structure: Direct-Acting Piston Structure
Application: Industrial Usage
Standard: DIN, L, W, E
Power Supply: AC or DC
Material: Aluminum
Ningbo AirTOP Pneumatic Hydraulic Co., Ltd.(AirTOP) specializes in manufacturing pneumatic and hydraulic components, including pneumatic cylinders, solenoid valves, directional valves, mechanical valves, FRL units, pneumatic fittings, PU tubes, air guns, power chuck, hydraulic cylinders, standard jaw etc.

Our factory - Hongwei Pneumatic & Hydraulic Kit Factory (HLPC) was established in 1988.Over twenty years' manufacturing experience in pneumatic and hydraulic field laid solid foundation for excellent quality.ISO9001:2008 Quality System and CE Certifications ensure every component to be precise, accurate and durable.

AirTOP has imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines, ultrasonic washing machines etc.Seals are from American Parker, Japan and Germany, pursing excellent quality and developing various products for global market.

Today, AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market.AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.

"Quality Reliable, Credit First, Customers Uppermost" is AirTOP's persistent and permanent pursuit.AirTOP will continuously provide our customers with the highest quality/price rate products and the best service, supporting our agents grow in this competitive world with the most favorable terms and making our end-users satisfied and assured by using our products.AirTOP sincerely hopes that we can keep up with the times of the development paces of pneumatic industry and world automation, continuously pursuing excellent quality and developing new products for our customers in the world automation industry.
